30
Kiev Mercedes Sprinter
NOTE: Use PAG oil to lubricate the o-ring
before assembly.

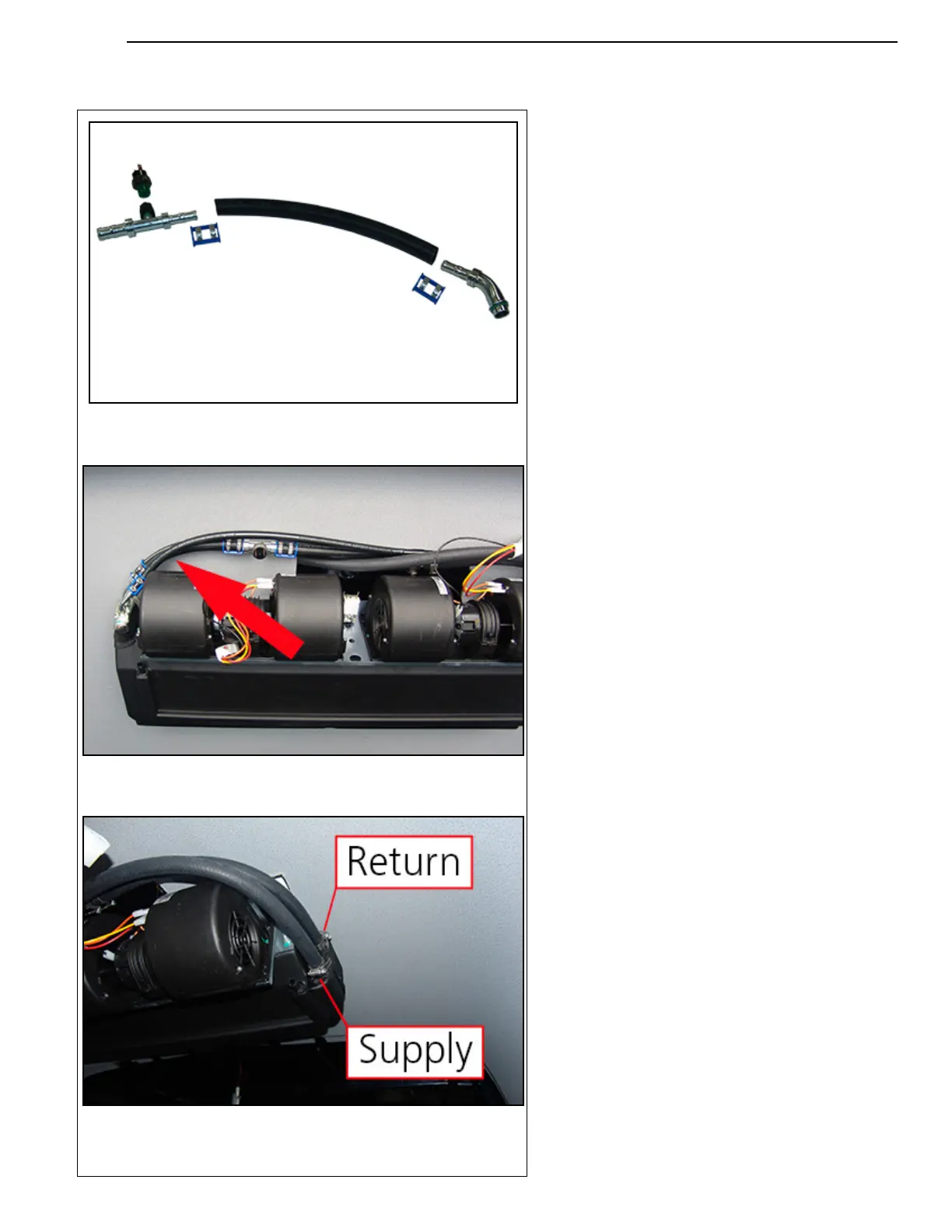

54. Using a short section of #12 hose, a 45º #12
fitting, the low-pressure switch splice fitting,
and the low-pressure switch, make a low-
pressure switch hose.
55. Connect the low-pressure hose and, using a
#6 45º fitting, the high-pressure hose to the
Kiev TXV using the TXV plate. Connect the
low-pressure switch electrical connector.
56. Using the bleeder valve and a short section of
coolant hose, connect the supply and return
hoses to the Kiev unit.
