4.4FuelLine
OnlyWebastosuppliedFuelLineshouldbeusedforthefueldeliverytotheheater.Useofanyotherfuellinewill
resultinma lfunctionoftheheaterandwillvoidwarranty.Toensurecorrectconnections,rubberhoseconnectors,
10mmhoseclampsandfuellinearesuppliedinthekit.














IncaseyouarenotabletousethestandpipeshownFig21(Topmounttype),Webastocansupplyanotheroption
(Fig24bottommounttype).

Onsomemotor‐homevehiclechassis’anaddition alfactoryfuelspigotmaybeavailableatthefuelsenderunit,
Webasto
cansupplyaconnectionkit(Fig25)tosuitthereforeeliminatingtheneedforastand‐pipeorpick‐up.



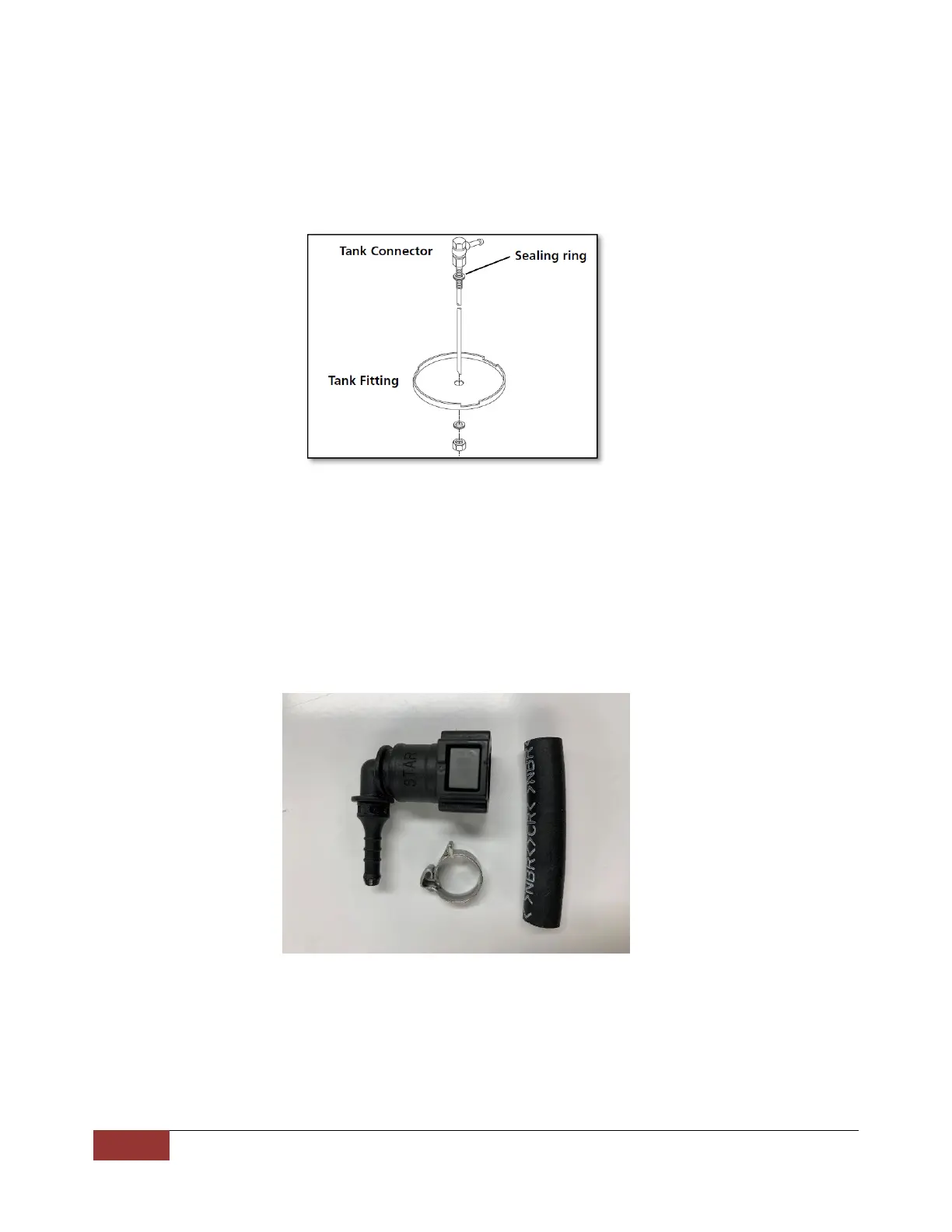

Fig24
–
Installingfuelextractingdevice‐BottomMount
Fig25–OptionalSAEConnectorforinstallingonan
additionalfactoryfuelspigot
