Webasto DBW 2016 Installation Instructions

DBW 2010 / 2016 Installation
33

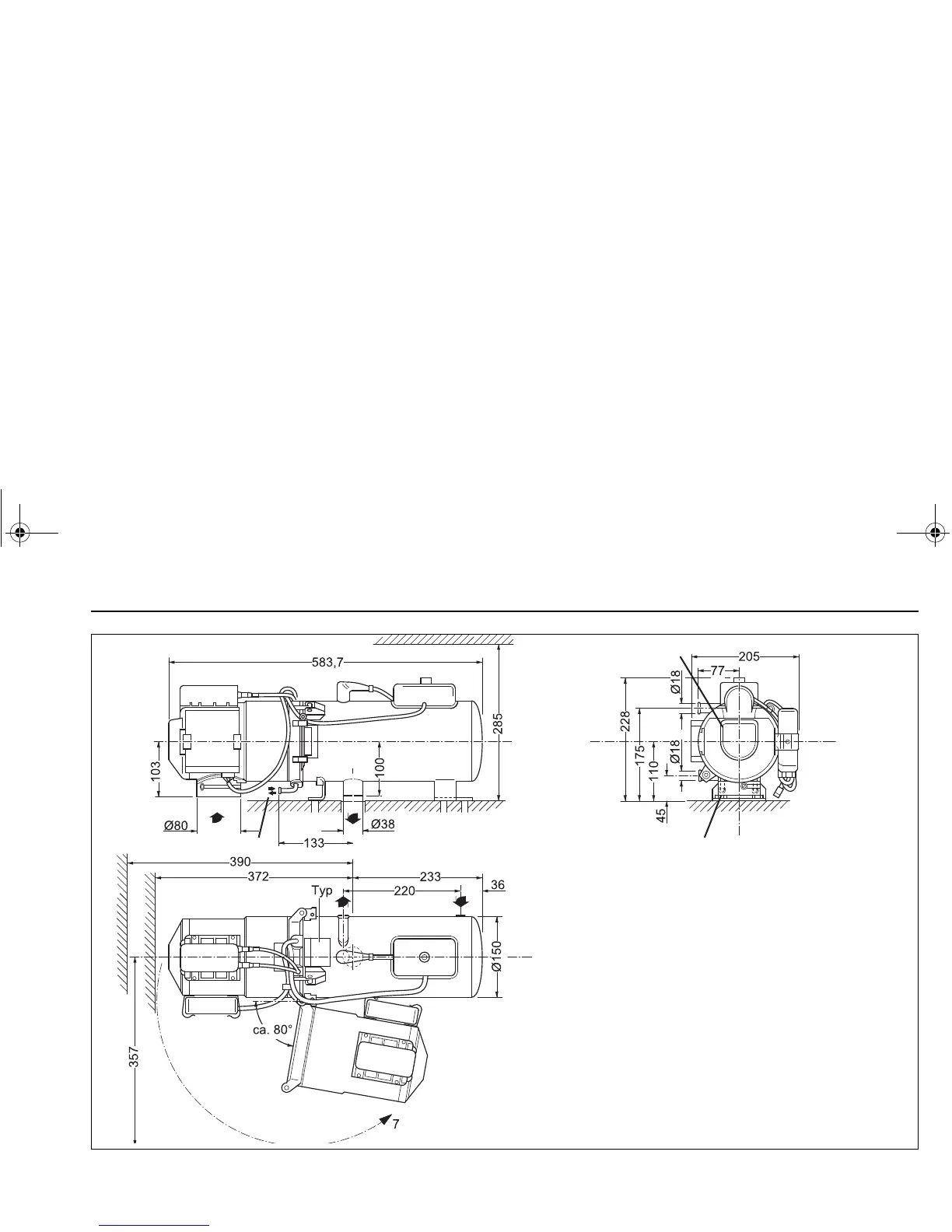

Fig. 1: Dimensions of DBW 2010 / 2016 heaters
3,4
1
5
8
2
6
8
6
1 Combustion air intake
2 Exhaust outlet
3 Fuel intake
4 Fuel discharge
5 Space required to remove the burner chamber
6 Coolant intake
7 Max. swivelled burner
8 Coolant outlet
