Installation DBW 2010 / 2016
34
3.2. To install DBW 2010 / 2016 heaters
The heater may be secured either with four M8 screws or with four bolts
and nuts (see Figure 3).
3.3. Model plate
The model plate must be protected from damage and must be clearly
legible when the heater is installed (otherwise a duplicate model plate
must be used).

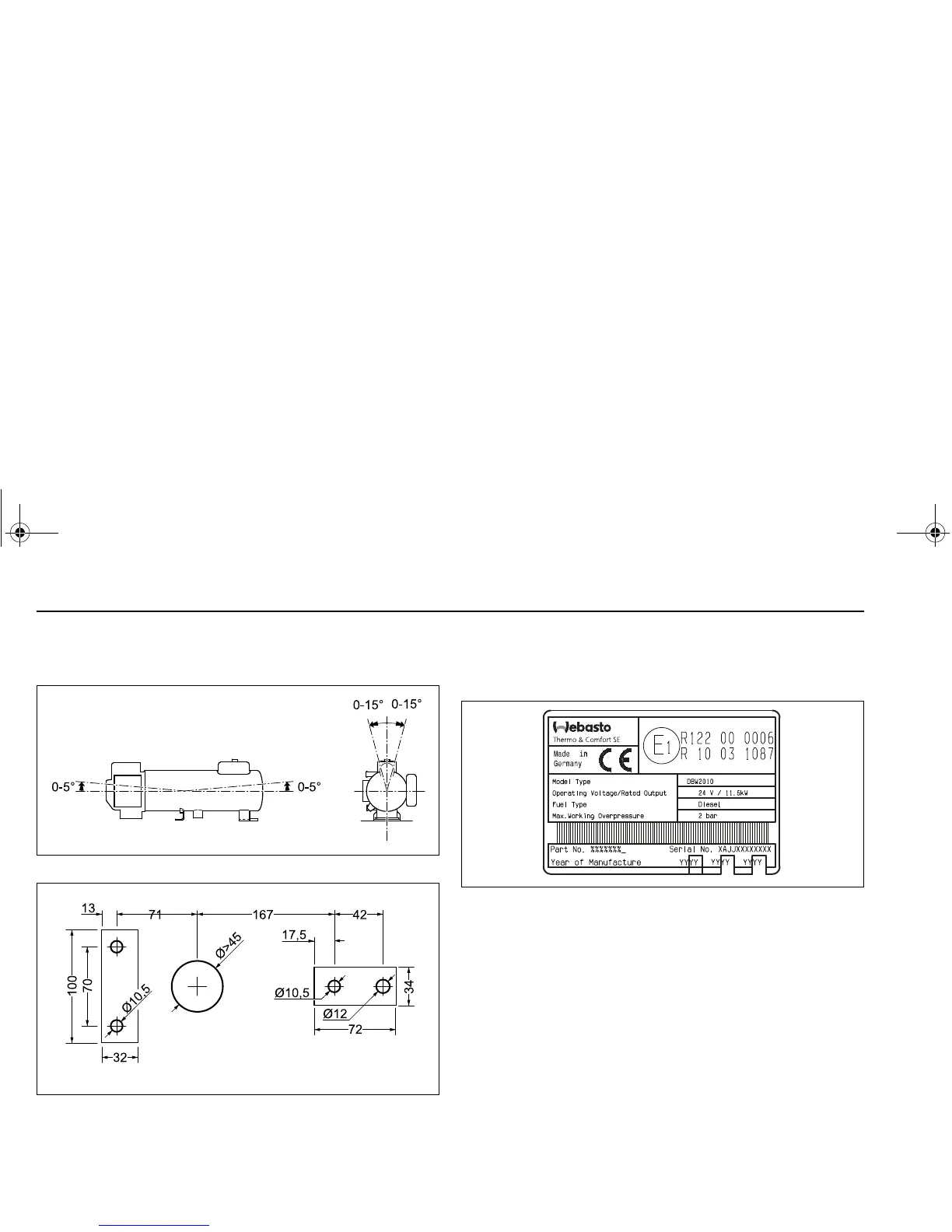

Fig. 2: Position
Fig. 3: Hole pattern
Fig. 4: DBW 2010 model plate (DBW 2016 similar)
