Installation example in a car
Thermo Top Z / Thermo Top C
36
6 Installation example in a car

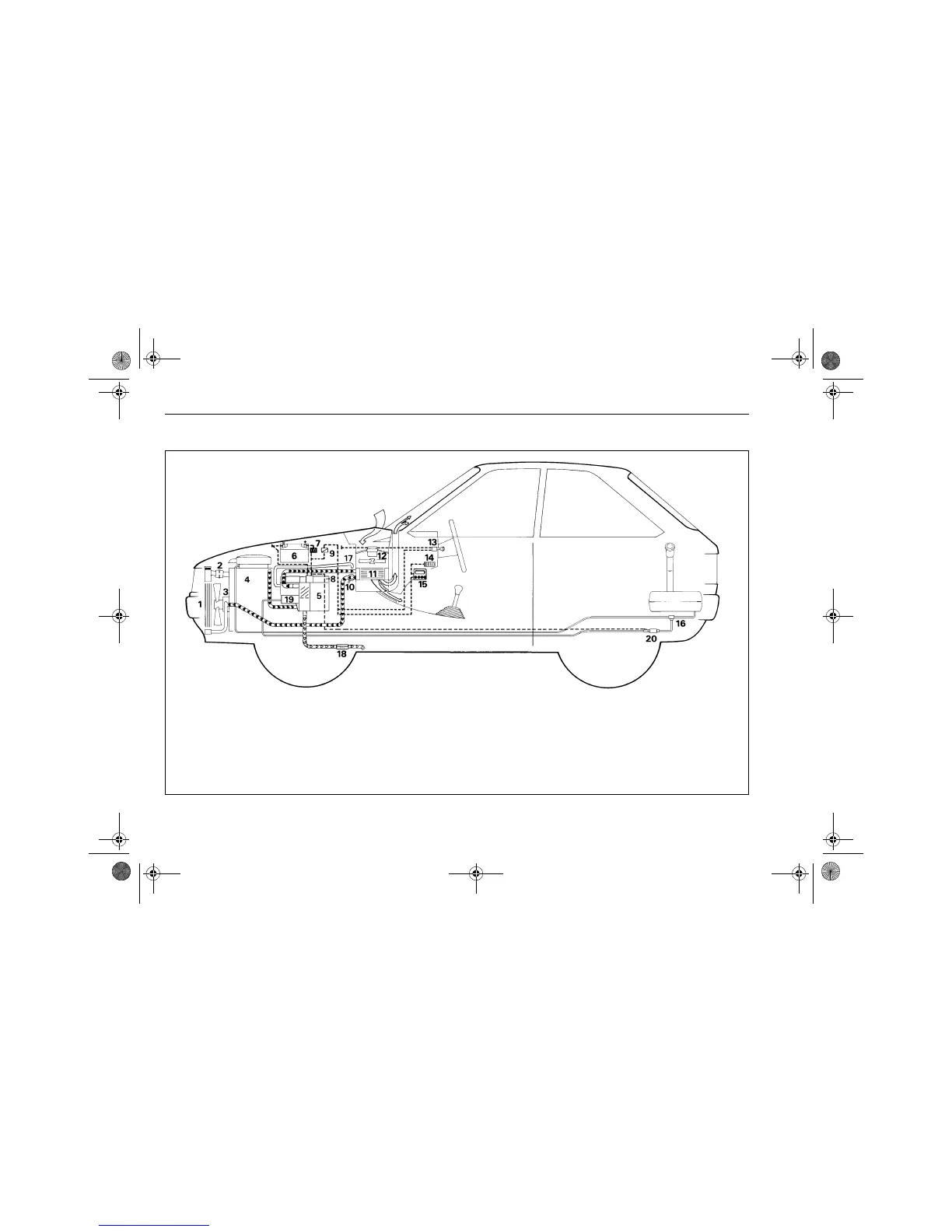

Fig. 4: Installation example for a
Thermo Top Z / Thermo Top C
heater in a car
1 Radiator
2 Cooling water thermostat
3 Water pump (for the car engine)
4 Car engine with standard equipment
5 Water heater
6Battery
7 Fuse holder
* Supplied in the upgrade kit
8 Control module (in the heater)
9 Relay (for the car’s fan) *
10 Regulating valve for car’s heating system
11 Heat exchanger, car’s heating system
12 Fan for car’s heating system
13 Switch for car’s heating system fan
14 Fuse strip in the car
15 Timer
16 Fuel extractor
17 Intake silencer,
combustion air intake line
18 Exhaust silencer
19 Circulating pump (additional heater only) *
20 Fuel metering pump
TZea_02_gb_e.fm Seite 36 Montag, 3. Februar 2003 2:09 14
