Thermo Top Z / Thermo Top C
Electrical connections (additional heater)
45
11 Electrical connections (additional heater)
11.1. Control module / heater connection
Make the electrical connections to the heater as shown in Figure 16.

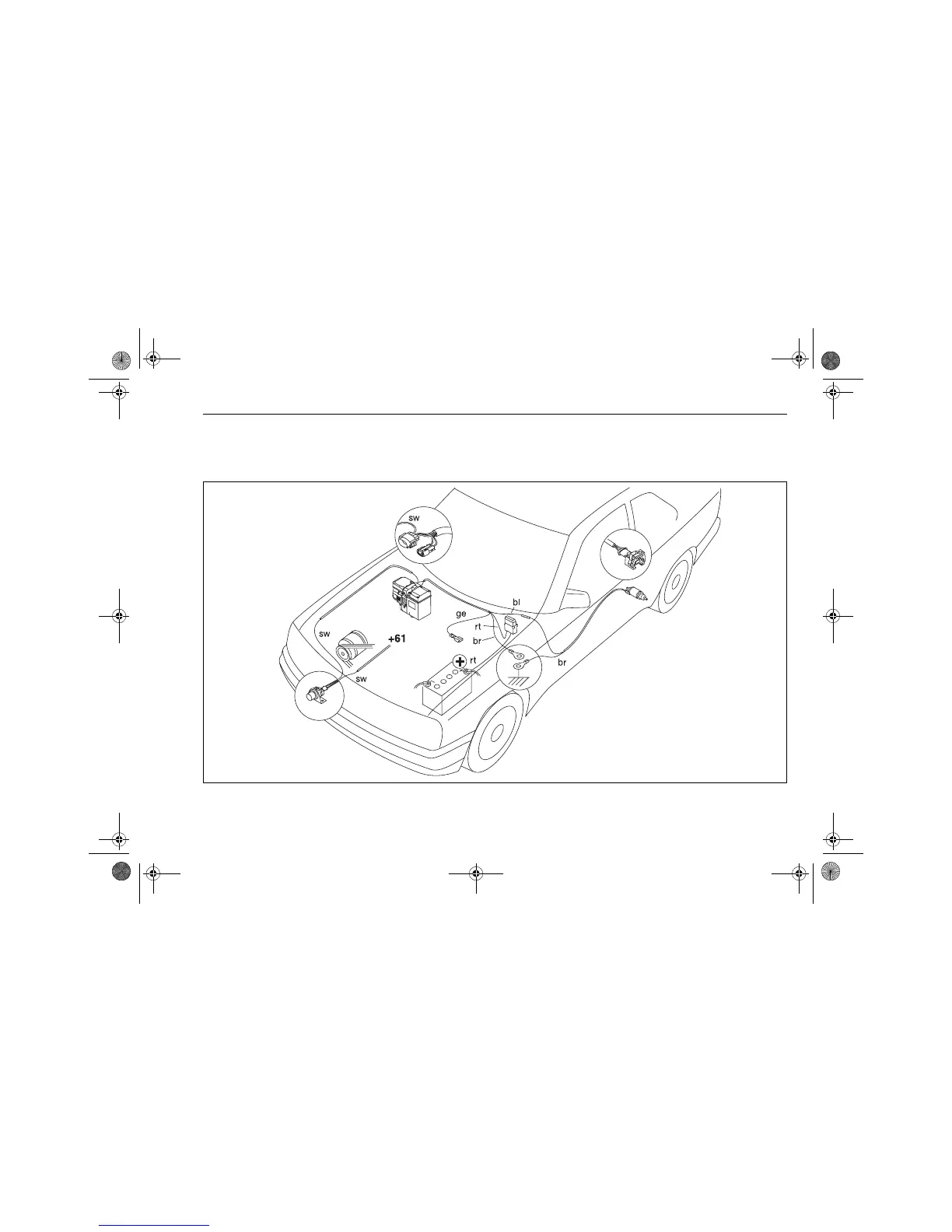

Fig. 15: Electrical connections for the
Thermo Top Z
additional heater
TZea_02_gb_e.fm Seite 45 Montag, 3. Februar 2003 2:09 14
