Thermo Top Z / Thermo Top C
Fuel system integration (additional heater only)
41
8.3. Connecting two pipes with a hose
The correct procedure for connecting fuel lines with hosing is shown in
Figure 9.
Ensure that there are no leaks.
8.4. Metering pump
The metering pump is a combined delivery, metering and shut-off
system and is subject to certain installation criteria (see Figures 7, 10
and 11).

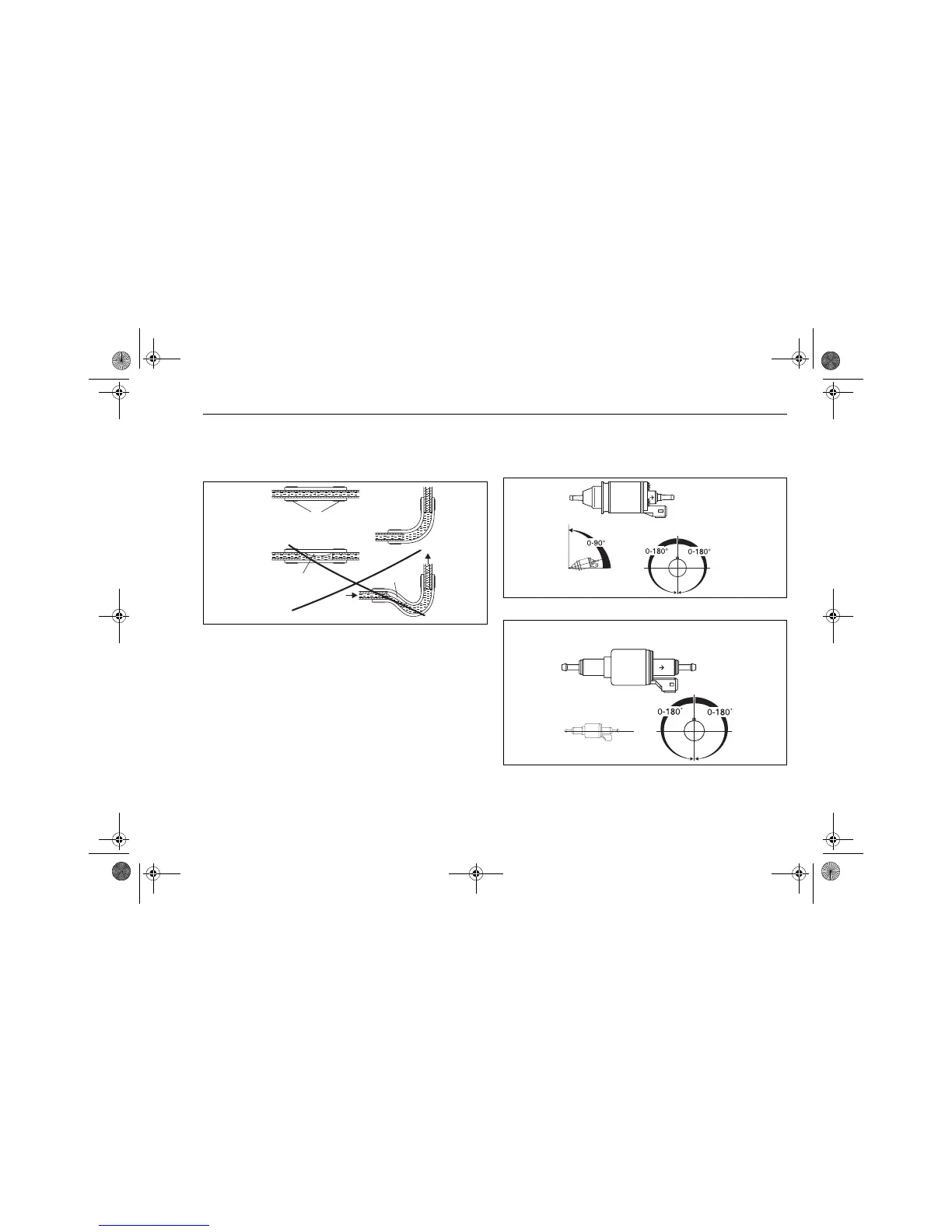

Fig. 9: Pipe / hose connection
Clip
Bubble
Correct
Wrong
Bubble
Fig. 10: Metering pump DP 2
Installation position and attachment
Fig. 11: Metering pump DP 30
Installation position
Preferably
15° - 90°
Part No. 876 84 . = Diesel
Part No. 893 72 . = For all fuels
