Thermo Top Z / Thermo Top C
Installation location
33

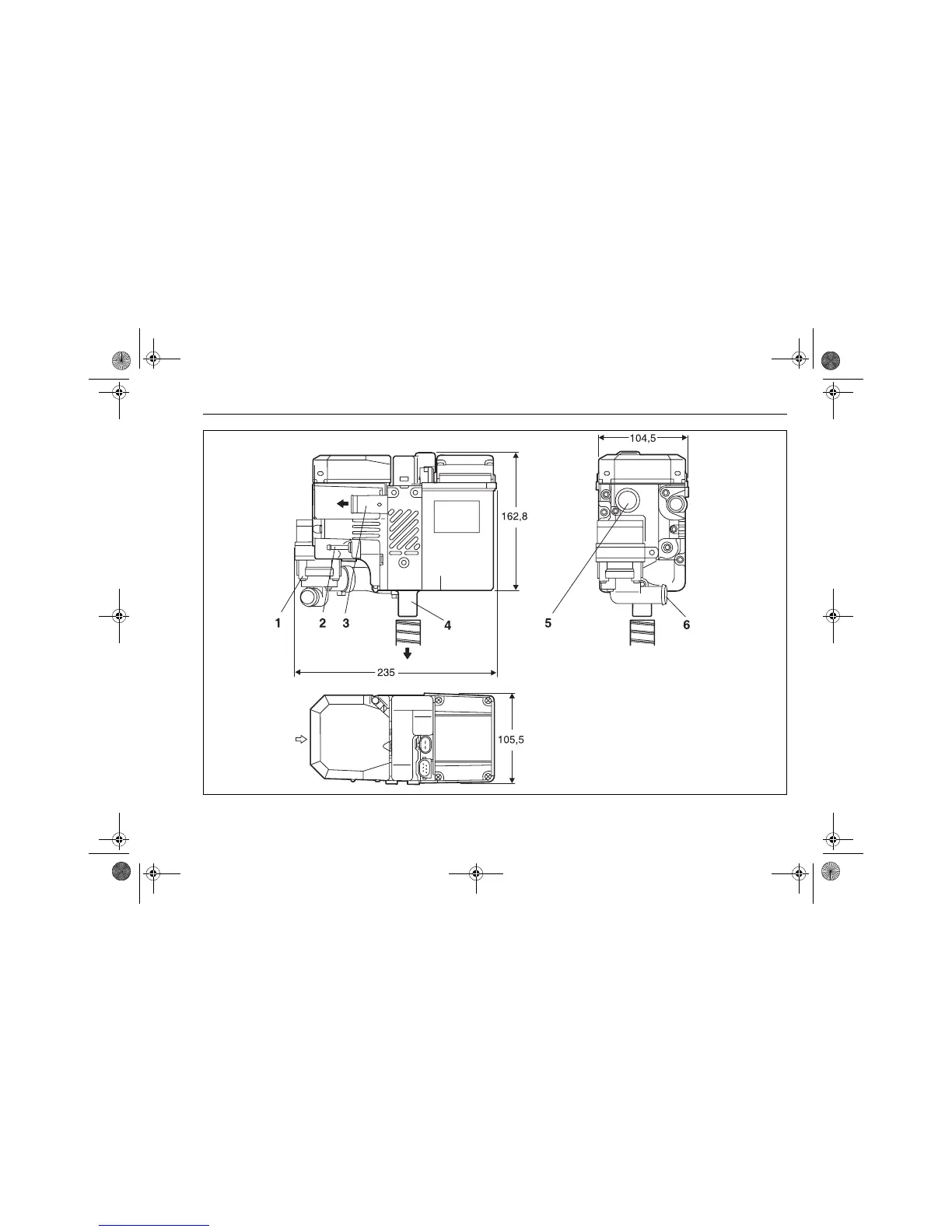

Fig. 2:
Thermo Top Z / Thermo Top C
installation drawing
1 Circulating pump (optional with the Thermo Top Z)
2 Fuel filler neck
3 Water outlet port
4 Exhaust outlet port
5 Combustion air inlet
6 Water inlet port
