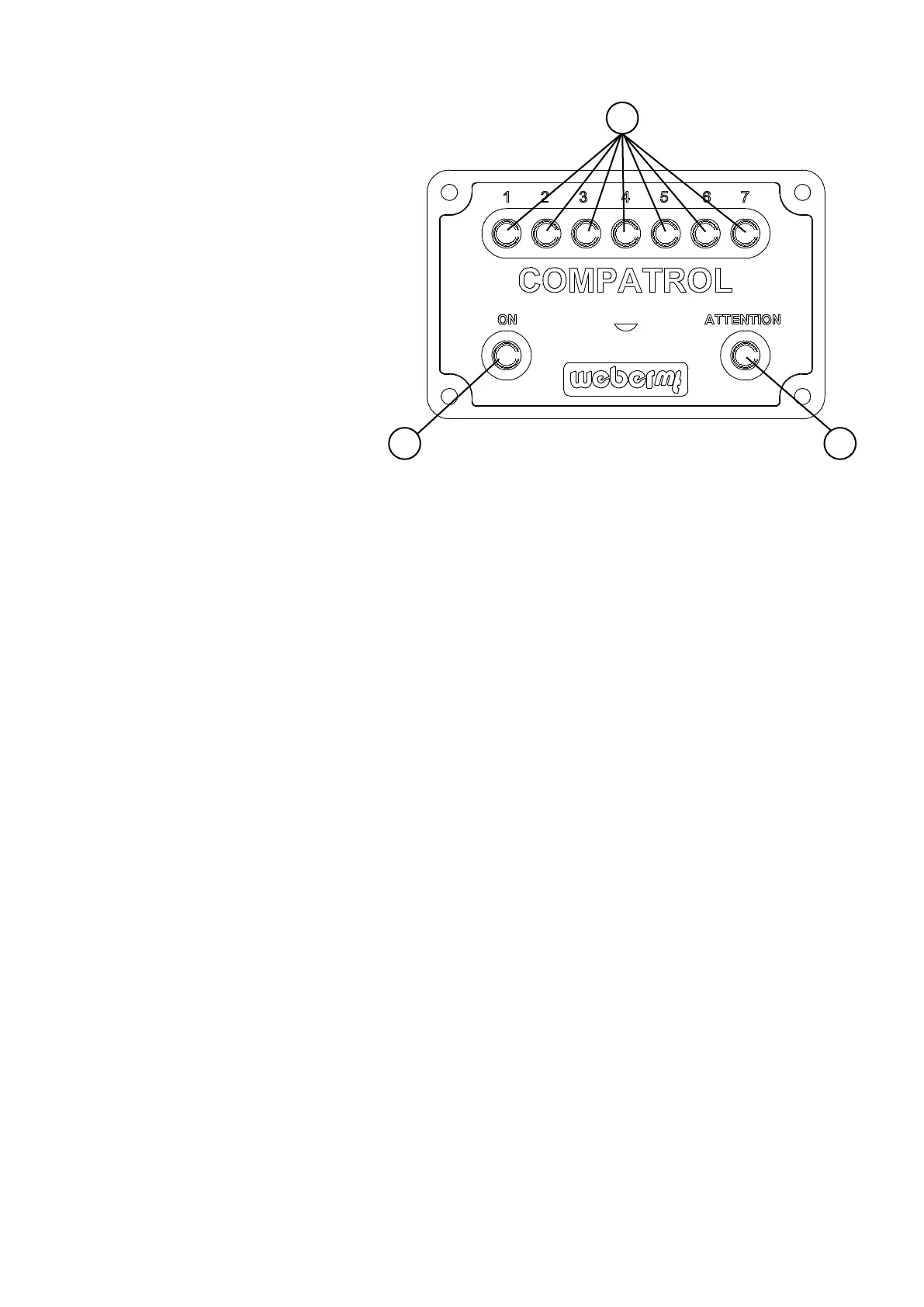

The COMPATROL compaction control system
1 Operational status indicator
(Green)
This indicator comes on as soon as the proper operating
frequency has been reached and signals that the compaction
control system is operational.
If the indicator ashes constantly, the machine is operating
with the wrong operating frequency.
2 Compaction indicator (Yellow) The LEDs 1 – 7 indicate the achieved level of soil compaction.
The number of lit LEDs increases with the level of compaction.
If no additional LED comes on after another pass over the
same spot, the maximum level of compaction has been
reached.
3 Warning light (Red) The warning light warns of operation on soils that are too hard.
These types of soil cannot be compacted further with the
machine type used and may result in damage to the machine.
