ANNUAL MAINTENANCE
BURNER TUBE CLEANING
OR REPLACEMENT
Confirm that Barbecue Is Off and Cool
A) Check that the burner control knob is in the off
(
)position. Check by pushing burner control knob in
and turning it clockwise until it stops.
B) Disconnect the cylinder.
C) Remove the lid.
D) Remove cooking grates.
Remove Burner Tube
You will need: A 3/8" nut driver.

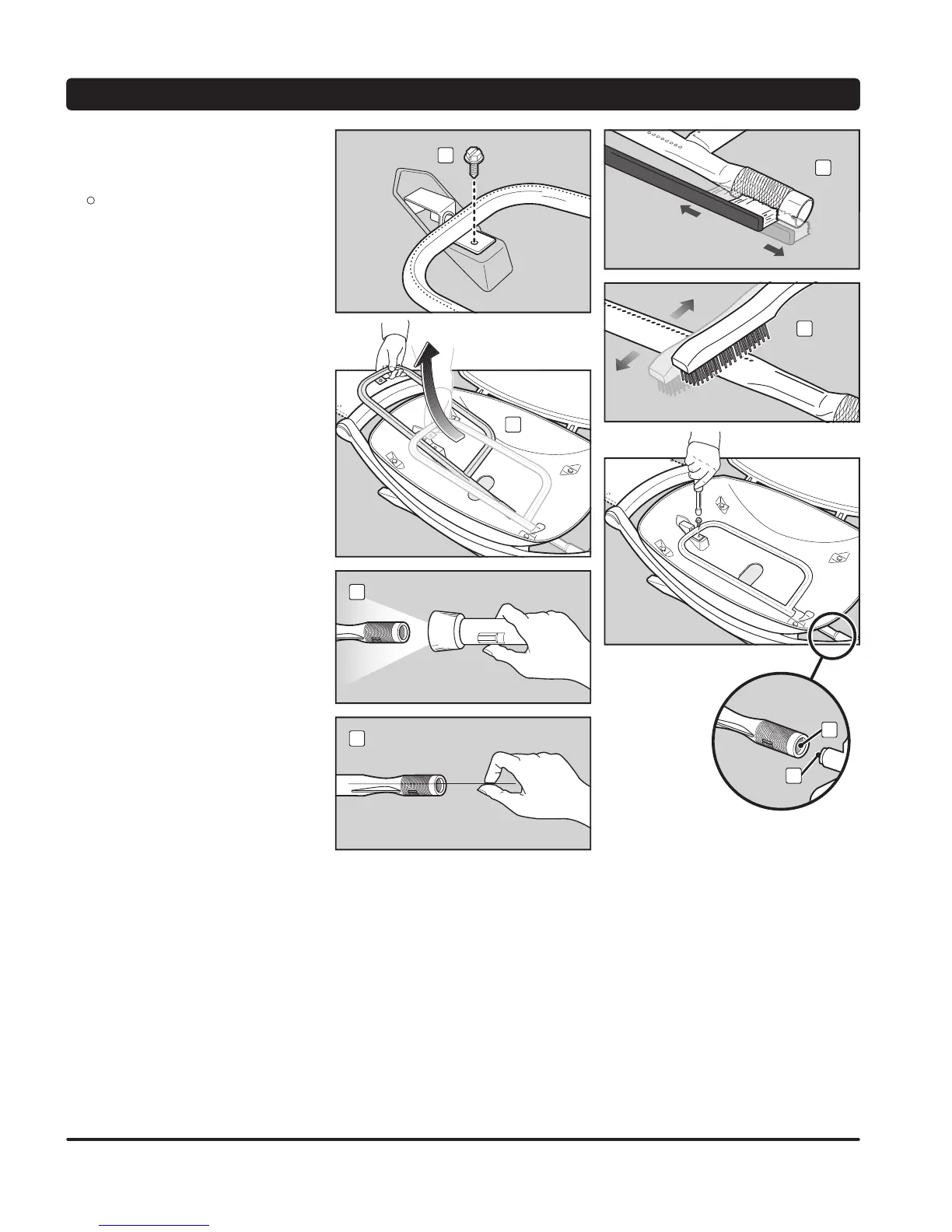

A) Remove the screw that holds the burner tube to the
cookbox(1).
B) Carefully slide the burner tube out from the
cookbox(2).
Clean Burner Tube
You will need: A torch, a wire (a straightened-out coat
hanger), a suitable stainless steel bristle brush, and a soft
bristle brush (toothbrush).
A) Look inside the burner tube with a torch(3).
B) Clean any debris or blockage from the inside of the
burner tube with the wire(4).
C) Check spider/insect screen at the end of the burner
tube and clean it using the soft bristle brush(5).
m CAUTION: Do not clean the spider/
insect screen with hard or sharp tools.
Do not dislodge the spider/insect
screen or enlarge the screen openings.
D) Use the steel bristle brush to clean the outside of the
burner tube. This is done to make sure all burner ports
(openings) running along the length of the tube are
fully open(6).
m CAUTION: Do not enlarge the burner
ports when cleaning.
Reinstall Burner Tube
You will need: A 3/8" nut driver.
A) Carefully slide the burner tube back into hole in right
side of cookbox, aligning burner tube opening with
valve orifice.
B) Reinstall screw that holds the burner tube to the
cookbox.
m CAUTION: The burner tube opening (7)
must be positioned properly over the
valve orifice (8).
m WARNING: You should check for gas
leaks every time you disconnect and
reconnect a gas fitting.
C) Reinstall the lid.
D) Replace cooking grates.
