Weber 1000 - Weber Q 2000 Exploded View

WWW.WEBER.COM
®
8
WEBER
®
Q
®

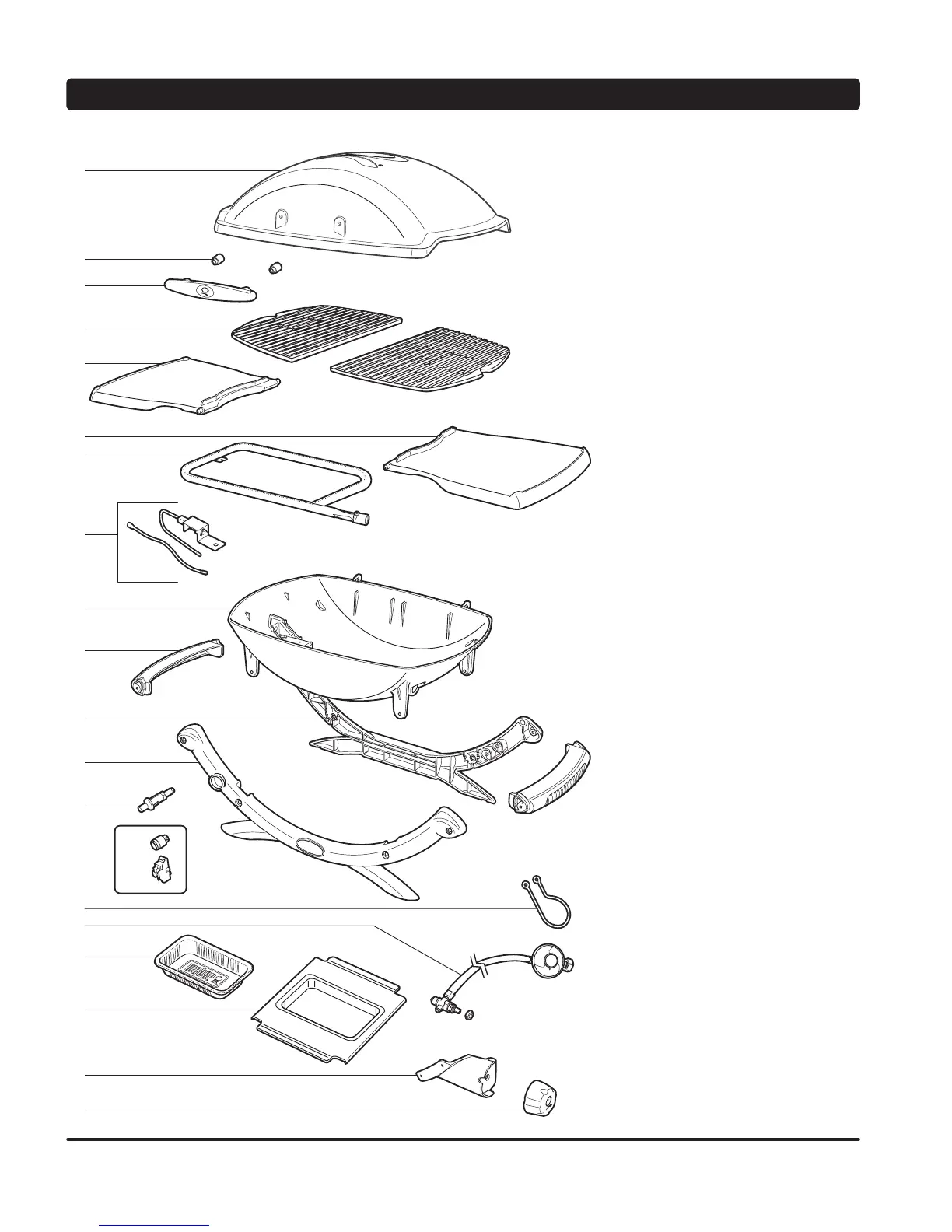

2000 EXPLODED VIEW
1. Lid
2. Handle Spacer
3. Handle
4. Cooking Grate
5. Left Side Table
6. Right Side Table
7. Burner Tube
8. Igniter Electrode Assembly
9. Cookbox
10. Carrying Handle
11. Rear Cradle
12. Front Cradle
13. Push Button Igniter /
Electronic Igniter Button & Module
14. Hose Bracket
15. Valve, Hose and Regulator Assembly
(Hose and Regulator may not be included)
16. Disposable Drip Pan
17. Removable Catch Pan
18. Control Bracket
19. Burner Control Knob
1
19
18
17
16
13
12
11
10
9
8
7
6
5
4
3
2
Q2000_EURO_LP_041613
14
15
13
