12
REINSTALL CONTROL
PANEL

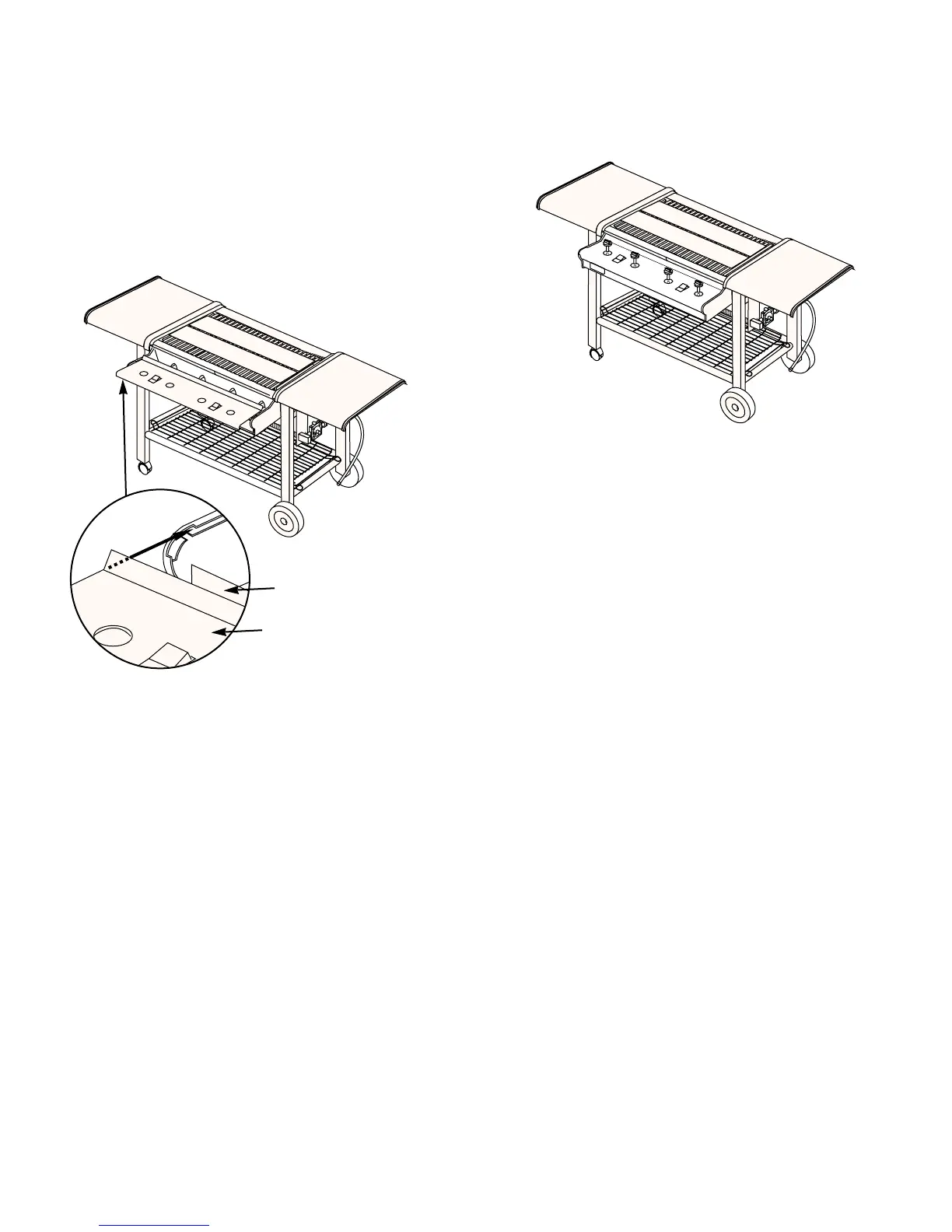

Figure 23
(a)
Pull igniter buttons up until they stay in the up position.
Place the control panel into the grooves on either side of
the front of the cooking box. Push the control panel into
place, using even pressure while pushing. Figure 23 (a).
Use your fingers to lift the front edge of the control panel
slightly and set it into the recess on both sides of the
cooking box. Figure 23.
Front Panel
Control Panel
REINSTALL BURNER
CONTROL KNOBS
Figure 24
Push on the burner control knobs. Figure 24.
REFER TO OPERATING
GUIDE BEFORE LIGHTING
BARBECUE
