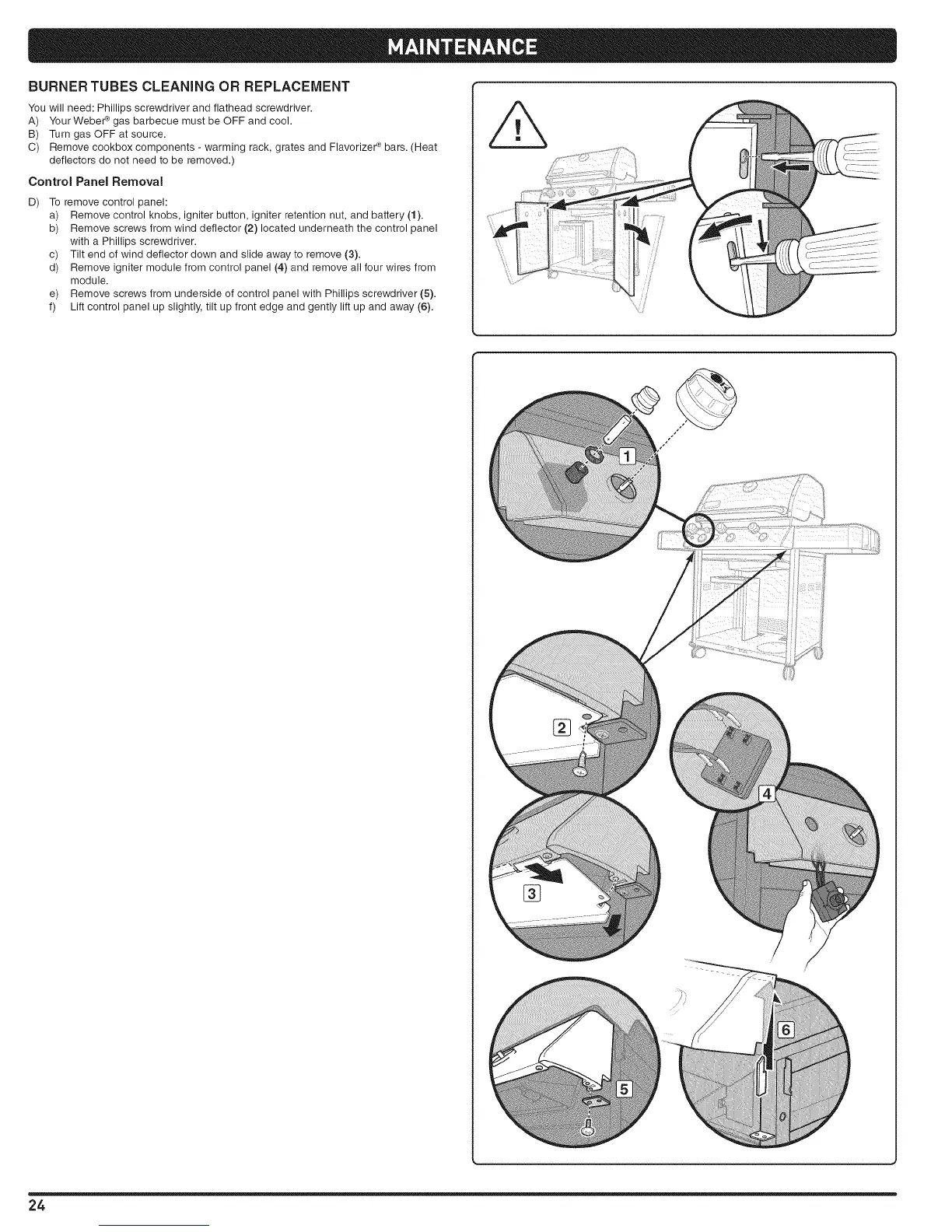

BURNER TUBES CLEANING OR REPLACEMENT
You will need: Phillips screwdriver and flathead screwdriver.
A) Your WebeP gas barbecue must be OFF and cool.
B) Turn gas OFF at source.
C) Remove cookbox components - warming rack, grates and FlavorizeP bars. (Heat
deflectors do not need to be removed.)
Control Panel Removal
D) To remove control panel:
a) Remove control knobs, igniter button, igniter retention nut, and battery (1).
b) Remove screws from wind deflector (2) located underneath the control panel
with a Phillips screwdriver.
c) Tilt end of wind deflector down and slide away to remove (3).
d) Remove igniter module from control panel (4) and remove all four wires from
module.
e) Remove screws from underside of control panel with Phillips screwdriver (5).
f) Lift control panel up slightly, tilt up front edge and gently lift up and away (6).
24
