9
Getting Started
LPG Cylinder Installation
&LeakChecking
Connect the Regulator to the Cylinder
1) Check that all burner control knobs are in the
o position. Check by pushing in and turning
knobs clockwise.
2) Identify your regulator type and connect the
regulator to the LPG cylinder by following the
appropriate connection instructions.
Note: Confirm that the LPG cylinder valve or regulator
lever is closed before connecting.

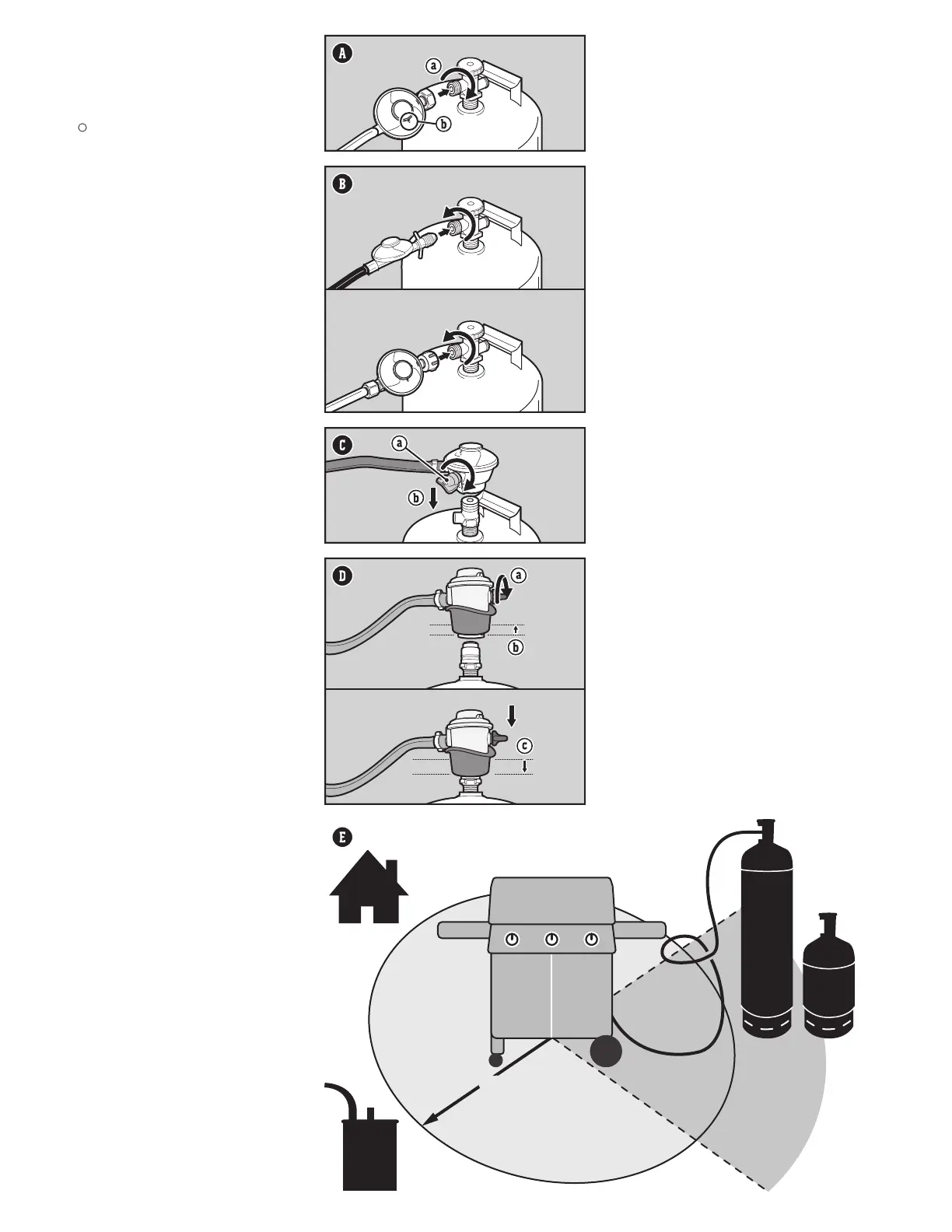

Connect by Turning Clockwise (A)
Screw regulator onto cylinder by turning fitting
clockwise (a). Position the regulator so that the
venthole (b) faces down.
Connect by Turning Anti-Clockwise (B)
Screw regulator onto cylinder by turning fitting
anti-clockwise.
Connect by Turning Lever and
Snapping into Position (C)
Turn regulator lever (a) clockwise to the o position.
Push regulator down on cylinder valve until
regulator snaps into position (b).
Connect by Sliding Collar (D)
Make sure regulator lever is in the o position (a).
Slide the collar of the regulator up (b). Push the
regulator down onto the cylinder valve and maintain
pressure. Slide collar down to close (c). If regulator
does not lock, repeat procedure.
Note: The regulator illustrations shown in this manual
may not be similar to the regulator you are using for your
barbecue, due to dierent country or regional regulations.
Placement of the LPGCylinder
The size and shape of the cylinder determine if the
cylinder is placed on the cylinder hanger or placed on
the ground.
1) Identify your LPG cylinder type and follow the
appropriate placement instructions.
Ground Placement (E)
Place the cylinder on the ground outside the base
cabinet on the right side of the barbecue. Turn the
cylinder so the valve opening faces the front of
thebarbecue.
61 cm
