Troubleshooting
Checking the Components of the Electronic Ignition
System
When pressing the ignition button you should hear a
ticking sound. If you cannot hear the ticking sound, check
the battery, then check the wires.
Checking the Battery
There are three potential issues with the battery that
supplies the power to your ignition module that need to be
checked:
1) Some batteries have a plastic protective wrap around
them. (Do not confuse this plastic with the battery
label.) Check that this plastic wrap is removed.
2) Confirm that the battery is installed correctly (C).
3) If the battery is old, replace it with a new battery.
Checking the Wires
There are two potential trouble spots that need to be
checked:
1) Check that the ignition wires are connected securely to
the terminals on the ignition button under the control
panel.
2) Make sure the ignition wires are properly attached
to the ignition module. The wire terminals are color
coded to correspond with the terminals on the ignition
module. The number of wires will vary per model.
Checking the Ground Wire
Models 315, 425s and 435 have a ground wire connected
to the manifold bracket. This is visible from beneath the
control panel (D):
1) Check that the ground wire is properly secured with a
screw.

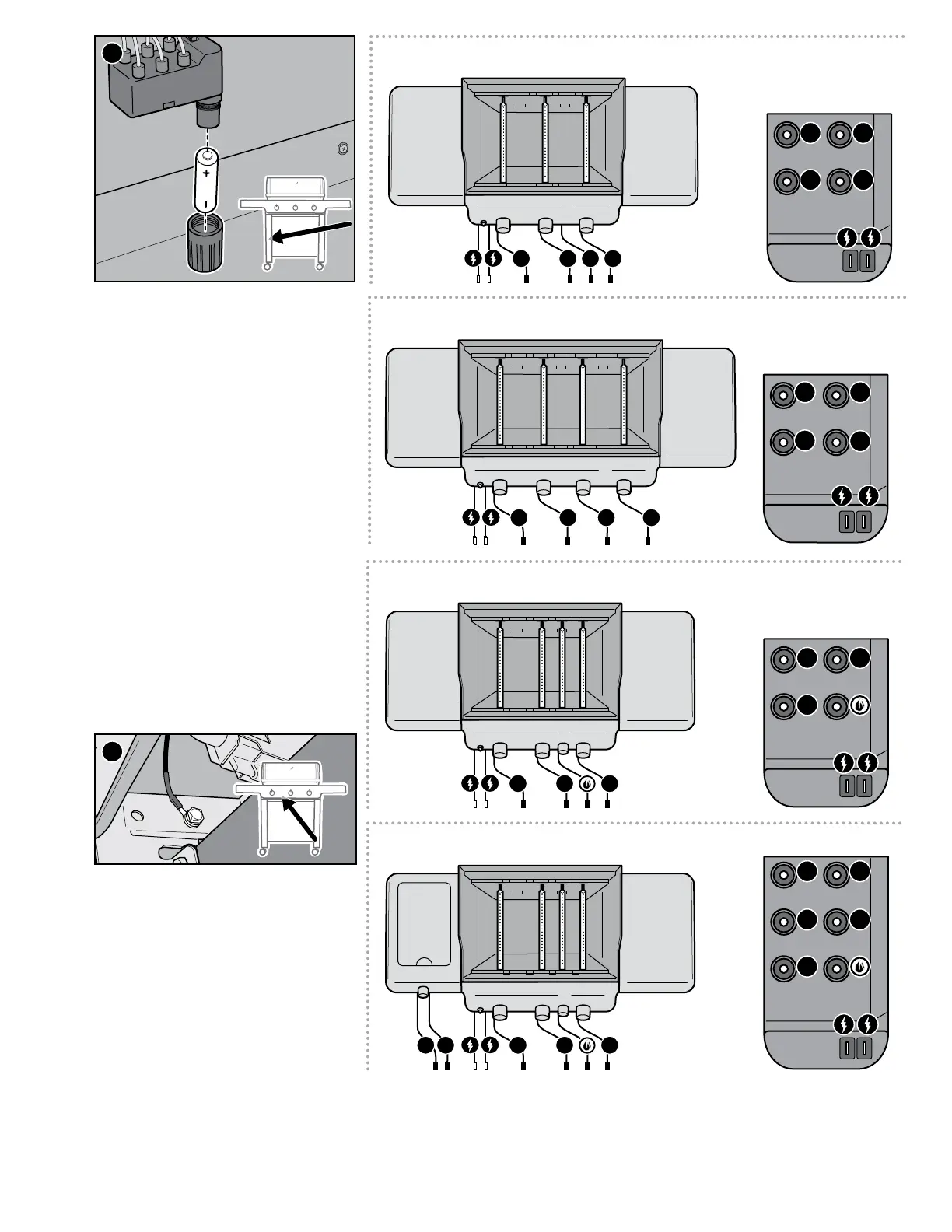

335 Igniter Module Wire Chart
D
1 2 34 5
5
3
1
4
2
C
325s/330 Igniter Module Wire Chart
315 Igniter Module Wire Chart
1 2 3
3
1
2
1 2 34
3
1
2
4
415 Igniter Module Wire Chart
3
1
4
2
1 3 42
