MAINTENANCE

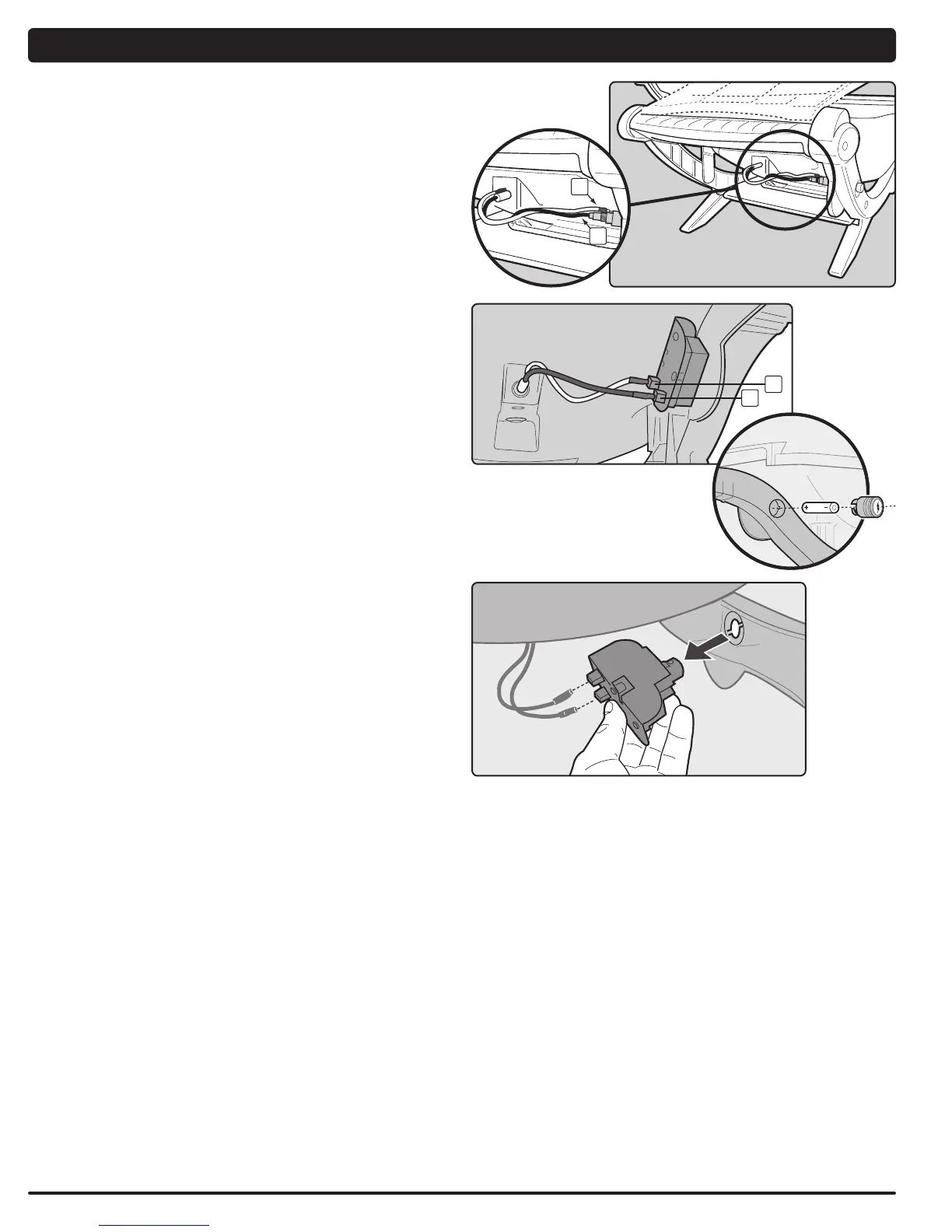

ELECTRONIC IGNITION SYSTEM OPERATIONS (Q120&Q220)
If the Electronic Ignition System (a feature on some of our barbecues) fails to ignite the
burner, be sure there is gas flow by attempting to match-light your burners. Refer to
“MANUAL IGNITION”. If match-lighting is successful, the problem lies in the Electronic
Ignition System.
m WARNING: All gas controls and supply valves should be in
the OFF position.
• Checkthatbothoftheignitionwiresareattachedproperlytotheigniterelectrodeson
the ignition module. Black wire to electrode (1), white wire to electrode (2).
• Verify that the AAA battery (alkaline only) is in good condition and installed correctly.
Some batteries have a plastic protective wrap around them. This plastic must be
removed. Do not confuse this plastic with the battery label.
• MakesuretheElectronicIgnitionbuttonisworkingbylisteningandlookingforsparks
at burner.
If the Electronic Ignition System still fails to light, contact the Customer Service
Representative in your area using the contact information on our website. Log
onto www.weber.com
®
.
◆
ELECTRONIC IGNITION SYSTEM REPLACEMENT
If replacement of the ignition module is necessary it must be removed and disposed of
properly. Please see back page for further information on proper disposal.
◆
1
2
1
2
PUSH-BUTTON IGNITION SYSTEM OPERATIONS (Q100 & Q200)
If the Push-Button Ignition System (a feature on some of our barbecues) fails to ignite
the burner, be sure there is gas flow by attempting to match-light your burners. Refer
to “MANUAL IGNITION”. If match-lighting is successful, the problem lies is the ignition
system.
m WARNING: All gas controls and supply valves should be in
the OFF position.
• Checkthatboththewhite(1) and black (2) ignition wires are attached properly.
• Verifythattheignitionbuttonpushesin,clicksandreturnstotheoutposition.
If the ignition system still fails to light, contact the Customer Service
Representative in your area using the contact information on our web site.
Log onto www.weber.com
®
.
◆
