Weber Q100 - Exploded View Q200

6

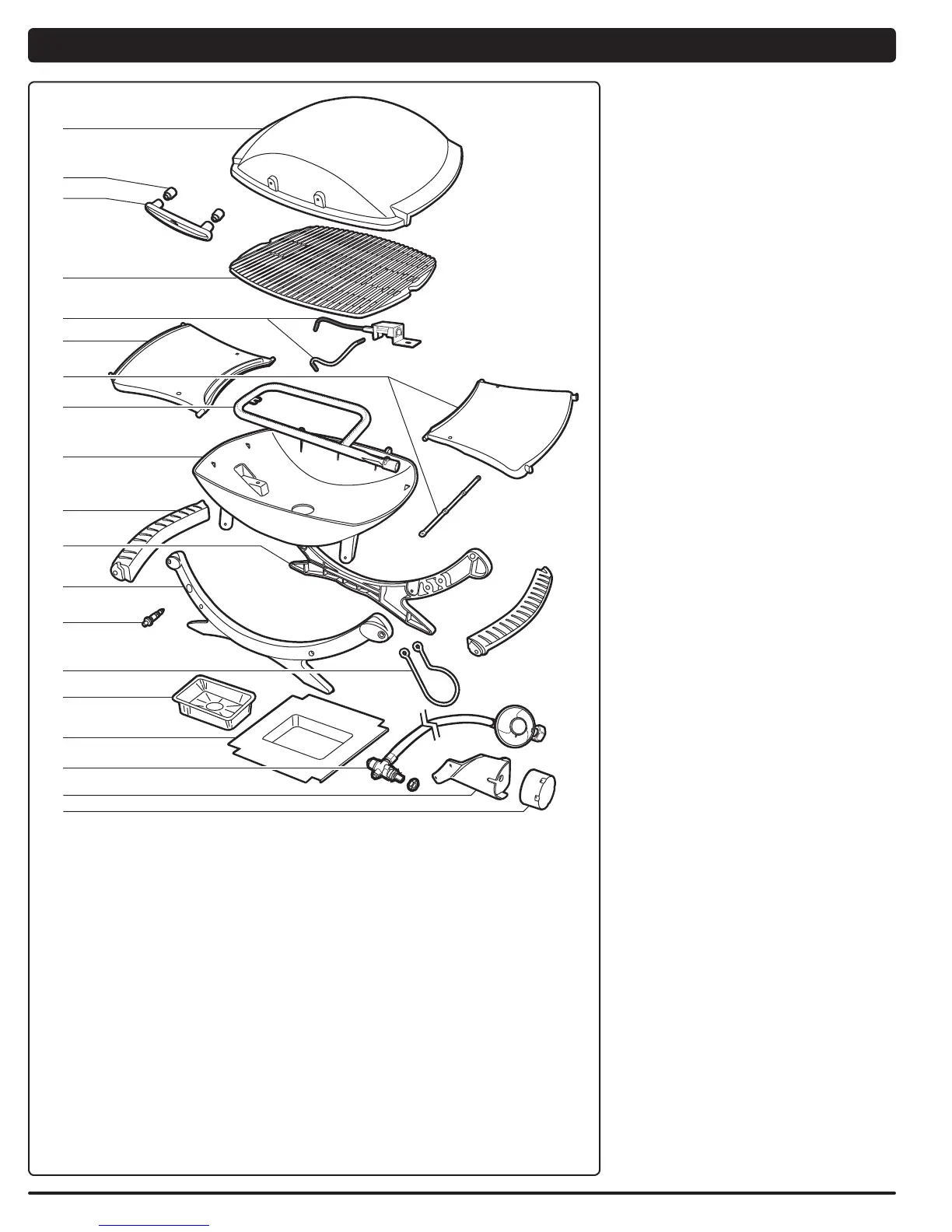

EXPLODED VIEW Q200
1. Lid
2. Handle Spacer
3. Handle
4. Cooking Grate
5. Igniter Electrode Assembly
6. Left Side Table
7. Right Side Table Assembly
8. Burner Tube
9. Cookbox
10. Carrying Handle
11. Rear Cradle
12. Front Cradle
13. Igniter
14. Hose Bracket
15. Disposable Drip Pan
16. Catch Pan
1 7. Valve, Hose and Regulator Assembly
(Hose and Regulator may not be included)
18. Control Panel
19. Control Knob
1
2
3
4
5
7
8
9
13
12
14
11
10
15
16
17
18
19
6
Q200_EURO_LP_071112
