Weber Q100 - Exploded View Q100

4

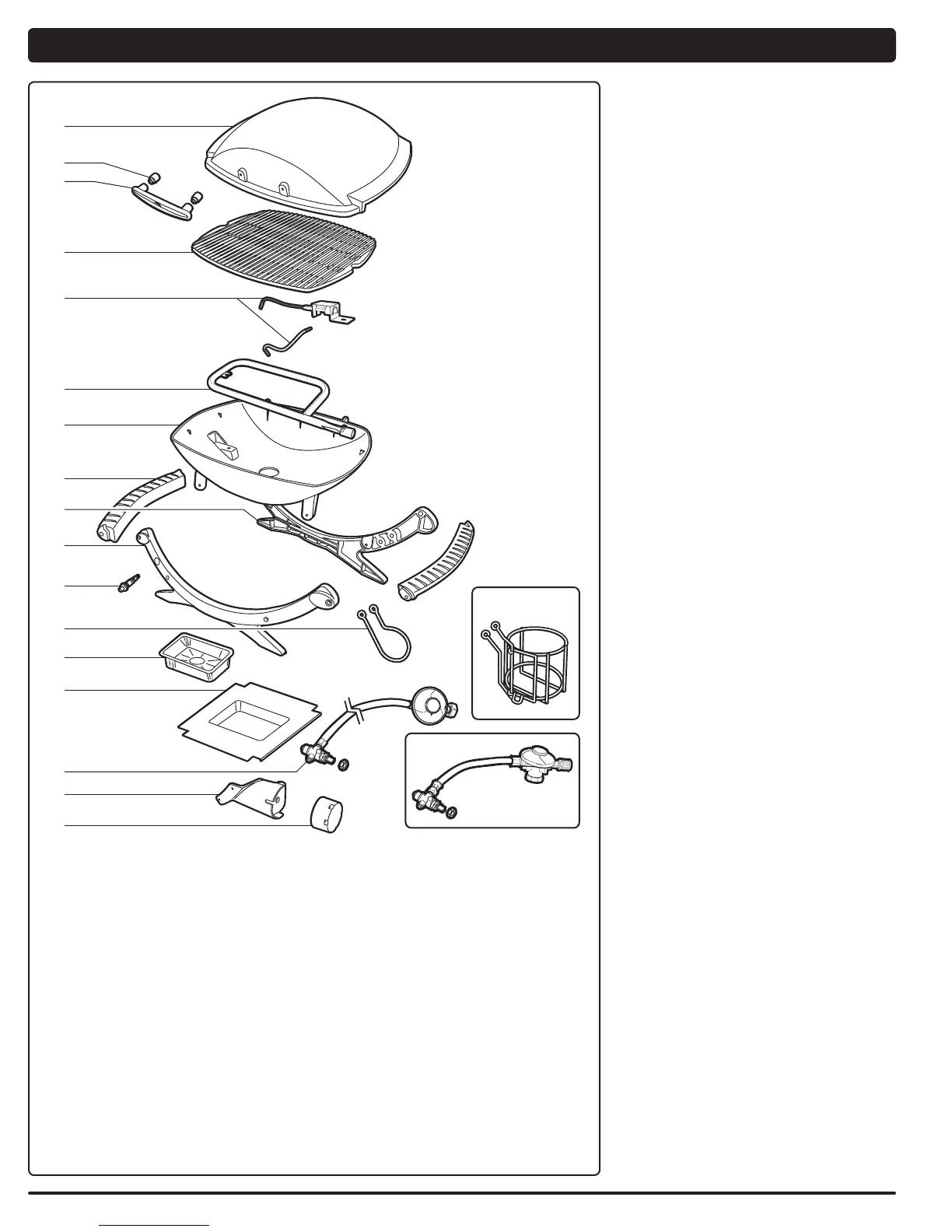

EXPLODED VIEW Q100
1. Lid
2. Handle Spacer
3. Handle
4. Cooking Grate
5. Igniter Electrode Assembly
6. Burner Tube
7. Cookbox
8. Carrying Handle
9. Rear Cradle
10. Front Cradle
11. Igniter
12. Hose Bracket /
Gas Cartridge Support Basket
13. Disposable Drip Pan
14. Catch Pan
15. Valve, Hose and Regulator Assembly /
Gas Cartridge Valve, Hose and
Regulator Assembly
(Hose and Regulator may not be included)
16. Control Panel
1 7. Control Knob
1
2
3
4
5
6
7
10
12
11
9
8
13
14
15
16
17
Q100_EURO_LP_071112
12
15
