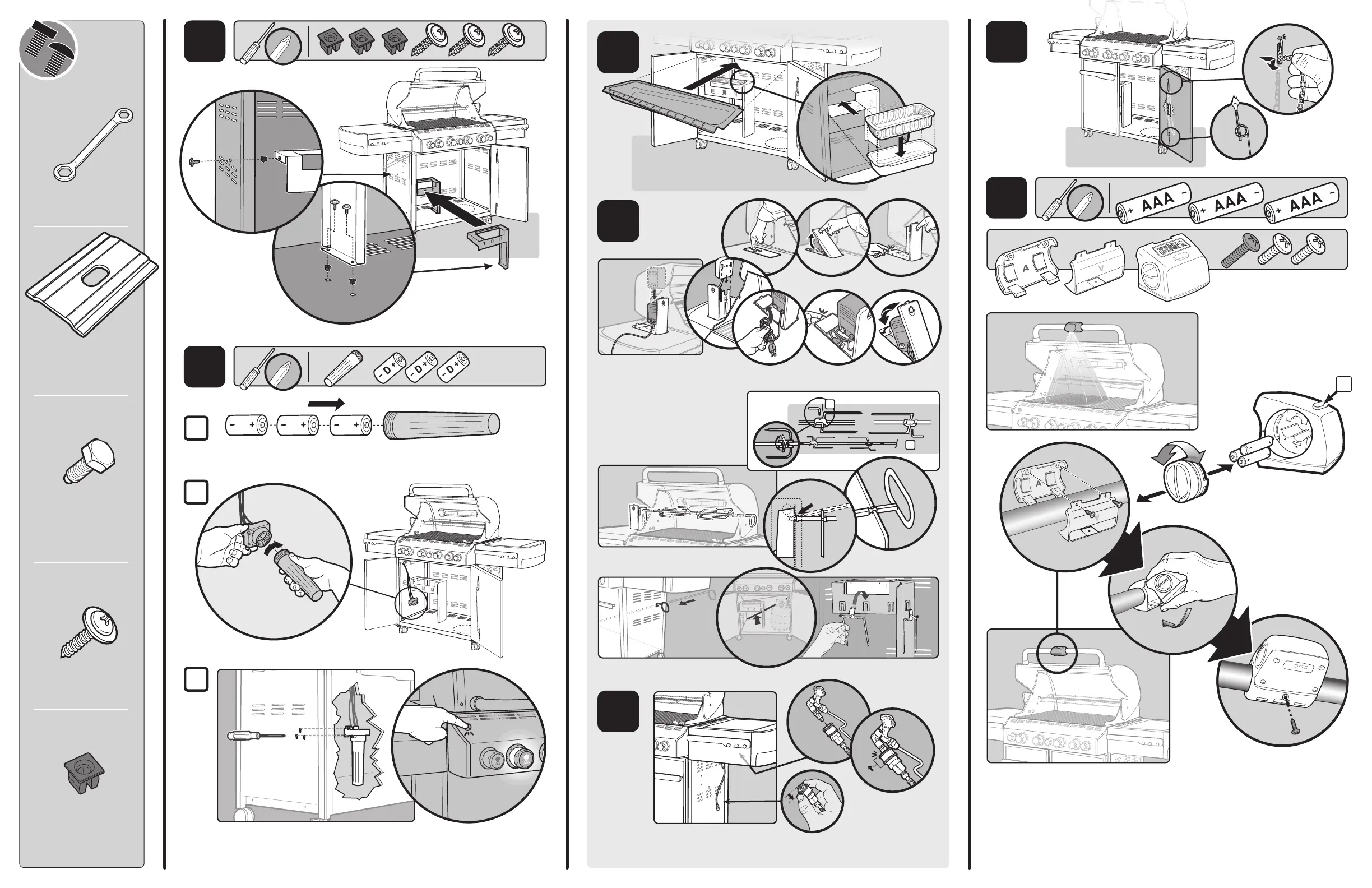

Weber Summit E-470 Assembly Instructions

5
6
7
4
A
B
C
8
3
2
1
9
a
Hardware:
Wrench - 1
Bracket - 4
Silver Hex Bolt - 4
Screw - 3
Plastic Plug - 3
The Weber Grill Out™ Handle Light has
a “Tilt Sensor”: Lid up - ON / Lid Closed
- OFF. The power button (a) activates or
deactivates the “Tilt Sensor.” For daytime
use, deactivate the sensor by pressing
power button (a).
See Owner’s Guide for complete
retractable rotisserie instructions.
Requires 3 “D” alkaline batteries (Included). Use alkaline batteries only. Do not mix old
and new batteries or different types of batteries (standard, alkaline or rechargeable).
Requires 3 “AAA” alkaline batteries
(not included).
See Owner’s Manual for complete gas instructions.

Weber Summit E-470 Specifications

General

Main Burners	4
BTU-per-hour Input	48, 800 BTU
Side Burner	Yes
Sear Station Burner	Yes
Smoker Box and Burner	Yes
Rotisserie Burner	Yes
Dimensions - Lid Closed	50.5"H x 66"W x 26.5"D
BTU Side Burner	12, 000 BTU
Grates Material	Stainless Steel
Grill Material	Stainless Steel
Ignition System	Snap-Jet Individual Burner Ignition System
Fuel Type	Liquid Propane
BTU Sear Burner	10, 600 BTU
BTU Smoker Burner	6, 800 BTU
Cooking Area	468 square inches
Warming Rack Area	112 square inches
Warranty	10 years
Total Cooking Area	580 square inches
