Step 3: Connect Coax Cables
To Booster

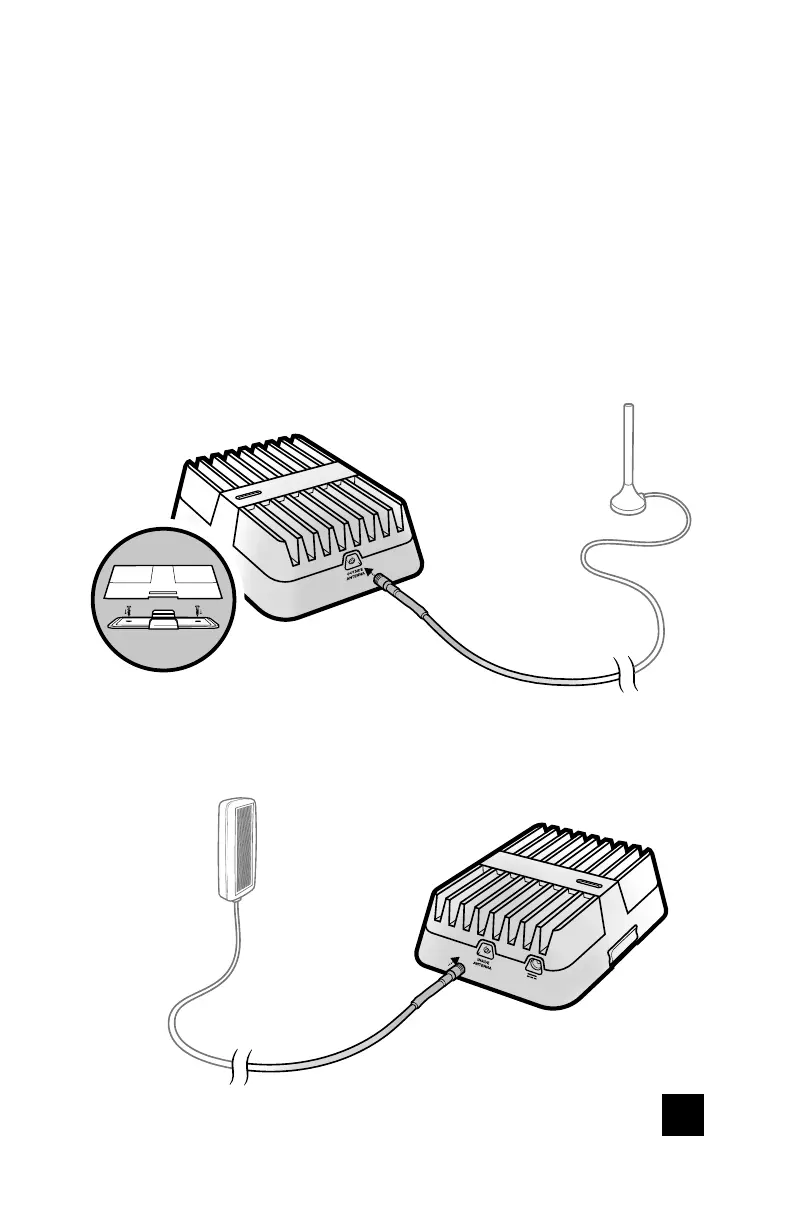

Connect the cable from the Mini-Mag Mount Antenna to the
port labeled “Outside Antenna” on the Drive Reach booster.
Connect the cable from the 4G In-Vehicle Antenna to the port
labeled “Inside Antenna” on the booster.
from Outside Antenna
from Inside Antenna
NOTE: Bracket can be used to fasten booster in a specifi c location if desired.
The Velcro® strip on the bottom of the bracket can also be used to keep
booster from sliding around.
bracket
Drive Reach

weBoost Drive Reach Specifications

General

Max Gain	50 dB
Impedance	50 Ohms
Connectors	SMA Female
Gain	50 dB
Uplink Frequency Ranges	698-716 MHz, 776-787 MHz, 824-849 MHz, 1710-1755 MHz, 1850-1915 MHz
Downlink Frequency Ranges	728-746 MHz, 746-757 MHz, 869-894 MHz, 1930-1995 MHz, 2110-2155 MHz
Power	12V DC
Dimensions (Amplifier)	6 x 4.5 x 1.5 in
