weBoost Drive Reach User Manual

4
VEHICLE SIGNAL BOOSTER DRIVE REACH
______

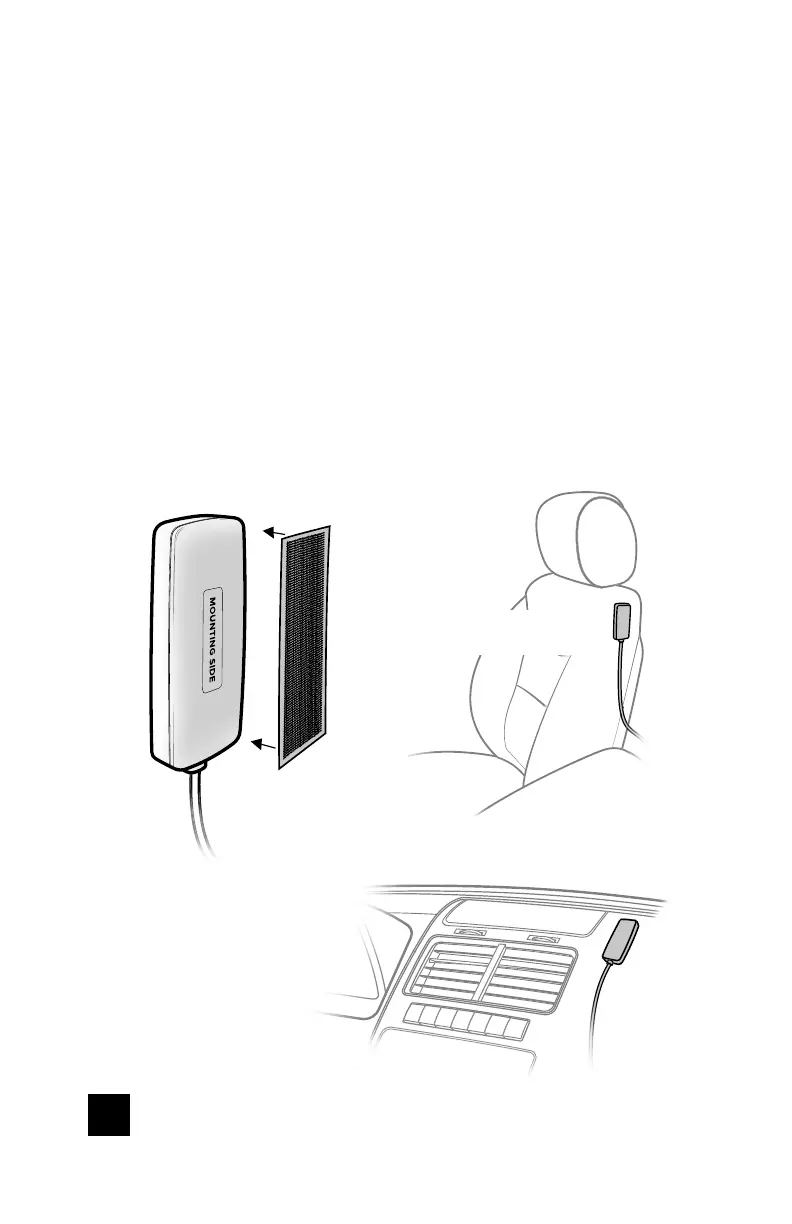

Step 2: Mount Inside Antenna
Identify a place to mount the 4G In-Vehicle Antenna, either on
the side of the seat or on the dash and mount. The location
should be at least 18 inches but no more than 36 inches
from where the cellular device will be used. Use the Velcro®
adhesive strip or the 2-sided adhesive strip provided and
attach to the side of the antenna labeled “MOUNTING SIDE”.
Then mount to desired location.
In-Vehicle Antenna
Dash Mount
Velcro® strip
In-Vehicle Antenna
Seat Mount
WARNING: DO NOT MOUNT WHERE AIRBAGS WILL DEPLOY.

weBoost Drive Reach Specifications

General

Max Gain	50 dB
Impedance	50 Ohms
Connectors	SMA Female
Gain	50 dB
Uplink Frequency Ranges	698-716 MHz, 776-787 MHz, 824-849 MHz, 1710-1755 MHz, 1850-1915 MHz
Downlink Frequency Ranges	728-746 MHz, 746-757 MHz, 869-894 MHz, 1930-1995 MHz, 2110-2155 MHz
Power	12V DC
Dimensions (Amplifier)	6 x 4.5 x 1.5 in
