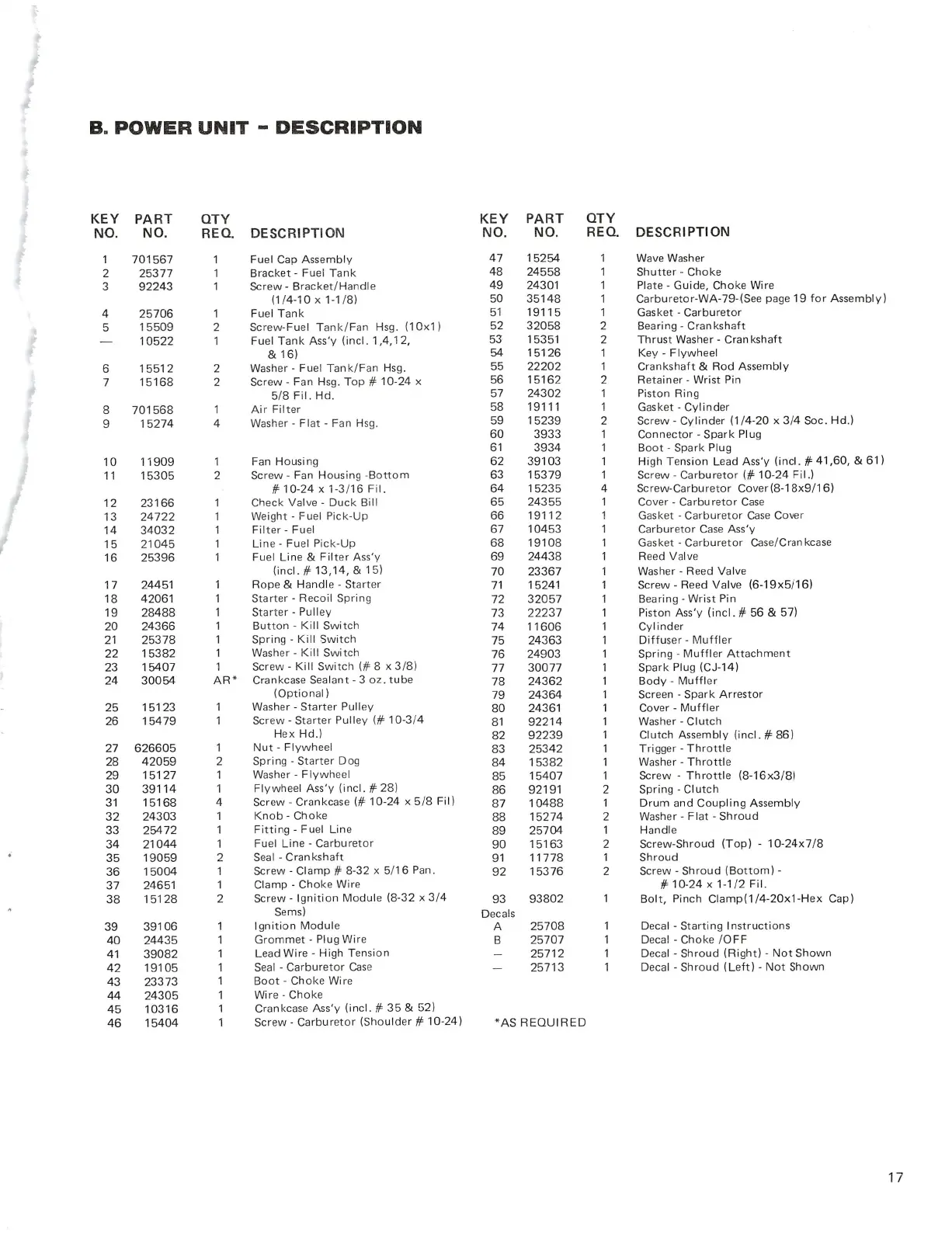

B. POWER UNIT - DESCRIPTION
i
I
I
KEY PART
QTV
KEY PART QTY
NO, NO.
REQ.
DESCRIPTION
NO.
NO. REG.
DESCRIPTION
1
701567
1 Fuel Cap Assembly
47
15254 1 Wave Washer
2
25377 1 Bracket - Fuel Tank
48
24558 1
Shutter - Choke
3 92243 1
Screw - Bracket/Handle
49
24301 1 Plate - Guide, Choke Wire
(1/4-10 X 1-1 /8)
50
35148 1
Carburetor-WA-79-(See page 19 for Assembly)
4
25706
1 Fuel Tank
51 19115 1 Gasket - Carburetor
5
15509 2
Screw-Fuel Tank/Fan Hsg. (10x1)
52
32058 2
Bearing - Crankshaft
,—
10522 1
Fuel Tank Ass'y (Incl . 1,4,12,
53
15351 2 Thrust Washer - Crankshaft
& 16)
54
15126 1 Key - Flywheel
6 15512 2
Washer - Fuel Tank/Fan Hsg.
55 22202 1 Crankshaft & Rod Assembly
7 15168
2
Screw - Fan Hsg. Top # 10-24 x
56 15162 2
Retainer - Wrist Pin
5/8 Fil . Hd.
57 24302 1 Piston Ring
8
701568
1
Air Filter
58 19111 1 Gasket - Cylinder
9
15274 4
Washer - Flat - Fan Hsg.
59
15239 2
Screw - Cylinder (1/4-20 x 3/4 Soc. Hd.)
60
3933 1
Connector - Spark Plug
61 3934 1 Boot - Spark Plug
10 11909
1
Fan Housing 62
39103 1
High Tension Lead Ass'y (incl . # 41,60, & 61)
11 15305
2
Screw - Fan Housing -Bottom
63
15379 1
Screw - Carburetor (# 10-24 Fil .)
#10-24 x 1-3/16 Fil.
64
15235 4
Screw-Carburetor Cover(8-18x9/16)
12 23166
1
Check Valve - Duck Bill
65 24355 1
Cover - Carburetor Case
13
24722
1 Weight - Fuel Pick-Up
66 19112 1 Gasket - Carburetor Case Cover
14 34032
1
Filter - Fuel
67
10453 1 Carburetor Case Ass'y
15
21045
1
Line - Fuel Pick-Up
68 19108 1
Gasket - Carburetor Case/Cran kcase
16 25396
1 Fuel Line & Filter Ass'y
69 24438 1
Reed Valve
(incl . # 13,14, & 15)
70 23367 1
Washer - Reed Valve
17 24451
1
Rope & Handle - Starter
71
15241 1 Screw - Reed Valve (6-19x5/16)
18
42061
1
Starter - Recoil Spring
72
32057 1
Bearing - Wrist Pin
19 28488
1
Starter - Pulley
73
22237 1
Piston Ass'y (incl . # 56 & 57)
20
24366
1
Button - Kill Switch
74
11606 1
Cylinder
21 25378
1
Spring - Kill Switch
75 24363 1
Diffuser - Muffler
22
15382
1
Washer - Kill Switch
76
24903 1
Spring - Muffler Attachment
23 15407
1
Screw - KIM Switch (# 8 x 3/8)
77
30077 1
Spark Plug (CJ-14)
24
30054 AR*
Crankcase Sealant - 3 oz. tube
78
24362 1
Body - Muffler
(Optional)
79
24364 1
Screen - Spark Arrestor
25
15123
1
Washer - Starter Pulley
80 24361 1
Cover - Muffler
26 15479
1 Screw - Starter Pulley (# 10-3/4
81
92214 1
Washer - Clutch
Hex Hd.)
82 92239 1
Clutch Assembly (incl . # 86)
27 626605
1
Nut - Flywheel
83 25342 1
Trigger - Throttle
28
42059 2
Spring - Starter Dog
84 15382 1
Washer - Throttle
29
15127
1
Washer - Flywheel
85
15407 1
Screw - Throttle (8-16x3/8)
30
39114 1
Flywheel Ass'y (incl. #28)
86 92191 2
Spring - Clutch
31
15168
4 Screw - Crankcase (# 10-24 x 5/8 Fil)
87
10488 1
Drum and Coupling Assembly
32
24303
1 Knob - Choke
88
15274 2
Washer - Flat - Shroud
33
25472
1
Fitting - Fuel Line
89
25704 1
Handle
34
21044 1
Fuel Line - Carburetor
90
15163 2
Screw-Shroud (Top) - 10-24x7/8
35
19059
2
Seal - Crankshaft
91
11778 1
Shroud
36
15004
1
Screw - Clamp # 8-32 x 5/16 Pan.
92
15376 2
Screw - Shroud (Bottom) -
37 24651
1
Clamp - Choke Wire
#10-24 X 1-1/2 Fil.
38
15128
2
Screw - Ignition Module (8-32 x 3/4
93
93802 1
Bolt, Pinch Clampd/4-20x1-Hex Cap)
Sems)
Decals
39
39106
1
Ignition Module
A
25708 1
Decal - Starting Instructions
40 24435
1
Grommet - Plug Wire
B
25707 1
Decal - Choke /OFF
41 39082
1
Lead Wire - High Tension
_
25712 1
Decal - Shroud (Right) - Not Shown
42
19105
1
Seal - Carburetor Case 25713 1 Decal - Shroud (Left) - Not Shown
43
23373
1
Boot - Choke Wire
44 24305
1
Wire - Choke
45
10316
1
Crankcase Ass'y (incl . # 35 & 52)
46
15404
1
Screw - Carburetor (Shoulder # 10-24)
■ AS REQUIRED
17
