Weed Eater 1700 - Lower Unit - Illustration and Description

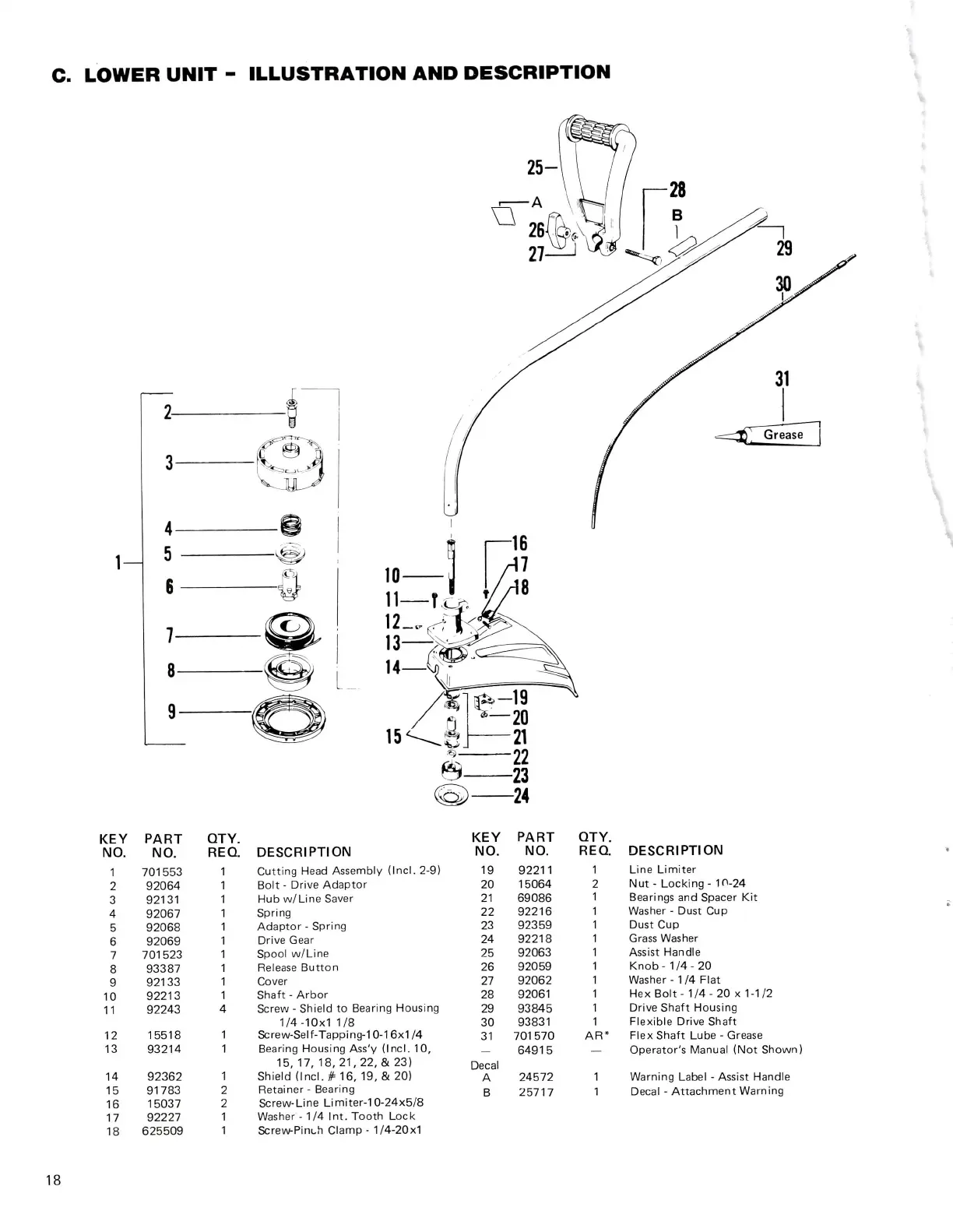

C. LOWER UNIT - ILLUSTRATION AND DESCRIPTION
s
Grease
KEY PART
QTY.
KEY PART QTY.
NO. NO.
REO.
DESCRIPTION
NO. NO.
REO.
DESCRIPTION
1
701553
1
Cutting Head Assembly (Incl. 2-9)
19 92211
1
Line Limiter
2
92064
1
Bolt - Drive Adaptor
20
15064 2 Nut - Locking - 10-24
3
92131
1
Hub w/Line Saver
21 69086
1
Bearings and Spacer Kit
4 92067
1
Spring
22
92216
1
Washer - Dust Cup
5
92068
1
Adaptor - Spring
23 92359
1
Dust Cup
6
92069
1
Drive Gear
24
92218
1
Grass Washer
7 701523
1
Spool w/Llne
25
92063 1
Assist Handle
8
93387
1
Release Button
26
92059
1 Knob - 1/4-20
9
92133
1
Cover
27
92062
1
Washer - 1/4 Flat
10
92213
1
Shaft - Arbor 28
92061
1 Hex Bolt - 1/4-20 x 1-1/2
11
92243
4 Screw - Shield to Bearing Housing 29 93845
1
Drive Shaft Housing
1/4 -10x1 1/8 30
93831 1
Flexible Drive Shaft
12
15518
1 Screw-Self-Tapping-10-16x1 /4
31
701 570 AR*
Flex Shaft Lube - Grease
13 93214
1
Bearing Housing Ass'y (Incl . 10,
64915
—
Operator's Manual (Not Shown
15, 17, 18, 21, 22, & 23)
Decal
14 92362
1
Shield (Incl. # 16, 19, & 20)
A
24572
1
Warning Label - Assist Handle
15
91783 2
Retainer - Bearing
B 25717
1
Decal - Attachment Warning
16
15037
2
Screw-Line Limiter-10-24x5/8
17
92227
1
Washer - 1/4 1 nt. Tooth Lock
18
625509
1 Screw-Pinch Clamp - 1/4-20x1
18
