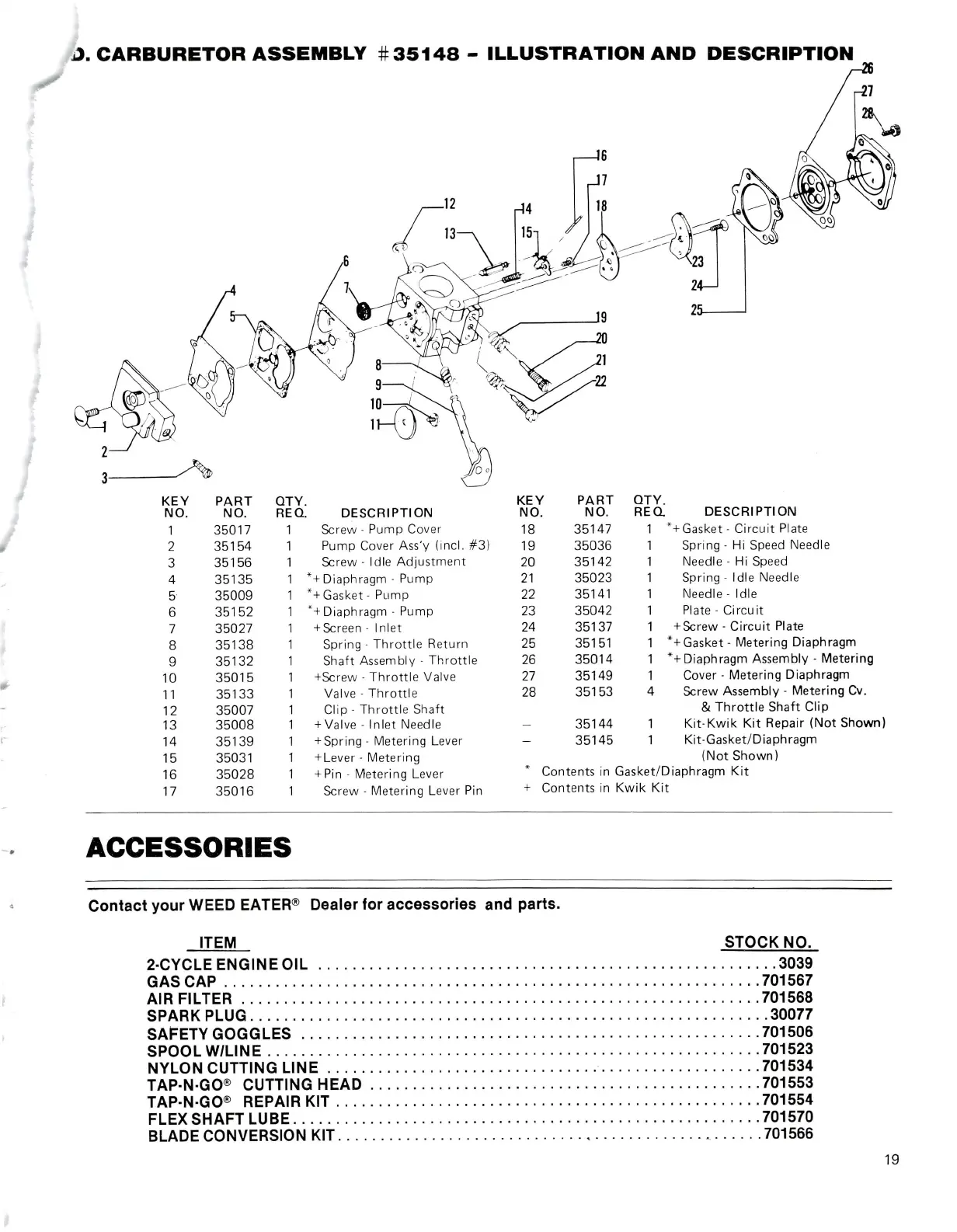

i>. CARBURETOR ASSEMBLY #35148- ILLUSTRATION AND DESCRIPTION
f
4
i
I
/
KEY
PART QTV.
KEY PART
QTY.
NO. NO. REQ. DESCRIPTION
NO. NO.
REa DESCRIPTION
1
35017
1 Screw - Pump Cover 18
35147
1 *+Gasket- Circuit Plate
2
35154
1 Pump Cover Ass'y (incl . #3) 19 35036
1 Spring - Hi Speed Needle
3
35156
1 Screw - Idle Adjustment 20
35142
1 Needle - Hi Speed
4 35135
1 *+Diaphragm - Pump
21
35023
1 Spring - Idle Needle
5'
35009
1 *+Gasket - Pump
22
35141 1 Needle - Idle
6
35152
1 *+Diaphragm ■ Pump
23
35042
1 Plate - Circuit
7
35027 1 +Screen ■ Inlet
24
35137
1 +Screw - Circuit Plate
8
35138
1 Spring - Throttle Return
25 35151
1 *+Gasket - Metering Diaphragm
9
35132
1 Shaft Assembly - Throttle
26
35014 1 *+Diaphragm Assembly - Metering
10
35015
1 +Screw - Throttle Valve
27
35149
1 Cover - Metering Diaphragm
11
35133
1 Valve - Throttle
28
35153
4 Screw Assembly - Metering Cv.
12
35007
1 Clip - Throttle Shaft
& Throttle Shaft Clip
13
35008
1 +Valve - Inlet Needle
—
35144
1 Kit-Kwik Kit Repair (Not Shown)
14 35139
1 +Spring - Metering Lever
—
35145
1 Kit-Gasket/Diaphragm
15
35031
1 +Lever - Metering
(Not Shown)
16
35028
1 +Pin - Metering Lever
*
Contents in
Gasket/Diaphragm Kit
17 35016
1 Screw - Metering Lever Pin
+
Contents in Kwik Kit
ACCESSORIES
Contact your WEED EATER® Dealer for accessories and parts.
ITEM STOCK NO.
2-CYCLE ENGINE OIL 3039
GAS CAP 701567
AIR FILTER 701568
SPARKPLUG 30077
SAFETY GOGGLES 701506
SPOOL W/LINE 701523
NYLON CUTTING LINE 701534
TAP-N-GO® CUTTING HEAD 701553
TAP-N-GO® REPAIR KIT 701554
FLEX SHAFT LUBE 701570
BLADE CONVERSION KIT 701566
19
