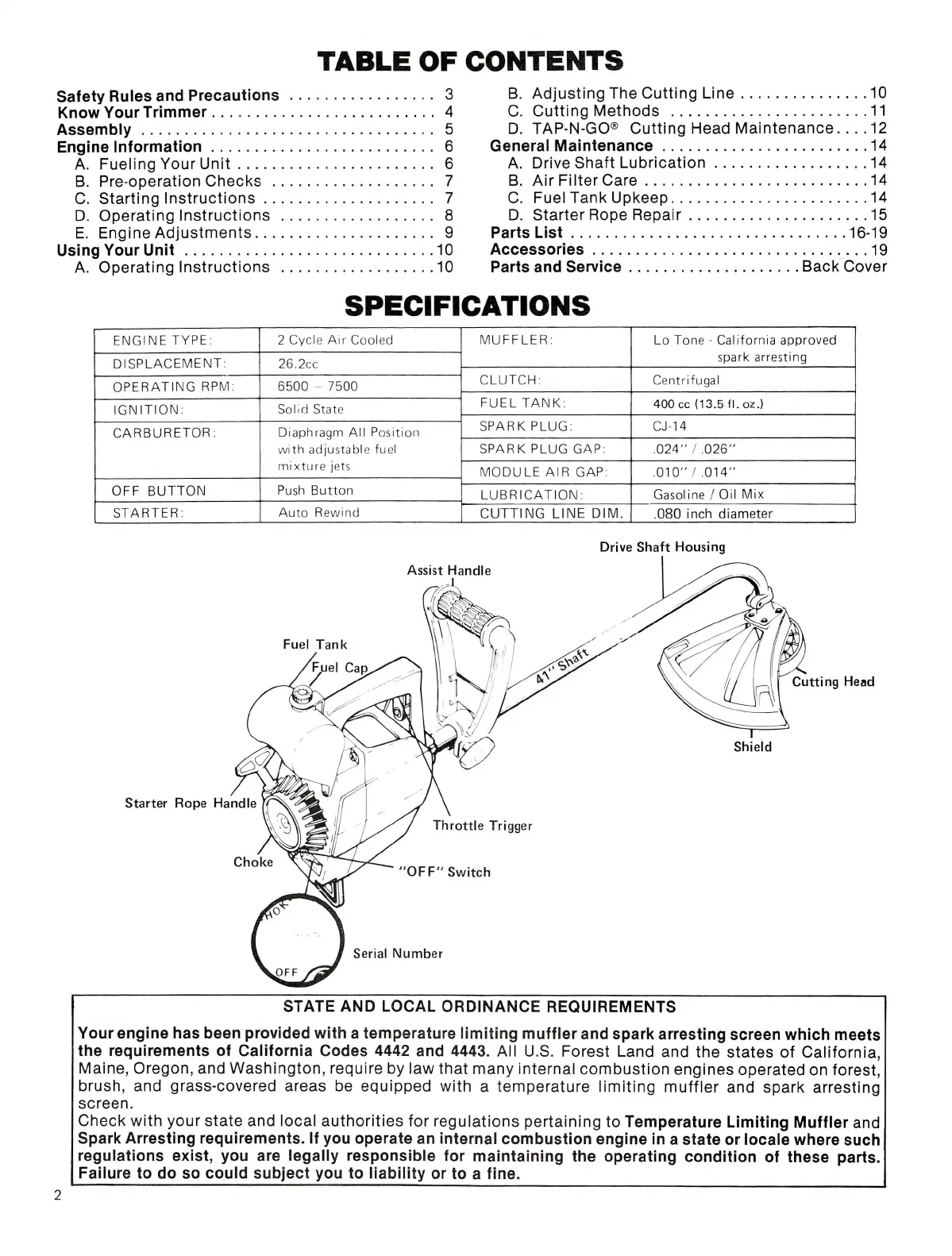

TABLE OF CONTENTS
Safety Rules and Precautions 3
Know YourTrimmer 4
Assembly 5
Engine Information 6
A. Fueling Your Unit 6
B. Pre-operation Checks 7
0. Starting Instructions 7
D. Operating instructions 8
E. Engine Adjustments 9
Using Your Unit 10
A. Operating Instructions 10
B. Adjusting The Gutting Line 10
0. Gutting Methods 11
D. TAP-N-GO® Gutting Head Maintenance. ... 12
General Maintenance 14
A. Drive Shaft Lubrication 14
B. Air Filter Gare 14
G. FuelTank Upkeep 14
D. Starter Rope Repair 15
Parts List 16-19
Accessories 19
Parts and Service Back Cover
SPECIFICATIONS
ENGINE TYPE:
2 Cycle Air Cooled
MUFFLER:
Lo Tone - Cal ifornia approved
spark arresting
DISPLACEMENT:
26.2CC
CLUTCH:
Centrifugal
OPERATING RPM:
6500 - 7500
IGNITION:
Sol id State
FUEL TANK:
400 cc (13.5fl.oz.)
CARBURETOR:
Diaphragm All Position
with adjustable fuel
mixture jets
SPARK PLUG: CJH4
SPARK PLUG GAP: .024" / .026"
MODULE AIR GAP:
.010"/ .014"
OFF BUTTON
Push Button
LUBRICATION: Gasol ine / Oil Mix
STARTER:
Auto Rewind
CUTTING LINE DIM.
.080 inch diameter
Drive Shaft Housing
Assist Handle
A.
Fuel Tank
Starter Rope Handle
Choke
Cutting Head
Shield
Throttle Trigger
"OFF" Switch
Serial Number
STATE AND LOCAL ORDINANCE REQUIREMENTS
Your engine has been provided with a temperature limiting muffler and spark arresting screen which meets
the requirements of California Codes 4442 and 4443. All U.S. Forest Land and the states of California,
Maine, Oregon, and Washington, require by law that many internal combustion engines operated on forest,
brush, and grass-covered areas be equipped with a temperature limiting muffler and spark arresting
screen.
Check with your state and local authorities for regulations pertaining to Temperature Limiting Muffler and
Spark Arresting requirements. If you operate an internal combustion engine in a state or locale where such
regulations exist, you are legally responsible for maintaining the operating condition of these parts.
Failure to do so could subject you to liability or to a fine.
