Wega POLARIS Series User Manual

21 of 68
TECHNICIANS manual
ENGLISH

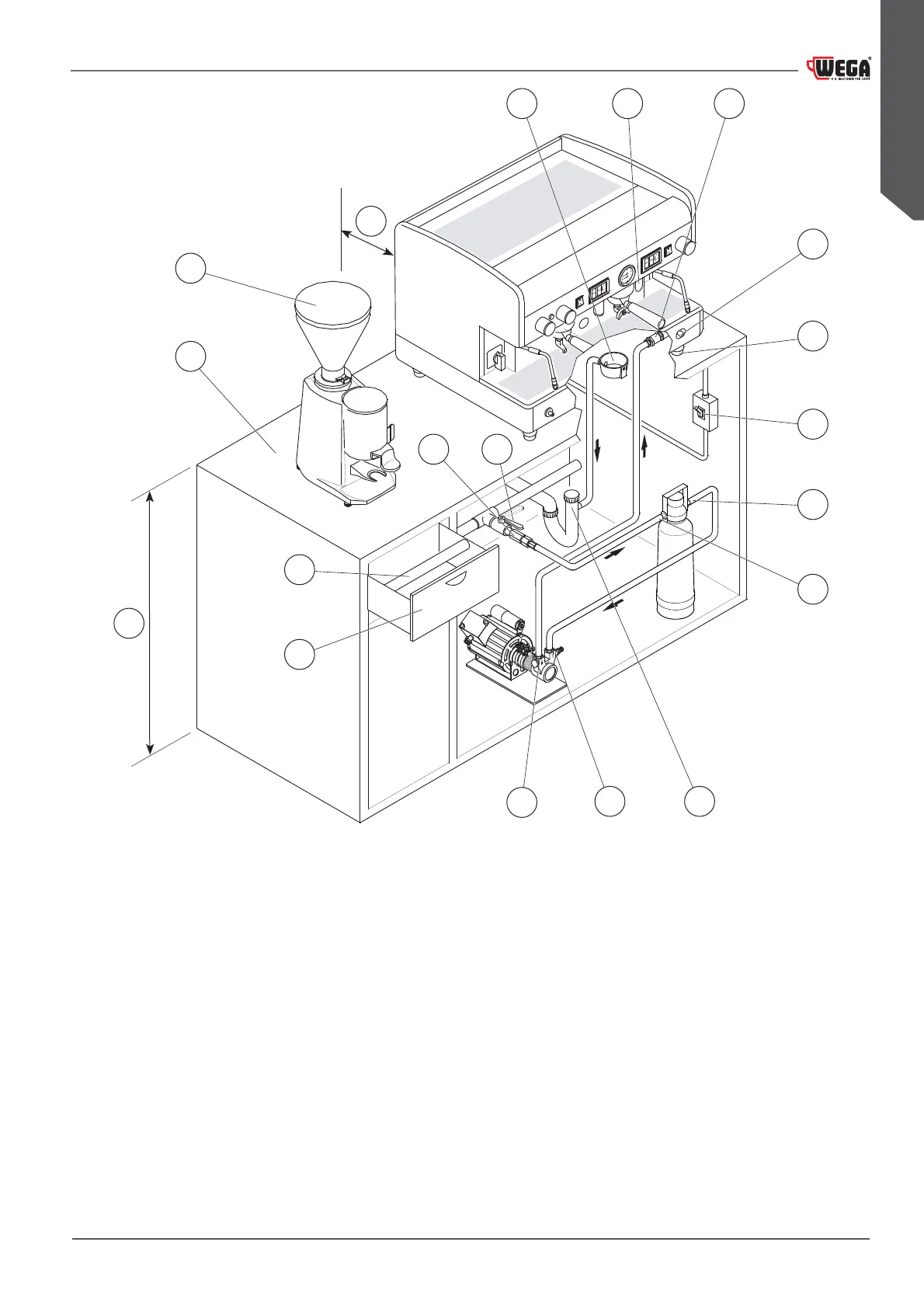

1. Support base
2. Grinder-dispenser
3. 20 cm minimum distance between the machine
and the wall
4. Discharge tub
5. Boiler water level
6. Water supply inlet
7. Manual water load
8. Adjustable feet
9. Electric power switch
10. Water lter inlet
11. Water lter outlet
12. Sewer drain
13. Motor pump inlet
3
19
5 6
7
8
9
10
17
18
16 15
11
14
1213
4
2
1
14. Motor pump outlet
15. Water supply tap
16. Water supply non-return valve
17. Used coee grounds drawer
18. Support for tapping the lter holder
19. Height of support base 90 cm

Wega POLARIS Series Specifications

General

Type	Automatic
Material	Stainless Steel
Boiler Capacity	5L / 10L / 12L
Group Heads	1 / 2 / 3
Power	2300W / 3600W / 4800W
Voltage	110V / 220V / 380V
Dimensions	535x520x510mm / 760x520x510mm / 985x520x510mm
Weight	51Kg / 66Kg / 81Kg
Features	Electronic pre-infusion; Independent regulation of boiler pressure; Display; LED lights
