Wega POLARIS Series User Manual

64 of 68
TECHNICIANS manual

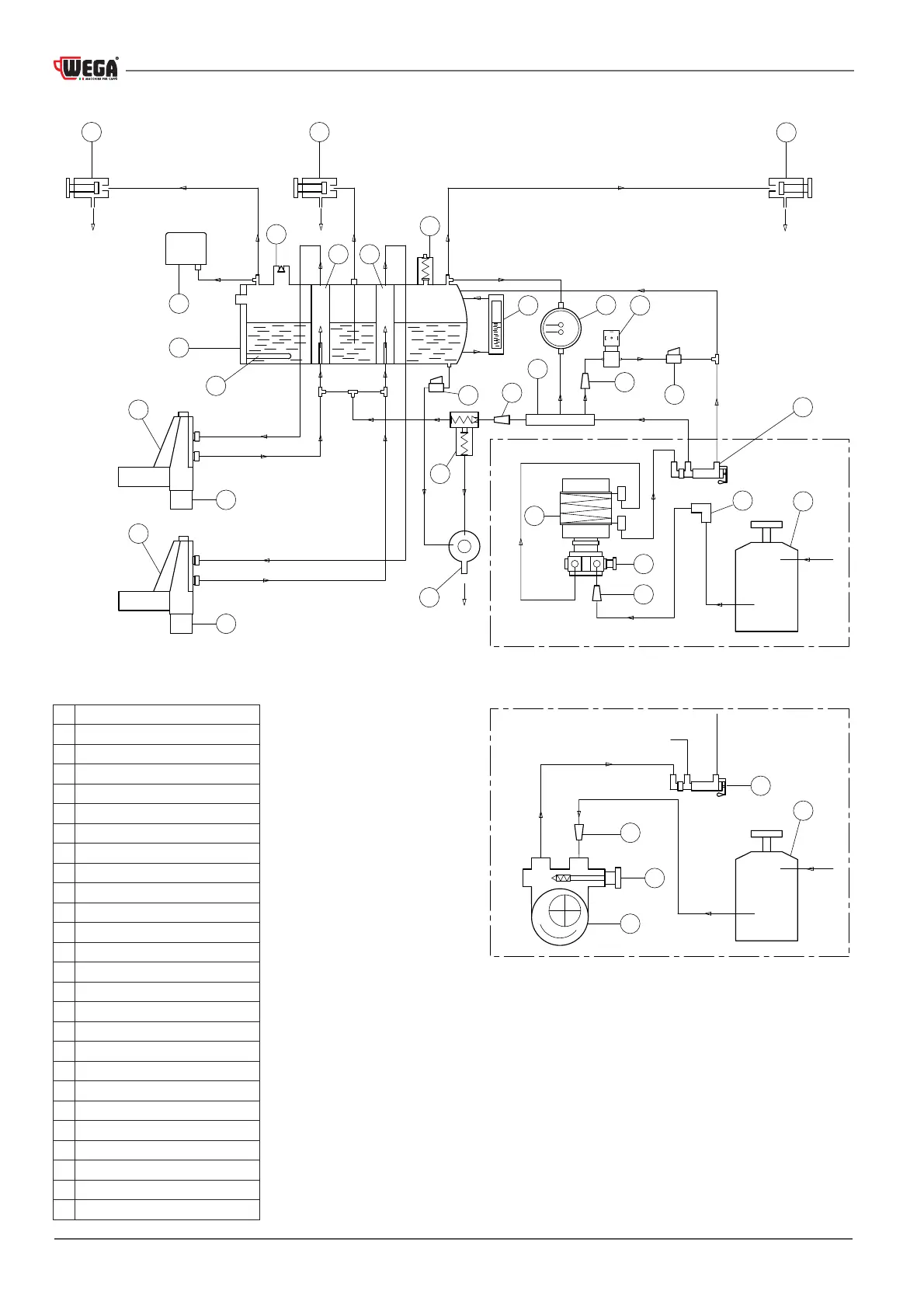

15.2 EMA - EPU DISPENSING GROUP hydraulic diagram
Internal motor pump
External motor pump
14
10
16
14
19
11
S
3
4
2
22
17
21
8
5
1
E
1
5
4
2
23
E
13
17
2
20
24
7
6
9
2
15
11
18
12
18
12
1 Water softener
2 Water inlet lter
3 Built-in motor pump
4 Pump pressure adjustment
5 Manual water entry tap
6 SCNR valve
7 Discharge tub
8 Pressure gauge
9 Optical level
10 Boiler
11 Heat exchanger
12 Dispensing group
13 Hot water tap
14 Steam cock
15 Safety valve
16 Negative pressure valve
17 Boiler drain tap
18 Group solenoid valve
19 Pressure switch
20 Automatic Water Entry Solenoid Valve
21 Water inlet connection
22 Water dispenser
23 External motor pump
24 Boiler heating element
E Water inlet
S Drain

Wega POLARIS Series Specifications

General

Type	Automatic
Material	Stainless Steel
Boiler Capacity	5L / 10L / 12L
Group Heads	1 / 2 / 3
Power	2300W / 3600W / 4800W
Voltage	110V / 220V / 380V
Dimensions	535x520x510mm / 760x520x510mm / 985x520x510mm
Weight	51Kg / 66Kg / 81Kg
Features	Electronic pre-infusion; Independent regulation of boiler pressure; Display; LED lights
