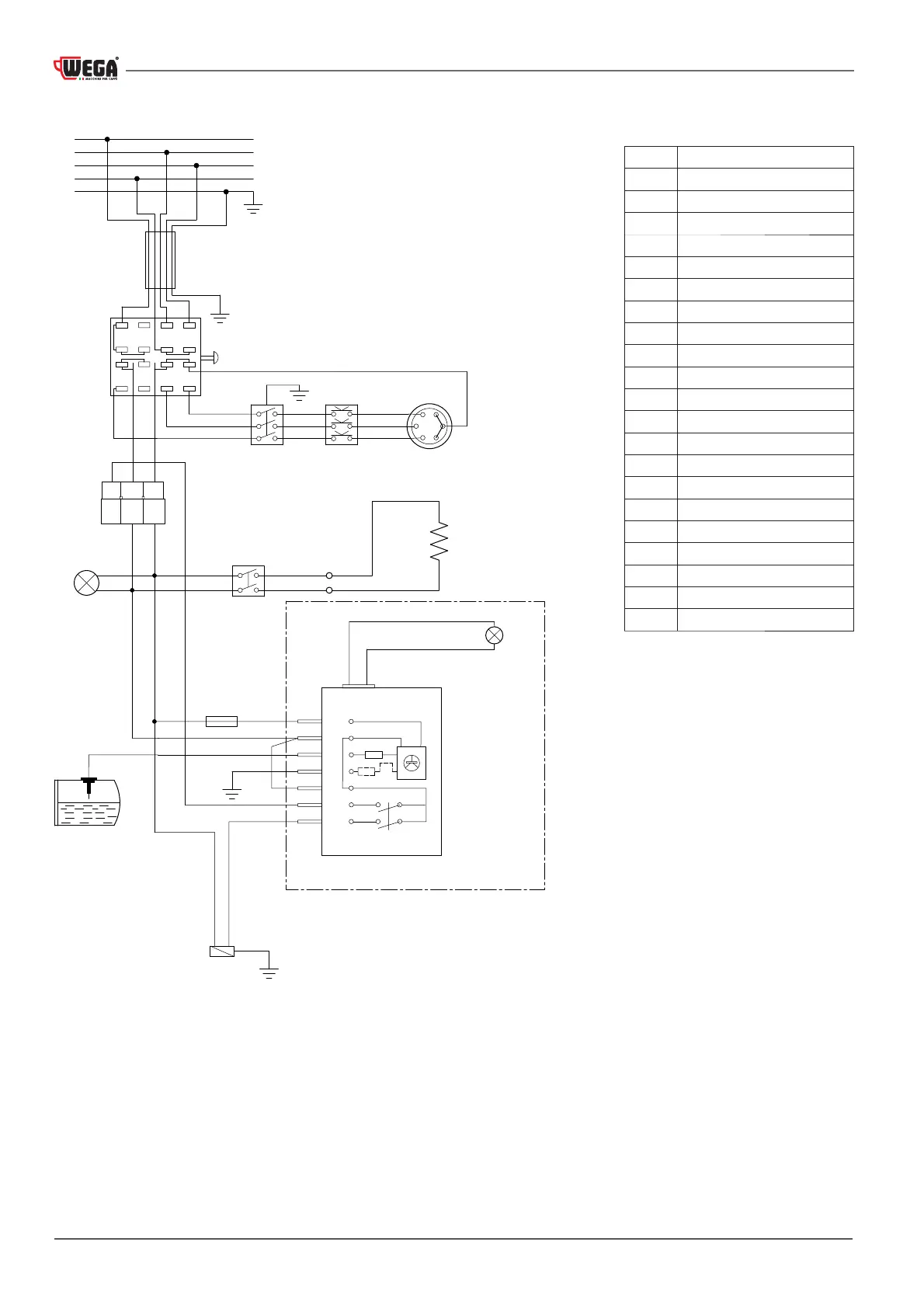

14.3 Single-phase ALE - EMA version
LED
BI
FU
RO
NE
GV
1
2
4
6
8
9
10
RL30
BL
GV
EC
BL
CAL
SL
13 9 5
1
3
71115
16 12 8
4
2
610
14
SCT
LA
CT
IST
PR
SA
CO
RE
400V
R
S
T
N
MA
BL NE GR GV
CAB
MA
BL
BI White
BL Blue
CAB Power cable
CAL Boiler
CO Power switch
CT Supply connection
EC Boiler lling solenoid valve
FU Fuse
GR Grey
GV Yellow-green
LED LED Timeout
IST Cup heater switch
LA Indicator light
MA Brown
NE Black
RO Red
PR Pressure switch
RE Resistance
RL30 AEA control unit (optional)
SA Resistance safety device
SL Boiler level probe
VE Green

Wega POLARIS Series Specifications

General

Type	Automatic
Material	Stainless Steel
Boiler Capacity	5L / 10L / 12L
Group Heads	1 / 2 / 3
Power	2300W / 3600W / 4800W
Voltage	110V / 220V / 380V
Dimensions	535x520x510mm / 760x520x510mm / 985x520x510mm
Weight	51Kg / 66Kg / 81Kg
Features	Electronic pre-infusion; Independent regulation of boiler pressure; Display; LED lights
