Wega POLARIS Series

63 of 68
TECHNICIANS manual
ENGLISH
15. HYDRAULIC DIAGRAMS

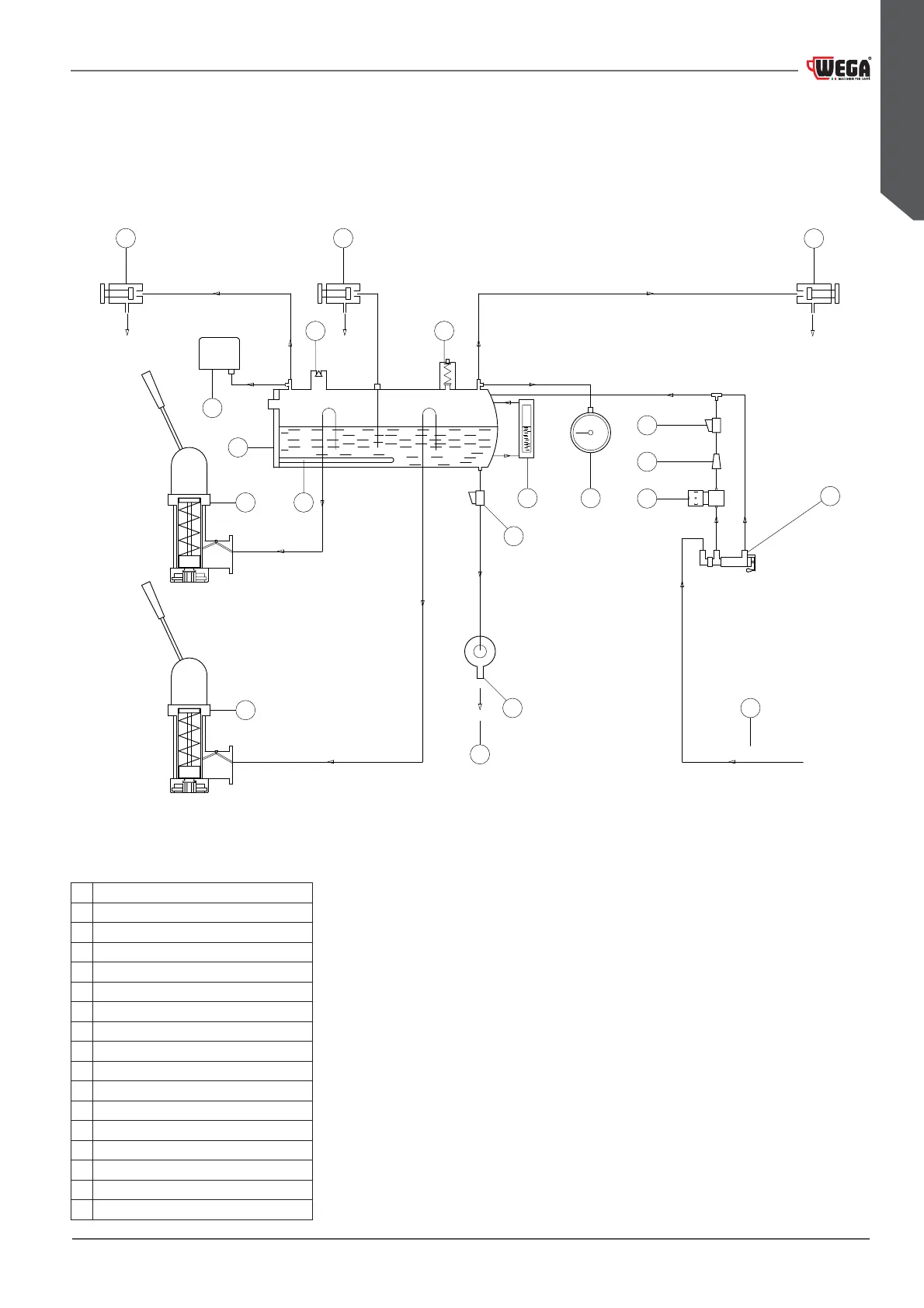

15.1 LEVER GROUP hydraulic diagram
1 Steam cock
2 Hot water tap
3 Negative pressure valve
4 Safety valve
5 Pressure switch
6 Boiler
7 Dispensing group
8 Boiler heating element
9Tap
10 Optical level
11 Pressure gauge
12 Water inlet lter
13 Automatic Water Entry solenoid valve (optional)
14 Manual water entry tap
15 Discharge tub
16 Drain
17 Water inlet
7
6
5
1
3
2
S
15
E
10
14
12
7
11
4
9
13
9
12
8
16
17
