● Install intermediate gear parts of oil pump, and then drive into
intermediate gear shaft of oil pump.
Notice:
※
The convexity of intermediate gear parts of oil pump should be
towards inside.
※
Check whether the intermediate gear shaft of oil pump can be
turned exibly after installing.
● Install hexagonal bolts in the intermediate gear shaft of oil pump
and tighten them. Tightening torque: 59+5 Nm (smear glue). Tighten all
the M10 bolts.
● Check the clearance of gear.

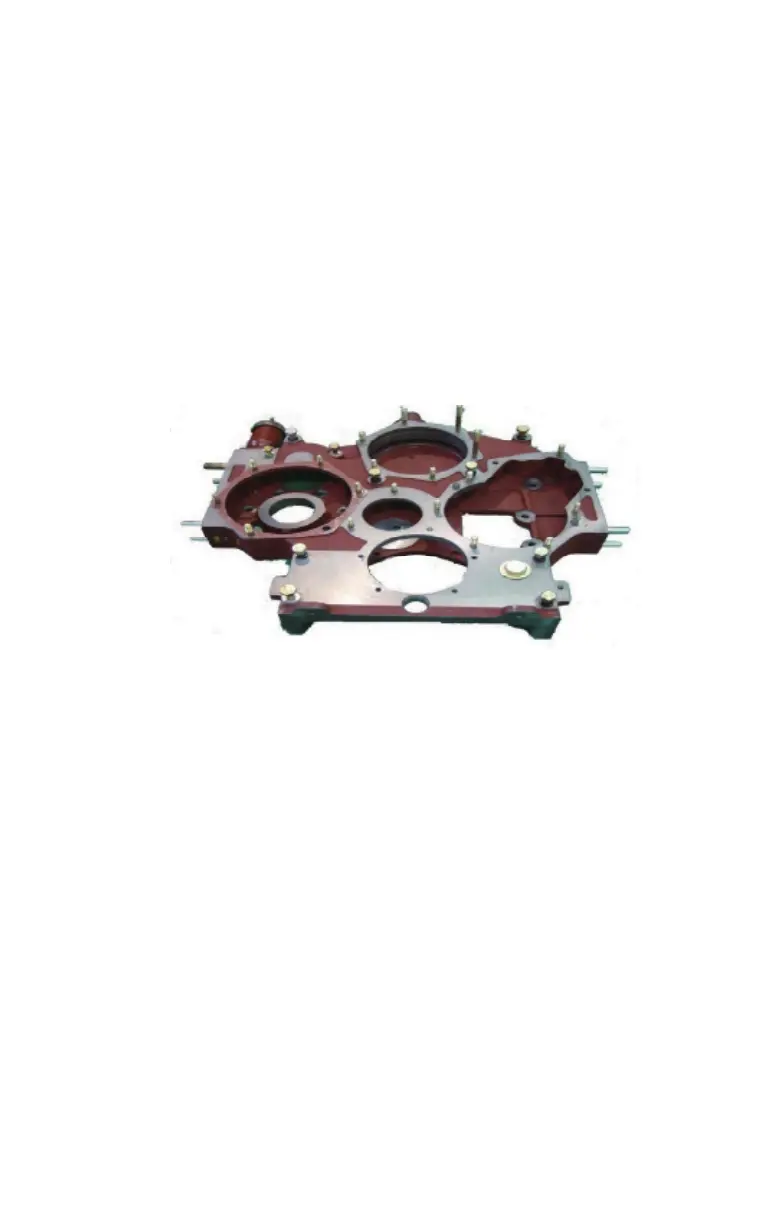

gear housing, insert hexagonal bolts with gaskets and tighten them.
The level of the cover to the left groove.
a. Smear general lithium grease on the shaft.
b. Tightening torque: 60±5 Nm.
c. Turn bolts 90°, and the torque range is 100~125 Nm. Replace
those bolts that not reach required torque range.
