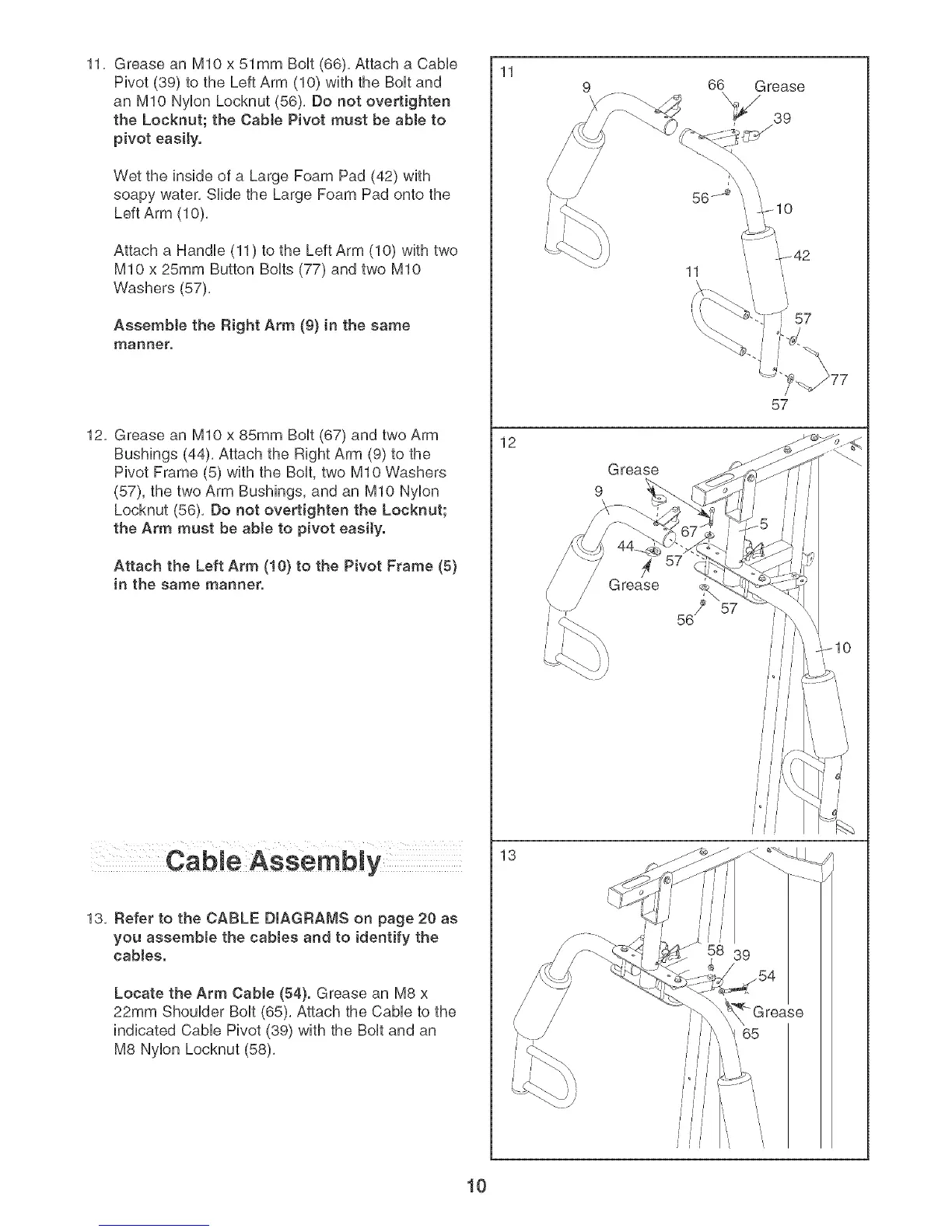

11, Grease an M10 x 51mm BoUt(66), Attach a CaMe
Pivot (39) to the Left Arm (10) with the BoUtand
an M10 NyUonLocknut (56), Do not overtighten
the Locknut; the CabJe Pivot must be able to
pivot easily.
Wet the inside of a Large Foam Pad (42) with
soapy water, SHde the Large Foam Pad onto the
Left Arm (10),
Attach a HandUe (11) to the Left Arm (10) with two
M10 x 25mm Button BoUts(77) and two M10
Washers (57),
Assemble the Right Arm (9} in the same
manner.
12, Grease an M10 x 85mm BoUt(67) and two Arm
Bushings (44), Attach the Right Arm (9) to the
Pivot Frame (5) with the BoUt,two M10 Washers
(57), the two Arm Bushings, and an M10 NyUon
Locknut (56), Do not overtighten the Locknut;
the Arm must be able to pivot easily.
Attach the Left Arm (10) to the Pivot Frame (5)
in the same manner.
13, Refer to the CABLE DIAGRAMS on page 20 as
you assemble the cables and to identify the
cables.
Locate the Arm Cable (54). Grease an M8 x
22mm ShouUder BoUt(65), Attach the CaMe to the
indicated CaMe Pivot (39) with the BoUtand an
M8 Nybn Locknut (58),
