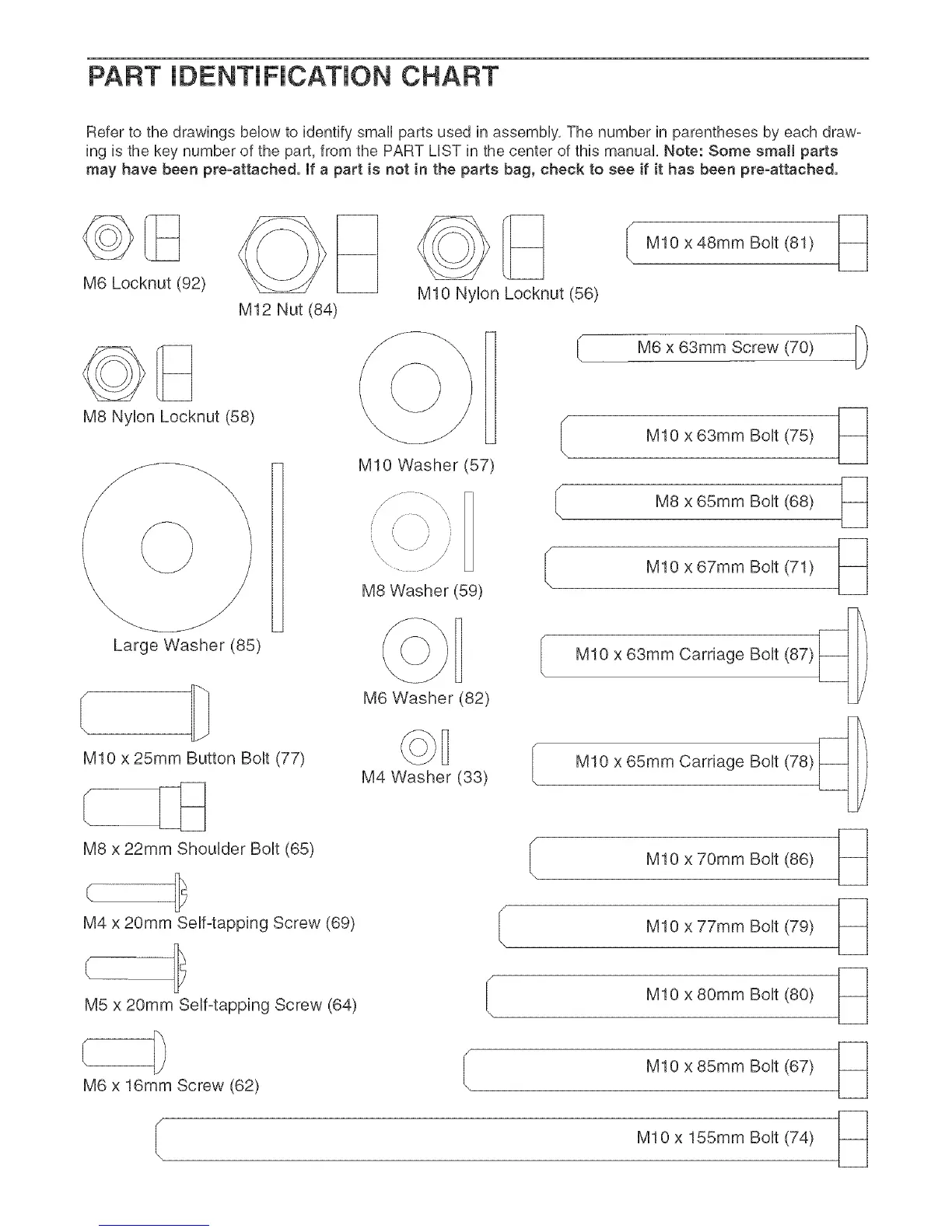

PART iDENTiFiCATiON CHART
Refer to the drawings below to identify small parts used in assembly, The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST in the center of this manual, Note: Some small parts
may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.
M6 Locknut (92)
OF
M12 Nut (84)
M8 Nylon Locknut (58)
\
Large Washer (85)
M10 x 25ram Button Bolt (77)
(
M8 x 22ram Shoulder Bolt (65)
M4 x 20ram Self4apping Screw (69)
M5 x 20ram Self-tapping Screw (64)
(
M6 x 16ram Screw (62)
M10 Nylon Locknut (56)
l M10x48mmBolt(81)
M10 Washer (57)
• ./
M8 Washer (59)
B
M6 Washer (82)
M4 Washer (33)
M6 x 63ram Screw (70)
M10 x 63ram Bolt (75)
I M8 x 65ram Bolt (68) __j
M10 x 67ram Bolt (71)
M10 x 63mm Carriage Bolt (87) _l/
U/
M10 x 65ram Carriage Bolt (78)_ /
r_
LY
I M10 x 70ram Bolt (86)
M10 x 77ram Bolt (79)
!. M10xB0mmBo,t(80) _
(
M10 x 85ram Bolt (67)
M10 x 155mm Bolt (74)
