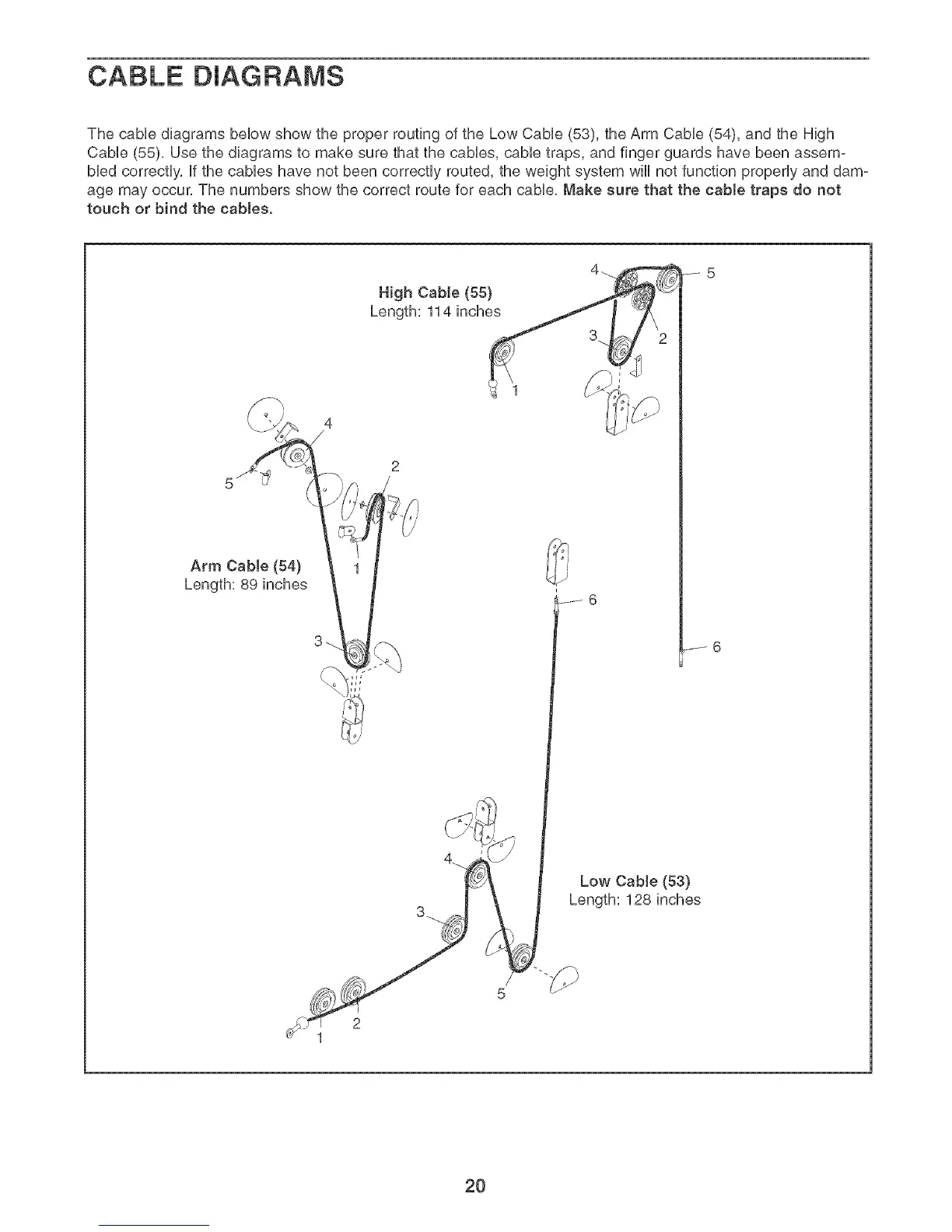

CABLE DIAGRAMS
The came diagrams beUowshow the proper routing of the Low CaMe (53), the Arm CaMe (54), and the High
CaMe (55), Use the diagrams to make sure that the caMes, came traps, and finger guards have been assem-
Med correctly, Ufthe caMes have not been correctly routed, the weight system wHUnot function properUy and dam-
age may occur, The numbers show the correct route for each came, Make sure that the cable traps do not
touch or bind the cables.
Arm Cable (54)
Length: 89 inches
High CabJe (55)
Length: 114 inches
4
3J
Low Cable (53)
Length: 128 inches
2O
To Next Page
