Weider 1200 - Attaching and Removing Seat; Attaching Leg Lever to Low Pulley

16

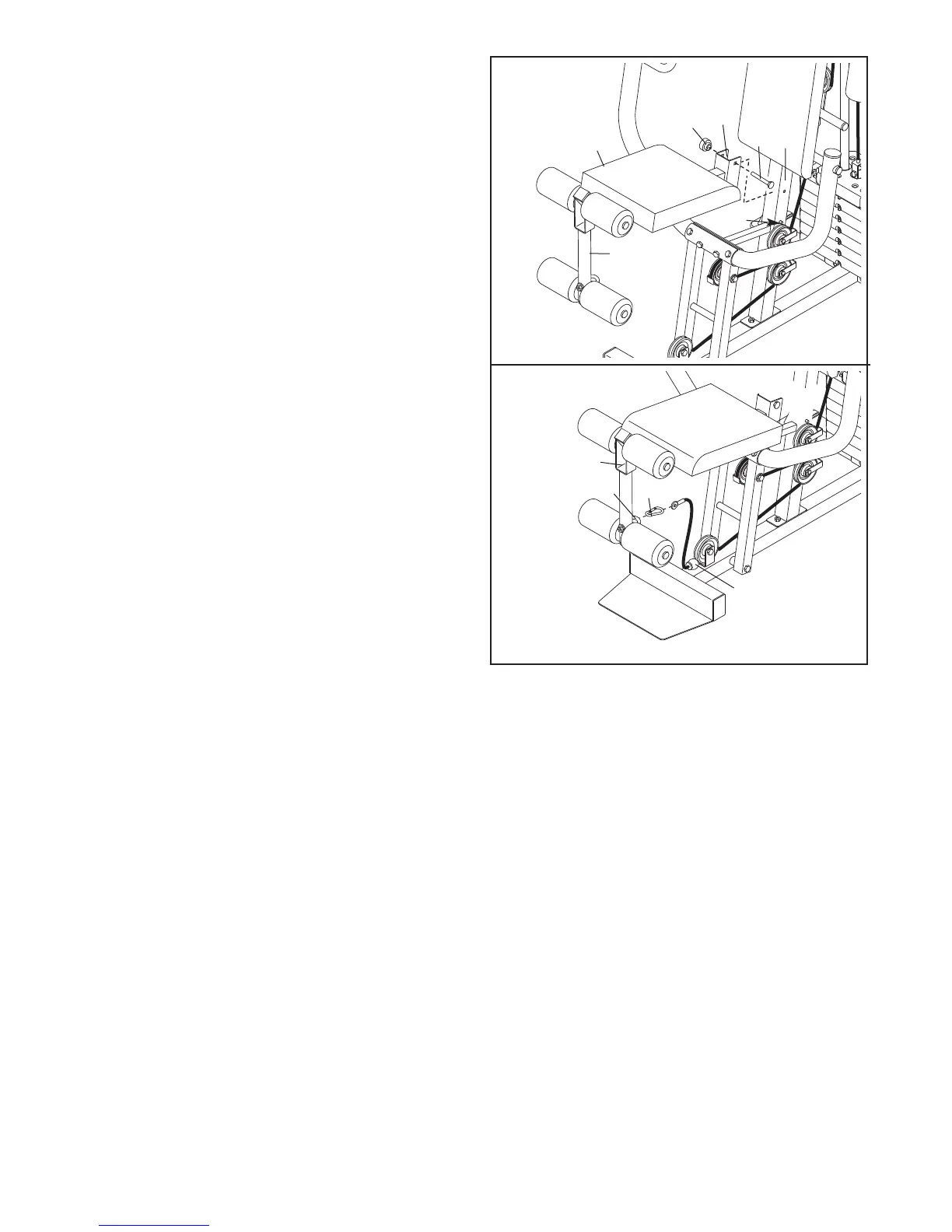

ATTACHING THE LEG LEVER TO THE LOW
PULLEY STATION
To use the Leg Lever (29), the seat must be attached
to the front upright (see ATTACHING AND REMOV-
ING THE SEAT, above).
Remove the Weight Pin (not shown) from the weight
stack. Attach the Short Cable (58) to the Eyebolt (35)
with a Cable Clip (53). Note: The Weight Pin must
also be removed when removing the Short Cable
from the Eyebolt.
53
58
29
35
ATTACHING AND REMOVING THE SEAT
Set the Seat Frame (36) onto the indicated pin on the
F
ront Upright (42). Attach the Seat Frame to the Front
Upright with an M8 x 67mm Carriage Bolt (86) and
t
he Seat Knob (40).
For some exercises, the Seat (13) must be removed.
First, make sure that the Chain (not shown) is not
attached to the Leg Lever (29). Next, remove the
Seat Knob (40) and the M8 x 67mm Carriage Bolt
(86) from the Seat Frame (36). Lift the Seat Frame off
the Front Upright (42).
40
36
42
Pin
13
29
86
