Weider 1200 - Seat Assembly

13
18
23
B
racket
15
83
21
20
41
10
10
43
43
23
3
72
63
8
3
67
42
19

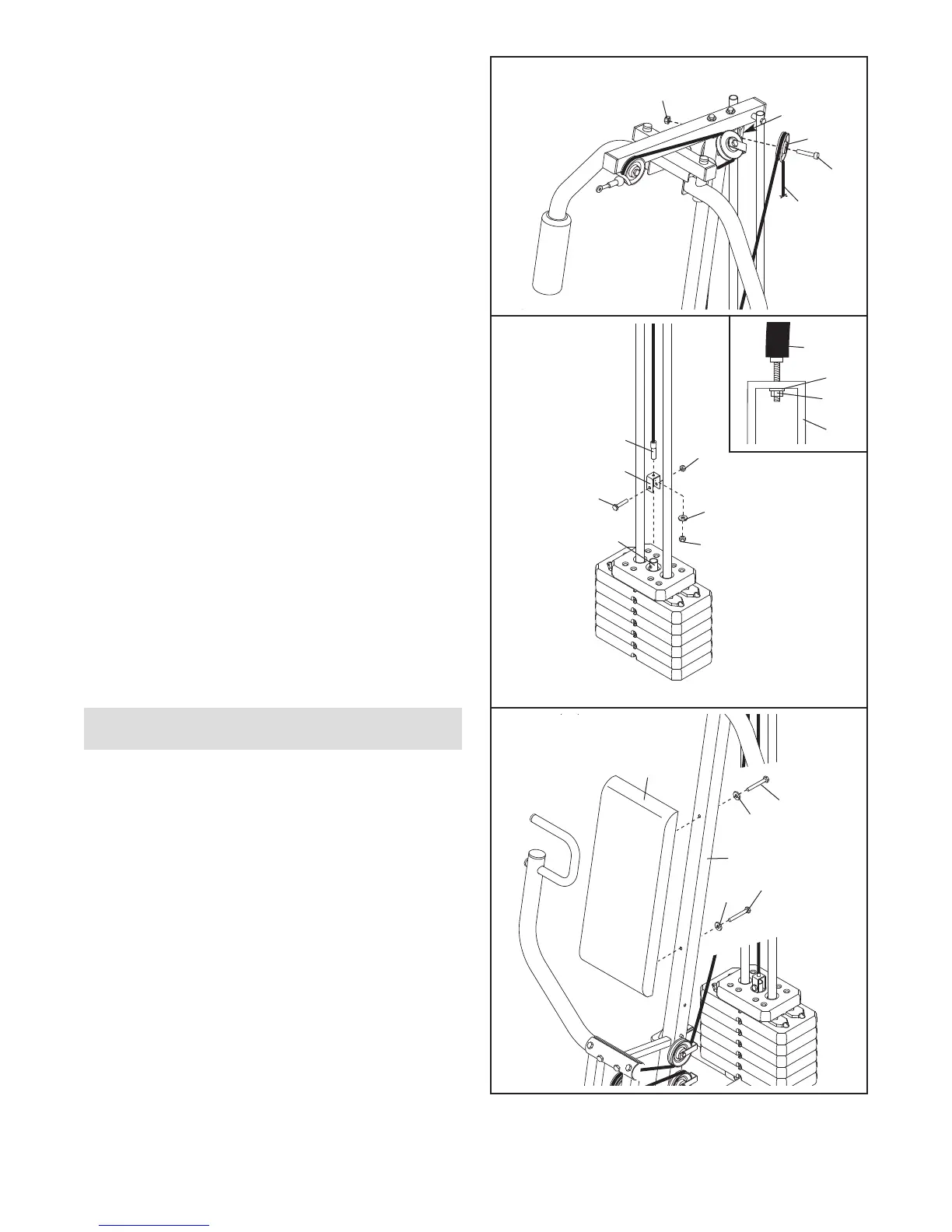

18. Route the Long Cable (23) over the 90mm Pulley
(15). Tighten the M10 x 45mm Bolt (83) and the
M10 Nylon Locknut (21).
19. Attach the Long Cable (23) to the Small “U”-
bracket (67) with an M8 Nylon Locknut (3) and an
M8 Washer (8).
See the inset drawing. Do not
overtighten the Nylon Locknut; it should be
threaded onto the end of the Cable so that
two threads are showing past the Nylon
Locknut.
Attach the Small “U”-bracket (67) to the Weight
Tube (63) with an M8 x 45mm Bolt (72) and an
M8 Nylon Locknut (3).
23
67
3
20. Attach the Backrest (41) to the Front Upright (42)
with two M6 x 65mm Screws (43) and two M6
Washers (10).
Seat Assembly
8
