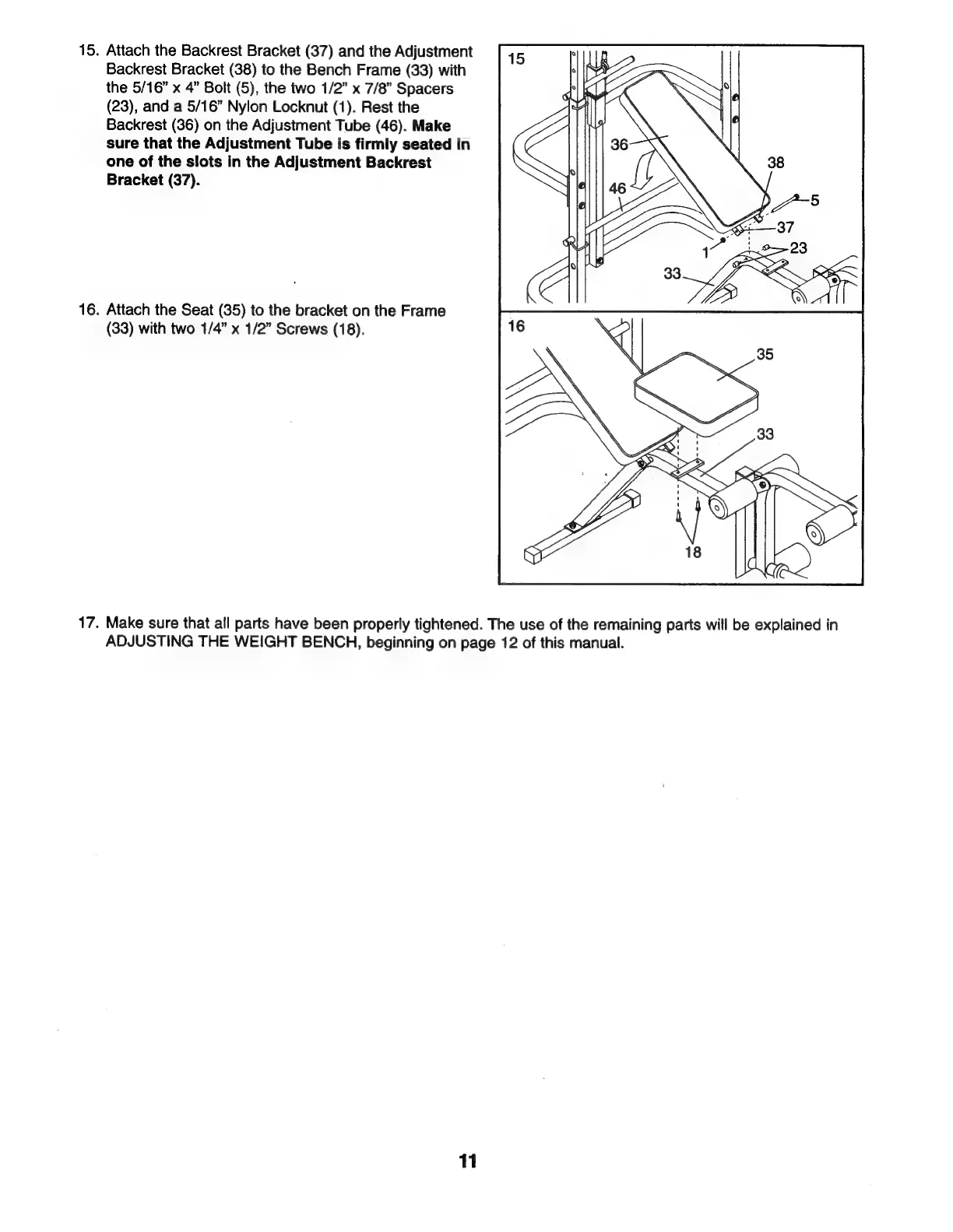

15.
Attach
the
Backrest
Bracket
(37)
and
the
Adjustment
Backrest
Bracket
(38)
to
the
Bench Frame
(33)
with
the
5/16”
x
4”
Bolt
(5),
the
two
1/2”
x
7/8”
Spacers
(23),
and
a
5/16”
Nylon
Locknut
(1).
Rest
the
Backrest
(36)
on
the
Adjustment
Tube
(46).
Make
sure
that
the
Adjustment
Tube
is
firmly
seated
in
one
of
the
slots
in
the
Adjustment
Backrest
Bracket
(37).
16.
Attach
the
Seat
(35)
to
the
bracket
on
the
Frame
(33)
with
two
1/4”
x
1/2”
Screws
(18).
17.
Make
sure
that
all
parts
have
been
properly
tightened.
The
use
of
the
remaining
parts
will
be
explained
in
ADJUSTING
THE
WEIGHT
BENCH,
beginning
on
page
12
of
this
manual.
11
