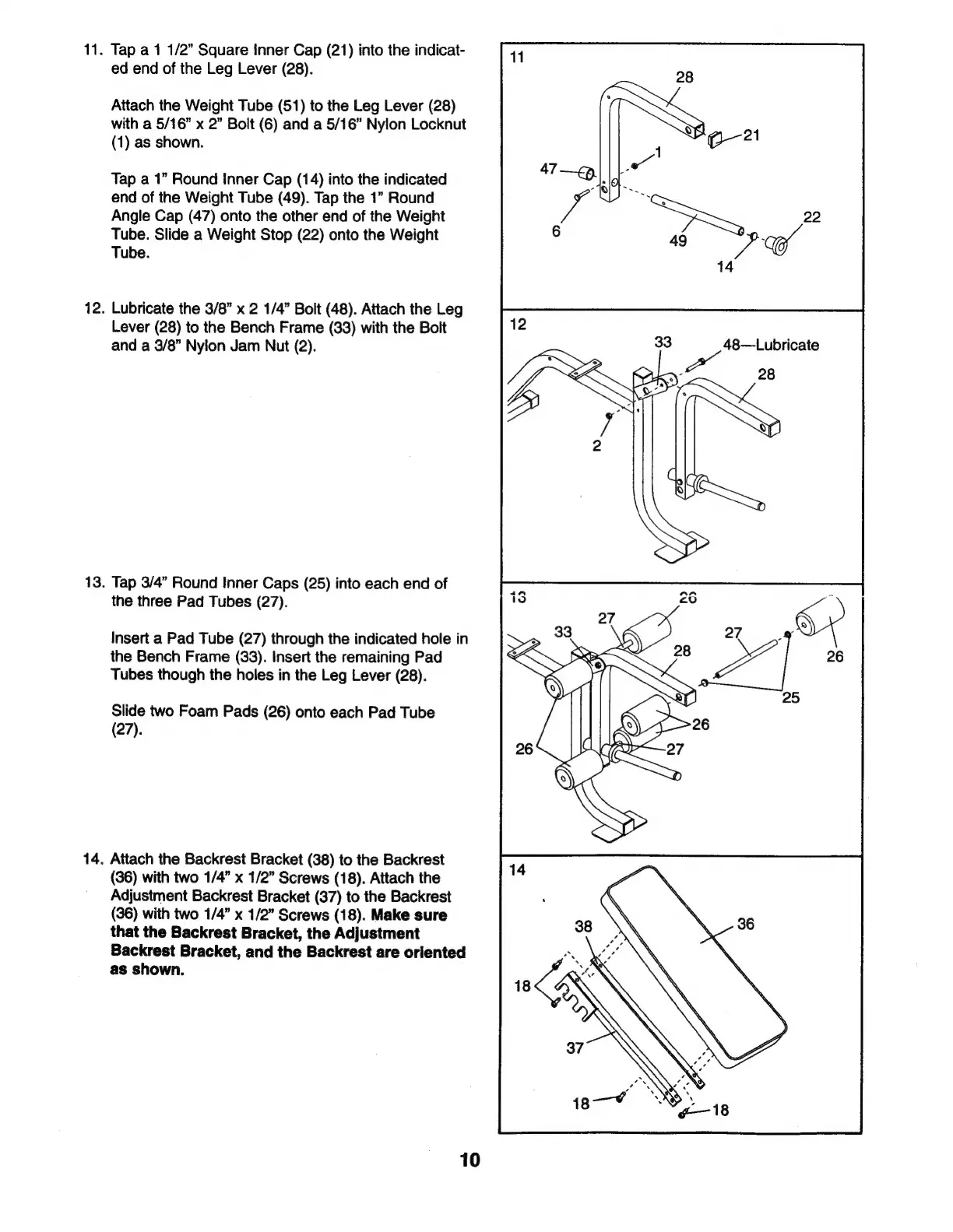

11.
12.
13.
14.
Tap
a
1
1/2”
Square
Inner
Cap
(21)
into
the
indicat-
ed
end
of
the
Leg
Lever
(28).
Attach
the
Weight
Tube
(51)
to
the
Leg
Lever
(28)
with
a
5/16”
x
2”
Bolt
(6)
and
a
5/16”
Nylon
Locknut
(1)
as
shown.
Tap
a
1”
Round
Inner
Cap
(14)
into
the
indicated
end
of
the
Weight
Tube
(49).
Tap
the
1”
Round
Angle
Cap
(47)
onto
the
other
end
of
the
Weight
Tube.
Slide
a
Weight
Stop
(22)
onto
the
Weight
Tube.
Lubricate
the
3/8”
x
2
1/4”
Bolt
(48).
Attach
the
Leg
Lever
(28)
to
the
Bench
Frame
(33)
with
the
Bolt
and
a
3/8”
Nylon
Jam
Nut
(2).
Tap
3/4”
Round
Inner
Caps
(25)
into
each
end
of
the
three
Pad
Tubes
(27).
Insert
a
Pad
Tube
(27)
through
the
indicated
hole
in
the
Bench
Frame
(33).
Insert
the
remaining
Pad
Tubes
though
the
holes
in
the
Leg
Lever
(28).
Slide
two
Foam
Pads
(26)
onto
each
Pad
Tube
(27).
Attach
the
Backrest
Bracket
(38)
to
the
Backrest
(36)
with
two
1/4”
x
1/2”
Screws
(18).
Attach
the
Adjustment
Backrest
Bracket
(37)
to
the
Backrest
(36)
with
two
1/4”
x
1/2”
Screws
(18).
Make
sure
that
the
Backrest
Bracket,
the
Adjustment
Backrest
Bracket,
and
the
Backrest
are
oriented
as
shown.
10
