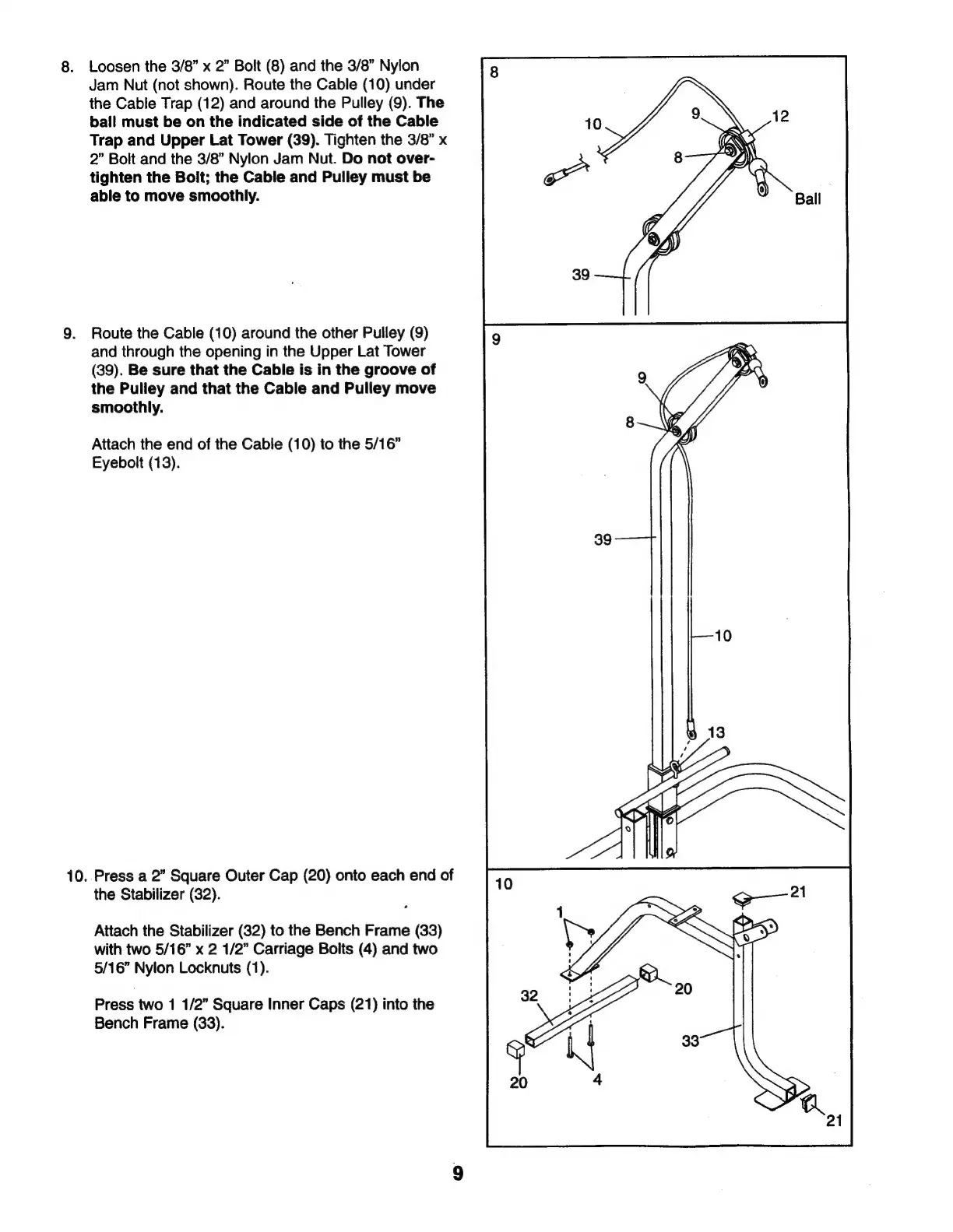

8.
Loosen
the
3/8”
x
2”
Bolt
(8)
and
the
3/8”
Nylon
Jam
Nut
(not
shown).
Route
the
Cable
(10)
under
the
Cable
Trap
(12)
and
around
the
Pulley
(9).
The
ball
must
be
on
the
indicated
side
of
the
Cable
Trap
and
Upper
Lat
Tower
(39).
Tighten
the
3/8”
x
2”
Bolt
and
the
3/8”
Nylon
Jam
Nut.
Do
not
over-
tighten
the
Bolt;
the
Cable
and
Pulley
must
be
able
to
move
smoothly.
9.
Route
the
Cable
(10)
around
the
other
Pulley
(9)
and
through
the
opening
in
the
Upper
Lat
Tower
(39).
Be
sure
that
the
Cable
is
in
the
groove
of
the
Pulley
and
that
the
Cable
and
Pulley
move
smoothly.
Attach
the
end
of
the
Cable
(10)
to
the
5/16”
Eyebolt
(13).
10.
Press
a
2”
Square
Outer
Cap
(20)
onto
each
end
of
the
Stabilizer
(32).
Attach
the
Stabilizer
(32)
to
the
Bench
Frame
(33)
with
two
5/16”
x
2
1/2”
Carriage
Bolts
(4)
and
two
5/16”
Nylon
Locknuts
(1).
Press
two
1
1/2”
Square
Inner
Caps
(21)
into
the
Bench
Frame
(33).
