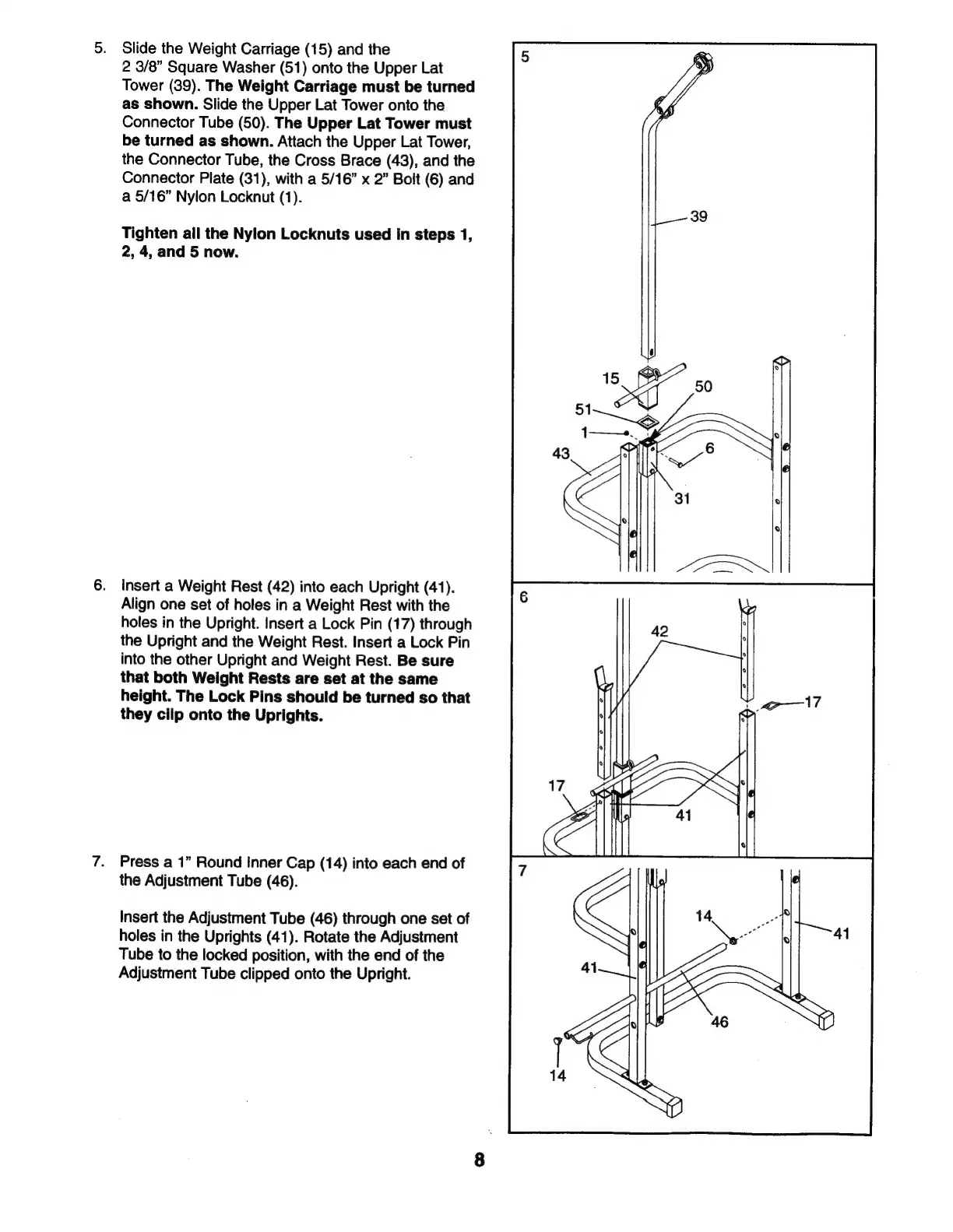

5. Slide the Weight Carriage (15) and the
2 3/8” Square Washer (51) onto the Upper Lat
Tower (39). The Weight Carriage must be turned
as shown. Slide the Upper Lat Tower onto the
Connector Tube (50). The Upper Lat Tower must
be turned as shown. Attach the Upper Lat Tower,
the Connector Tube, the Cross Brace (43), and the
Connector Plate (31), with a 5/16” x 2” Bolt (6) and
a 5/16” Nylon Locknut (1).
Tighten all the Nylon Locknuts used in steps 1,
2, 4, and 5 now.
6. Insert a Weight Rest (42) into each Upright (41).
Align one set of holes in a Weight Rest with the
holes in the Upright. Insert a Lock Pin (17) through
the Upright and the Weight Rest. Insert a Lock Pin
into the other Upright and Weight Rest. Be sure
that both Weight Rests are set at the same
height. The Lock Pins should be turned so that
they cilp onto the Uprights.
7. Press a 1” Round Inner Cap (14) into each end of
the Adjustment Tube (46).
Insert the Adjustment Tube (46) through one set of
holes in the Uprights (41). Rotate the Adjustment
Tube to the locked position, with the end of the
Adjustment Tube clipped onto the Upright.
