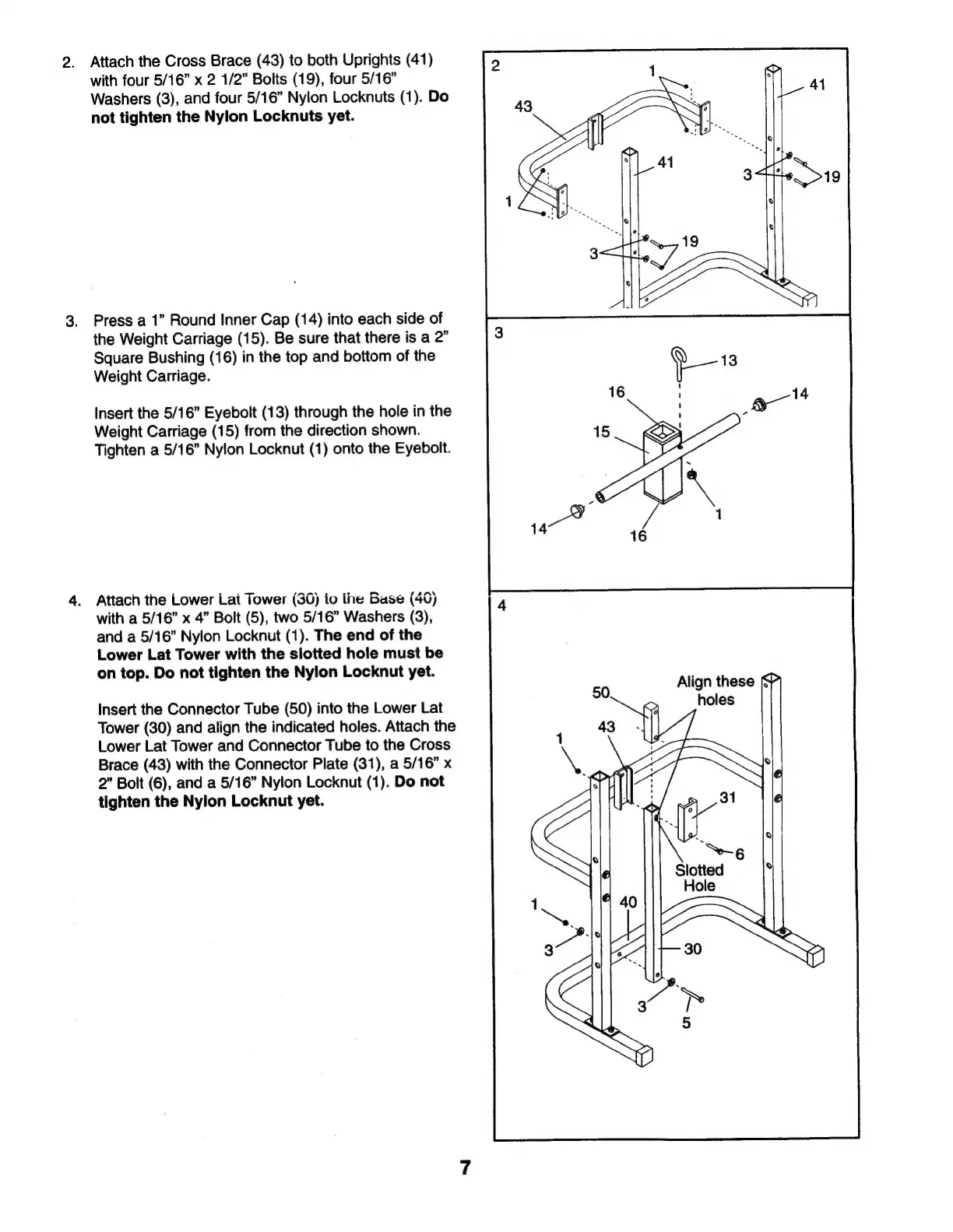

2.
Attach
the
Cross
Brace
(43)
to
both
Uprights
(41)
with
four
5/16”
x
2
1/2”
Bolts
(19),
four
5/16”
Washers
(3),
and
four
5/16”
Nylon
Locknuts
(1).
Do
not
tighten
the
Nylon
Locknuts
yet.
3. Press a 1” Round Inner Cap (14) into each side of
the Weight Carriage (15). Be sure that there is a 2”
Square Bushing (16) in the top and bottom of the
Weight Carriage.
Insert the 5/16” Eyebolt (13) through the hole in the
Weight Carriage (15) from the direction shown.
Tighten a 5/16” Nylon Locknut (1) onto the Eyebolt.
4. Attach the Lower Lat Tower (30) io ihe Base (40)
with a 5/16” x 4” Bolt (5), two 5/16” Washers (3),
and a 5/16” Nylon Locknut (1). The end of the
Lower Lat Tower with the slotted hole must be
on top. Do not tighten the Nylon Locknut yet.
Insert the Connector Tube (50) into the Lower Lat
Tower (30) and align the indicated holes. Attach the
Lower Lat Tower and Connector Tube to the Cross
Brace (43) with the Connector Plate (31), a 5/16” x
2” Bolt (6), and a 5/16” Nylon Locknut (1). Do not
tighten the Nylon Locknut yet.
