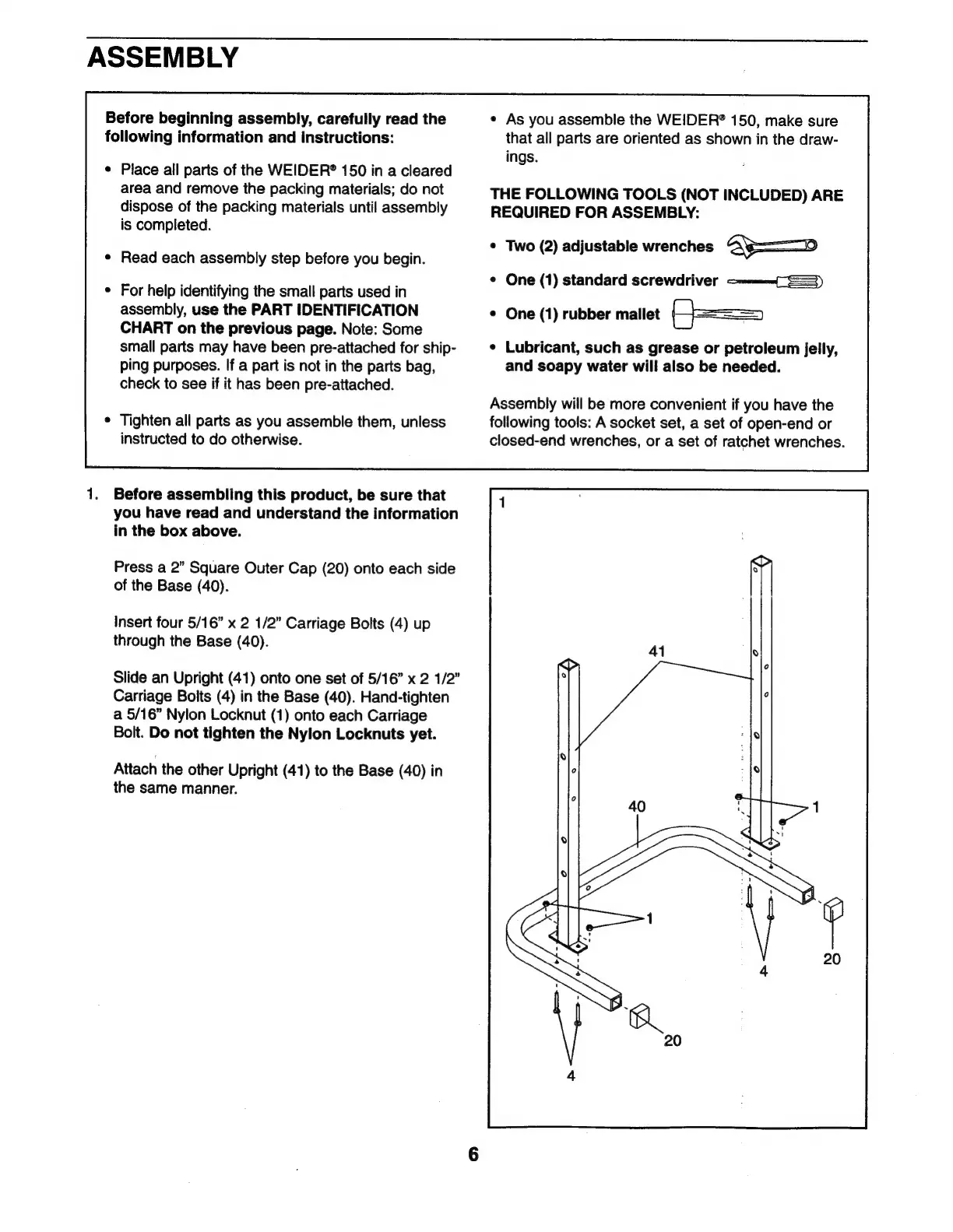

Weider 150 - Page 6

ASSEMBLY
1.
Before beginning assembly, carefully read the
following information and instructions:
e Place all parts of the WEIDER® 150 in a cleared
area and remove the packing materials; do not
dispose of the packing materials until assembly
is completed.
Read each assembly step before you begin.
For help identifying the small parts used in
assembly, use the PART IDENTIFICATION
CHART on the previous page. Note: Some
small parts may have been pre-attached for ship-
ping purposes. If a part is not in the parts bag,
check to see if it has been pre-attached.
e Tighten all parts as you assemble them, unless
instructed to do otherwise.
Before assembling this product, be sure that
you have read and understand the information
in the box above.
Press a 2” Square Outer Cap (20) onto each side
of the Base (40).
Insert four 5/16” x 2 1/2” Carriage Bolts (4) up
through the Base (40).
Slide an Upright (41) onto one set of 5/16” x 2 1/2”
Carriage Bolts (4) in the Base (40). Hand-tighten
a 5/16” Nylon Locknut (1) onto each Carriage
Bolt. Do not tighten the Nylon Locknuts yet.
Attach the other Upright (41) to the Base (40) in
the same manner.
+ As you assemble the WEIDER® 150, make sure
that all parts are oriented as shown in the draw-
ings.
THE FOLLOWING TOOLS (NOT INCLUDED) ARE
REQUIRED FOR ASSEMBLY:
e Two (2) adjustable wrenches SD
e One (1) standard screwdriver == {E
e One (1) rubber mallet (===
¢ Lubricant, such as grease or petroleum jelly,
and soapy water will also be needed.
Assembly will be more convenient if you have the
following tools: A socket set, a set of open-end or
closed-end wrenches, or a set of ratchet wrenches.
