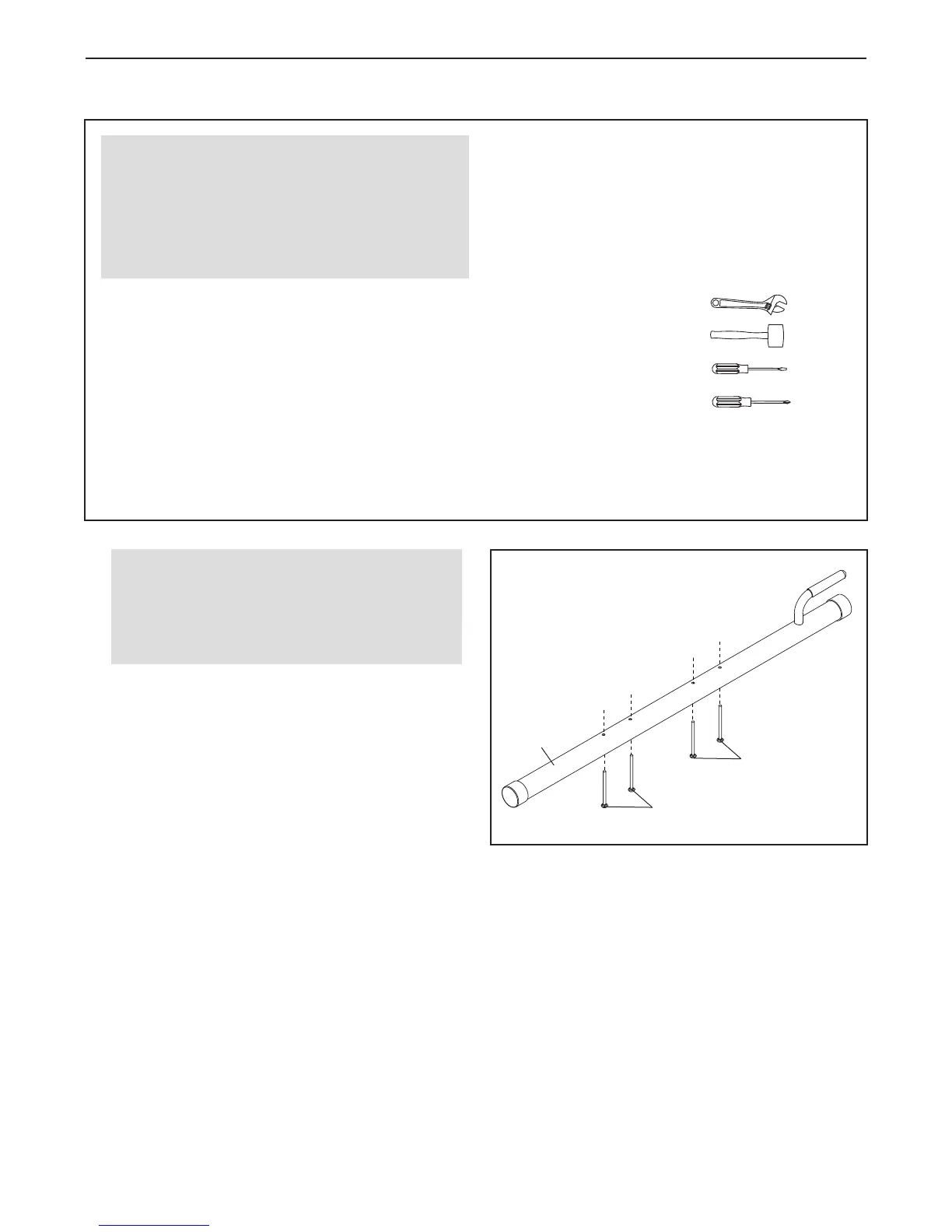

1.
Insert four M8 x 68mm Carriage Bolts (20) up
through a Stabilizer (1).
Repeat this step with the other Stabilizer (not
shown).
Before beginning assembly, make sure that
you understand the information in the box
above. Important: Some of the parts
described in the assembly steps may be
preassembled.
1
20
1
20
Before beginning assembly, carefully read the fol-
lowing information and instructions:
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• As you assemble the exercise rack, make sure all
parts are oriented as shown in the drawings.
•
To identify small parts, use the PART
IDENTIFICATION CHART on page 5.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• In addition to the included tools, assembly
requires the following tools (not included):
two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
ASSEMBLY
Make Assembly Easier
Everything in this manual is designed to ensure
t
hat the exercise rack can be assembled suc-
cessfully by almost anyone. By setting aside
plenty of time, assembly will go smoothly.
6
To Next Page
