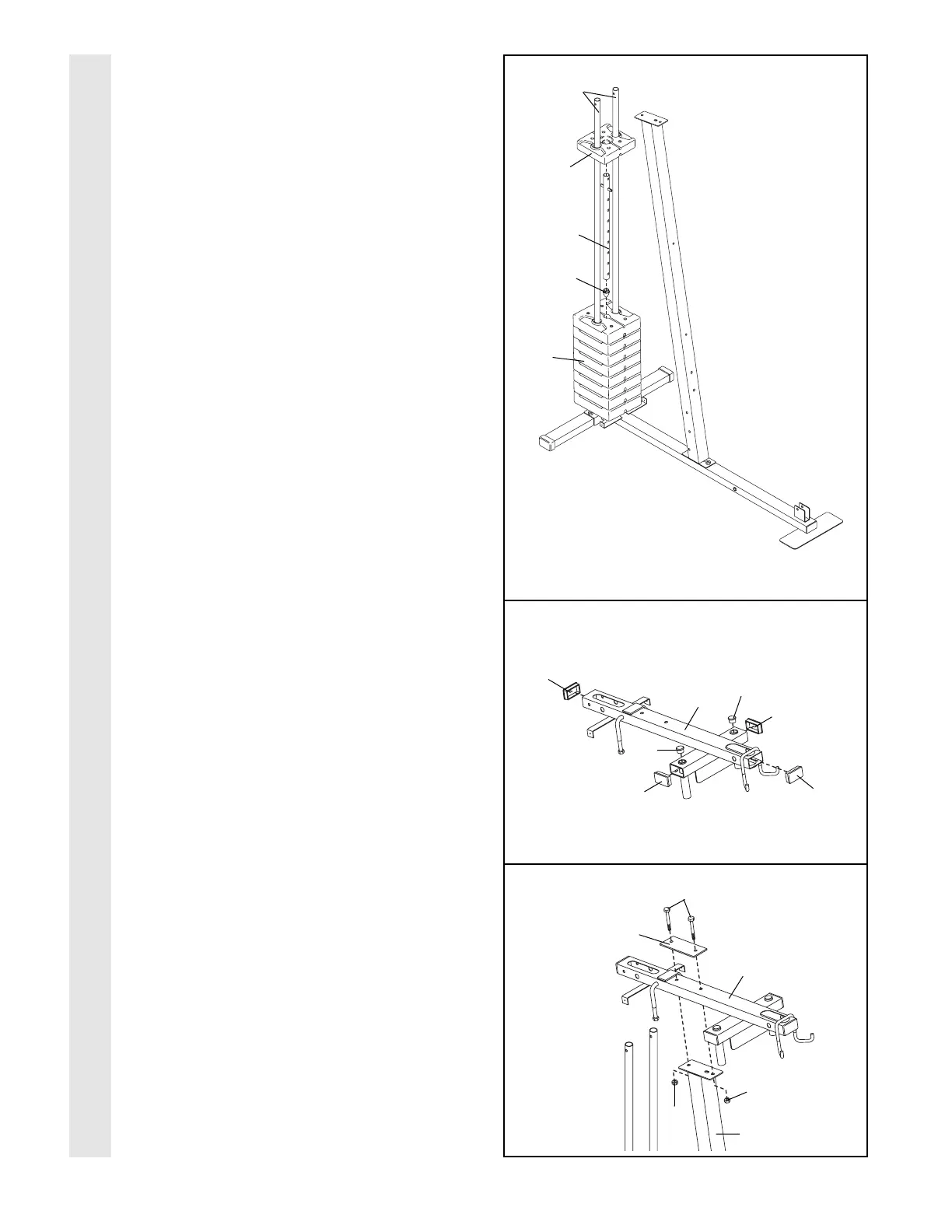

5. Insert the Weight Tube Cap (72) into the indi-
cated end of the Weight Tube (63). Slide the
Weight Tube into the center holes in the
Weights (25). Slide the Top Weight (56) down
onto the Weight Guides (62) as shown.
6. Press four 1 1/2Ó x 2 1/2Ó Inner Caps (27) into
the Top Frame (55) as shown. Press two 1Ó
Inner Caps (10) into the small holes in the
Top Frame.
7. Attach the Top Frame (55) to the Front
Upright (42) using two 3/8Ó x 2 1/2Ó Bolts (7),
a Back Plate (71), and two 3/8Ó Nylon
Locknuts (21). Do not tighten the Nylon
Locknuts yet.
