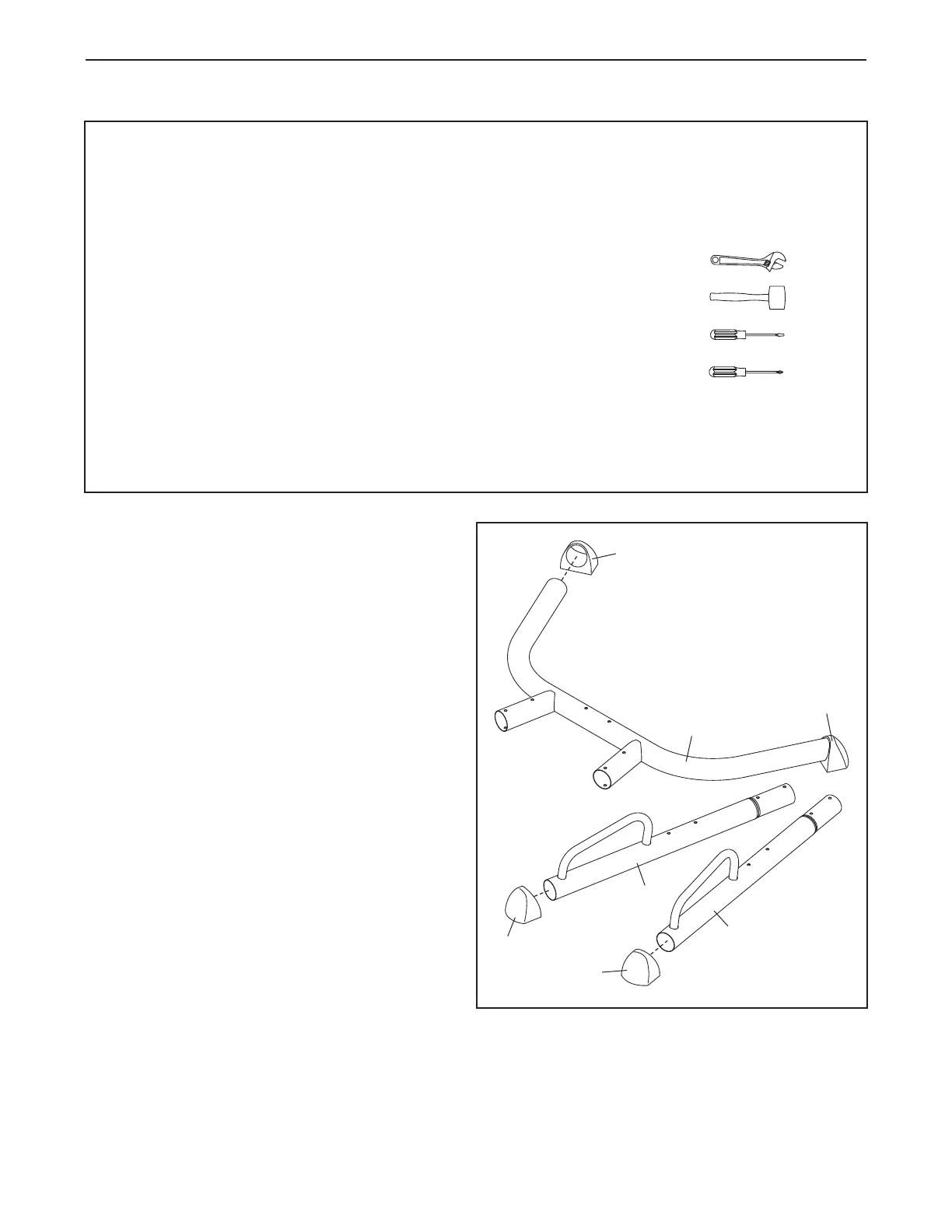

1. Orient the Base (1) and the Base Extensions (2)
as shown.
Press a Base Cap (22) onto each end of the
Base (1). Then, press a Base Cap (22) onto the
indicated end of each Base Extension (2).
1
1
22
22
22
22
2
2
To make assembly easier, carefully read the
following assembly tips:
•
To hire an authorized service technician to
assemble the exercise rack in your home, call
1-800-445-2480.
• Assembly requires two persons.
• Because of its weight and size, the exercise rack
should be assembled in the location where it will
be used. Make sure that there is enough clear-
ance to walk around the exercise rack as you
assemble it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
•
The included grease and the following tools (not
included) may be required for assembly:
two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
ASSEMBLY
