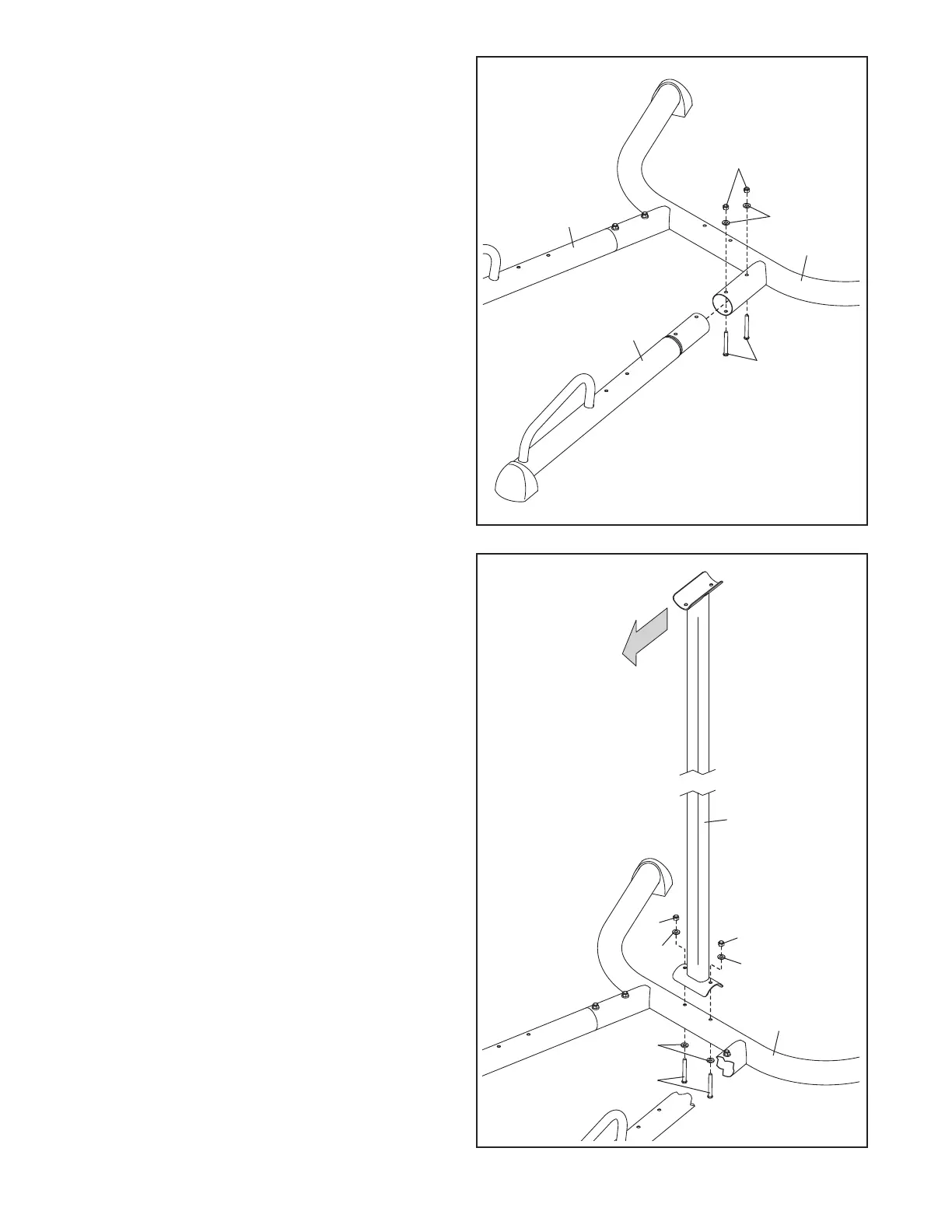

3. Orient the Rear Upright (5) so that the bracket
on the upper end slopes downward in the direc-
tion shown by the arrow.
Attach the Rear Upright (5) to the Base (1) with
two M10 x 95mm Bolts (32), four M10 Curved
Washers (37), and two M10 Locknuts (35). Do
not tighten the Locknuts yet.
2
3
2. Insert a Base Extension (2) into the Base (1).
Attach the Base Extension (2) with two M10 x
85mm Bolts (30), two M10 Curved Washers
(37), and two M10 Locknuts (35). Do not fully
t
ighten the Locknuts yet.
Attach the other Base Extension (2) in the
same way.
2
2
5
35
37
30
35
35
37
32
37
37
