Weider 6900 - Arm Assembly

12

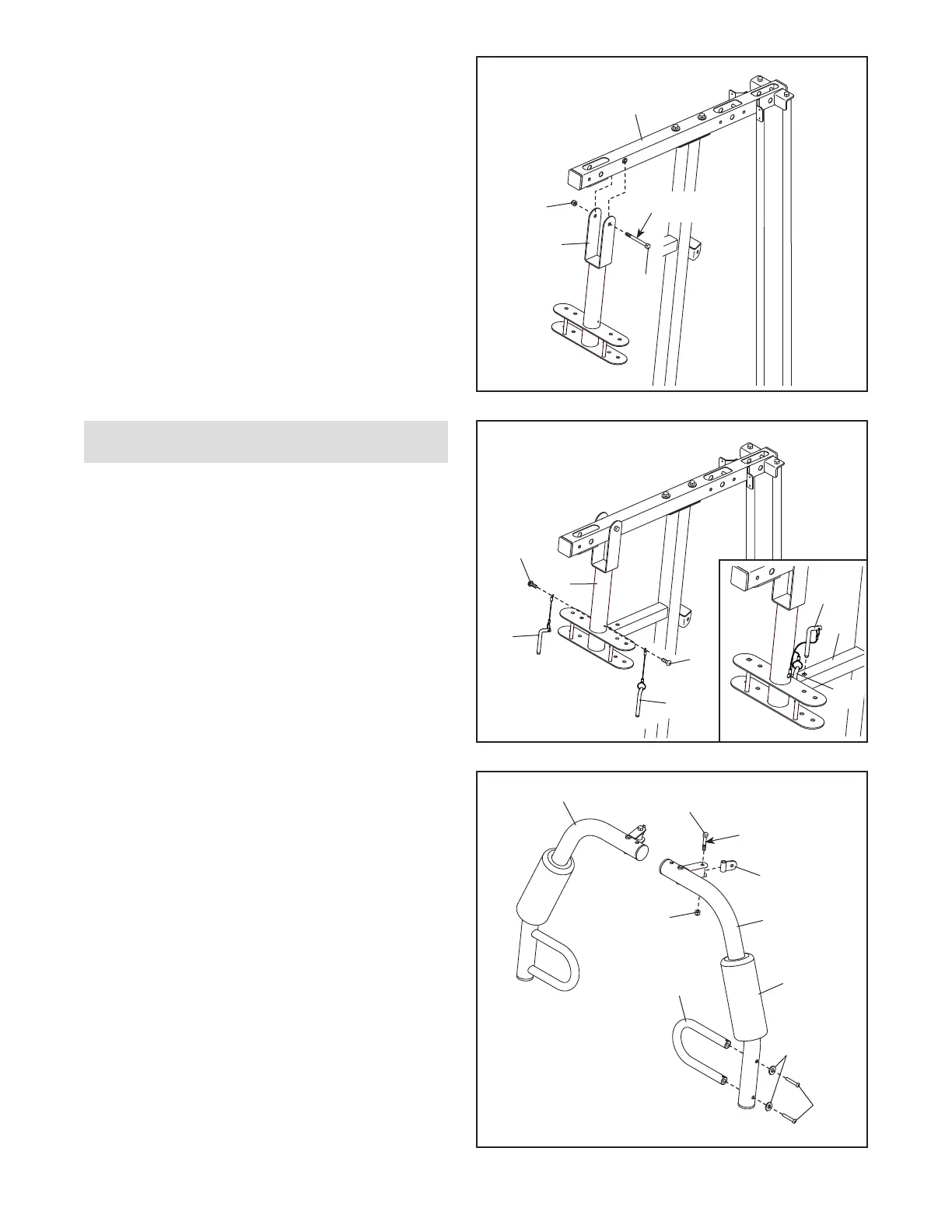

11. Apply grease to an M10 x 77mm Bolt (79).
Attach the Pivot Frame (5) to the Top Frame
(4) with the M10 x 77mm Bolt (79) and an M10
Locknut (56). Do not overtighten the Locknut;
the Pivot Frame must pivot easily.
12
Arm Assembly
12. Attach the two Arm Pins (40) to the Pivot
Frame (5) with two M4.2 x 19mm Self-tapping
Screws (49).
See the inset drawing. Insert the Arm Pins (40)
into the indicated holes in the Upright (3).
5
49
49
40
40
13
11
10
39
57
77
66
56
9
42
Grease
13. Apply grease to an M10 x 50mm Bolt (66).
Attach a Cable Pivot (39) to the Left Arm (10)
with the M10 x 50mm Bolt (66) and an M10
Locknut (56). Do not overtighten the Locknut;
the Cable Pivot must pivot easily.
Next, wet the inside of a Large Foam Pad (42)
with soapy water. Slide the Large Foam Pad
onto the Left Arm (10).
Then, attach a Handle (11) to the Left Arm (10)
with two M10 x 25mm Screws (77) and two M10
Washers (57).
Assemble the Right Arm (9) in the same way.
11
4
5
79
56
Grease
3
40
40
