Weider 6900 - Cable Assembly

13
14

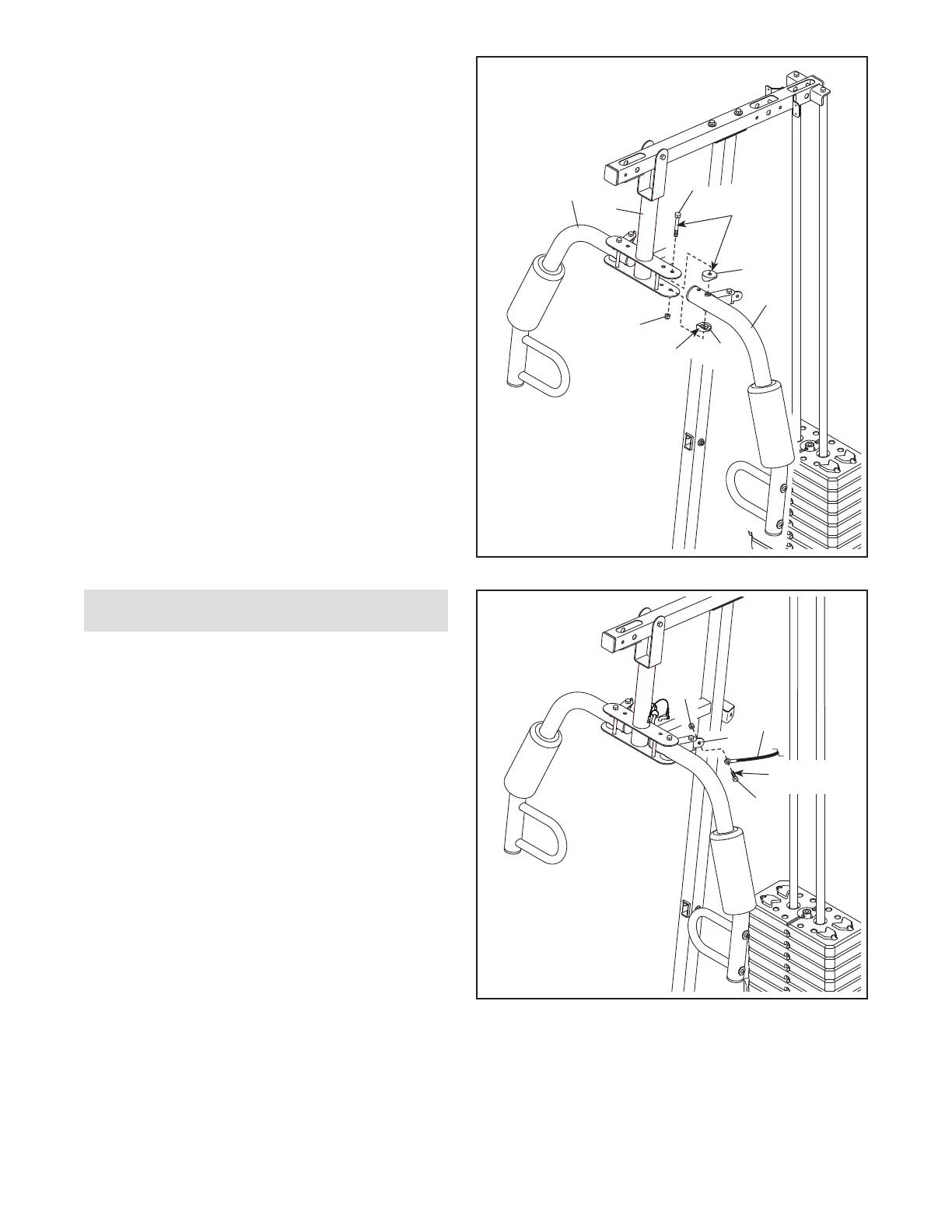

14. Apply grease to an M10 x 80mm Bolt (67) and to
two Arm Bushings (44).
Attach the Left Arm (10) to the Pivot Frame (5)
with the M10 x 80mm Bolt (67), the two Arm
Bushings (44), and an M10 Locknut (56). Do not
overtighten the Locknut; the Left Arm must
pivot easily.
Attach the Right Arm (9) to the Pivot Frame
(5) in the same way.
10
9
44
56
67
5
44
Grease
Grease
15. IMPORTANT: See the CABLE DIAGRAM on
page 26. Cut along the dotted line, and lay
the CABLE DIAGRAM beside this manual for
reference while you assemble the cables and
the pulleys.
Identify the Arm Cable (54).
Apply grease to an M8 x 20mm Shoulder
Bolt (65).
Attach the Arm Cable (54) to the left Cable Pivot
(39) with the M8 x 20mm Shoulder Bolt (65) and
an M8 Locknut (58).
58
65
54
39
15
Cable Assembly
Grease
