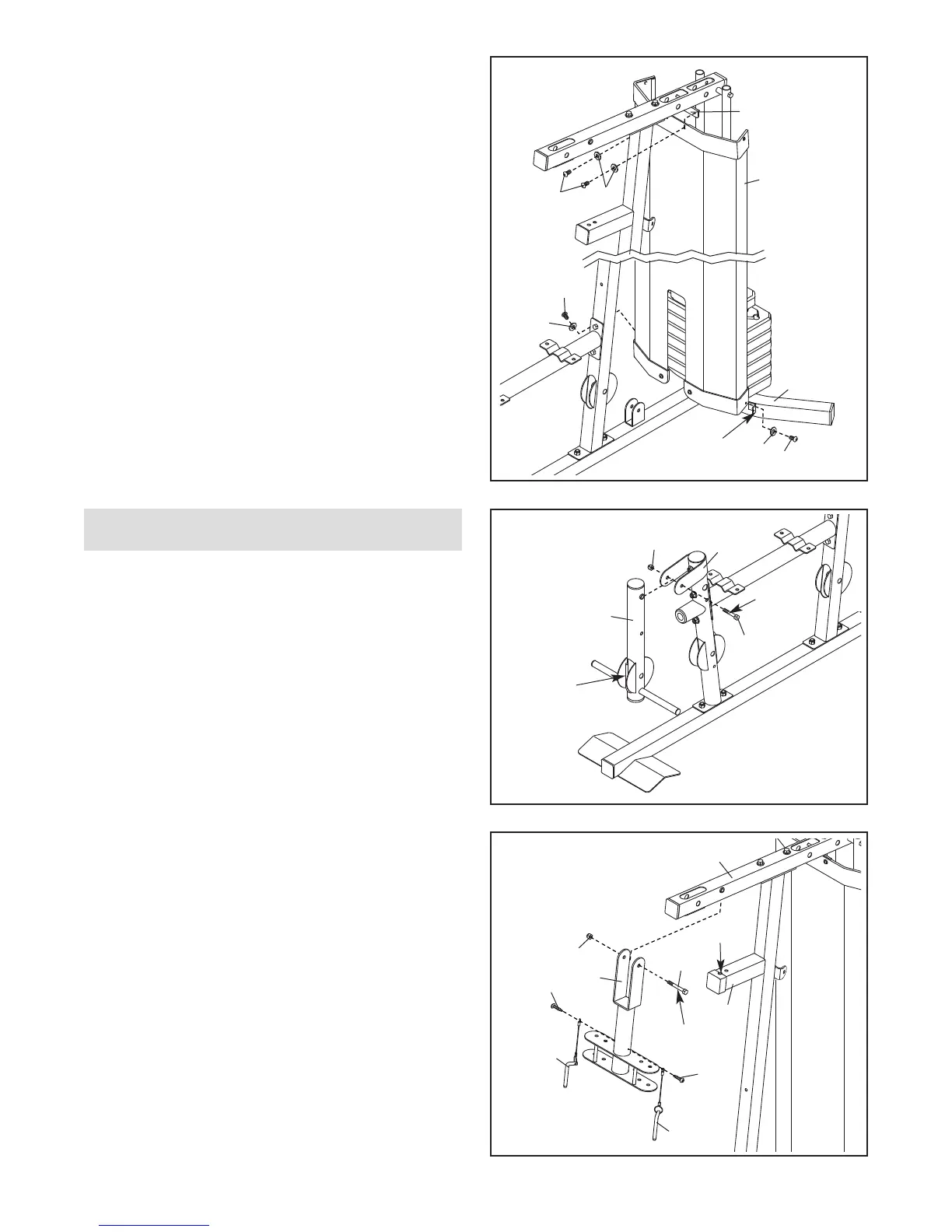

8. Attach the Shroud (17) to the Top Frame (4) with
two M6 x 16mm Screws (62) and two M6
Washers (82). Do not tighten the Screws yet.
Attach the Shroud (17) to the brackets on the
S
tabilizer (2) with two M6 x 16mm Screws (62)
and two M6 Washers (82). Make sure the brack-
ets are inside the Shroud. Tighten the four
Screws used in this step.
9. Grease an M10 x 77mm Bolt (79). Orient the Leg
Lever (8) with the welded support on the side
shown. Attach the Leg Lever to the Front Leg (7)
with the Bolt and an M10 Locknut (56). Do not
overtighten the Locknut; the Leg Lever must
pivot easily.
10. Grease an M10 x 77mm Bolt (79). Attach the
Pivot Frame (5) to the Top Frame (4) with the Bolt
and an M10 Locknut (56). Do not overtighten
the Locknut; the Pivot Frame must pivot easi-
ly.
Attach the two Arm Pins (40) to the Pivot Frame
(5) with two M4 x 20mm Self-tapping Screws
(69). Insert the Arm Pins into the two holes in the
Upright (3).
8
6
2
82
1
7
4
62
62
82
82
Bracket
2
9
56
79
Grease
Welded
Support
7
8
10
Grease
Holes
5
56
79
69
69
3
40
40
4
Arm Assembly
To Next Page
