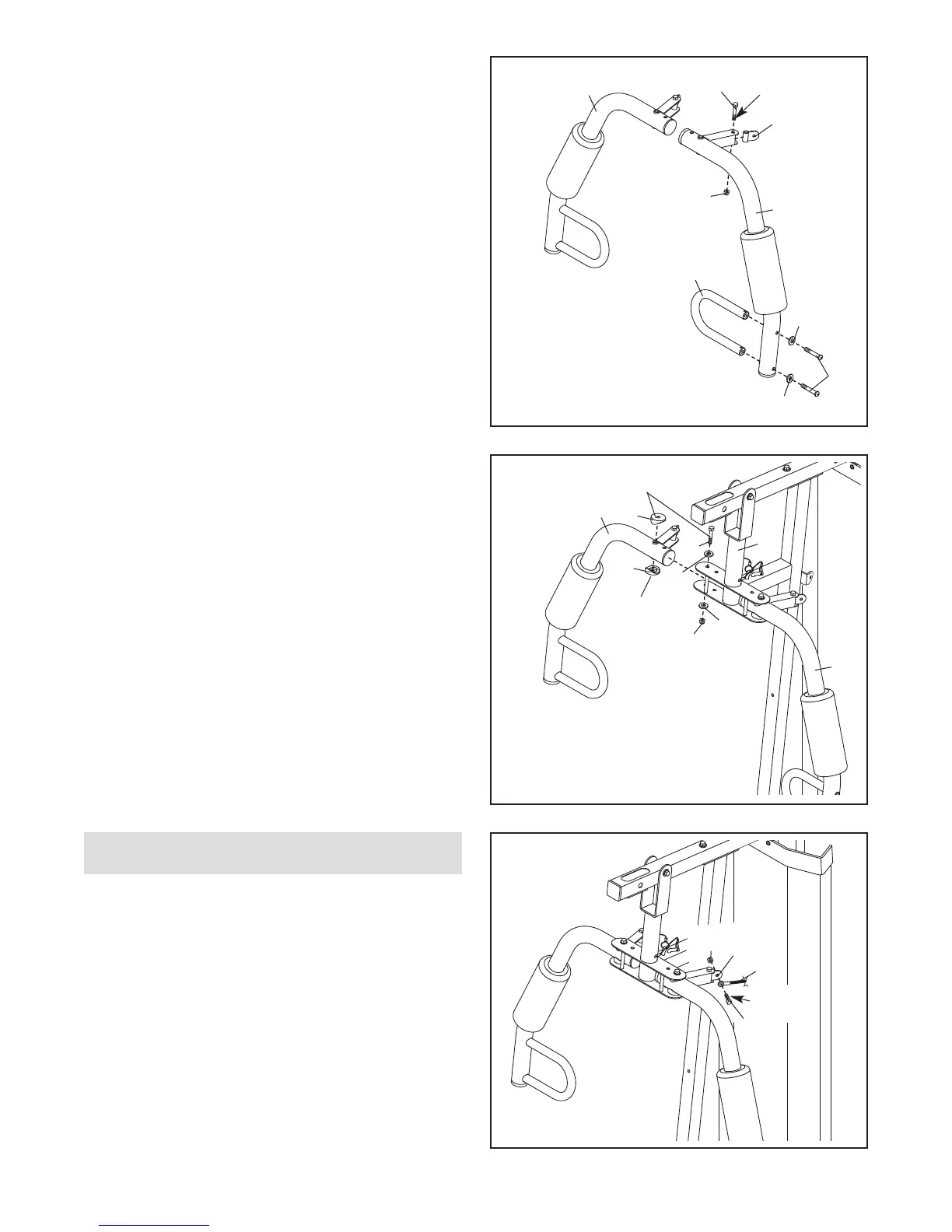

11. Grease an M10 x 51mm Bolt (66). Attach a Cable
Pivot (39) to the Left Arm (10) with the Bolt and
an M10 Locknut (56). Do not overtighten the
L
ocknut; the Cable Pivot must pivot easily.
A
ttach a Handle (11) to the Left Arm (10) with two
M10 x 25mm Button Screws (77) and two M10
Washers (57).
Assemble the Right Arm (9) in the same
manner.
13. See the CABLE DIAGRAM on page 21 to iden-
tify and route the cables.
Identify the Arm Cable (54). Grease an M8 x
22mm Shoulder Bolt (65). Attach the Cable to the
indicated Cable Pivot (39) with the Shoulder Bolt
and an M8 Locknut (58). Make sure that the
cable end can pivot easily on the Shoulder
Bolt.
12. Grease an M10 x 85mm Bolt (67) and two Arm
Bushings (44). Attach the Right Arm (9) to the
Pivot Frame (5) with the Bolt, two M10 Washers
(57), the two Arm Bushings, and an M10 Locknut
(56). Do not overtighten the Locknut; the Right
Arm must pivot easily.
Attach the Left Arm (10) to the Pivot Frame (5)
in the same manner.
Cable Assembly
58
65
54
39
Grease
13
10
9
44
56
57
57
5
67
Grease
Grease
44
12
11
10
39
57
77
57
6
6
56
9
Grease
11
