16

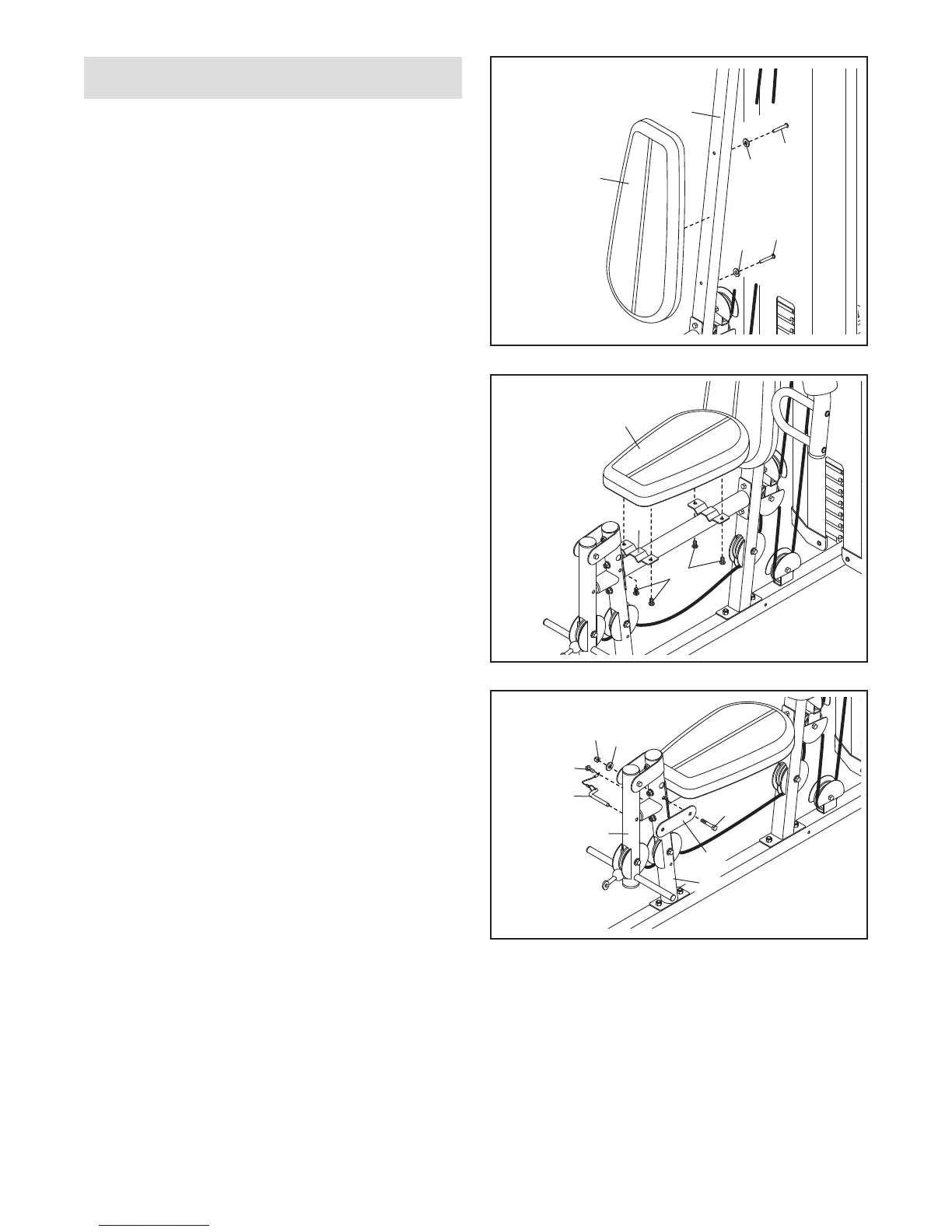

30. Attach the Backrest (16) to the Upright (3) with
t
wo M6 x 63mm Screws (70) and two M6
Washers (82).
31. Attach the Seat (15) to the Seat Frame (6) with
four M6 x 16mm Screws (62) as shown.
Seat Assembly
32. Attach the Lock Plate (73) to the Front Leg (7)
with an M10 x 70mm Bolt (86), an M10 Washer
(57), and an M10 Locknut (56). Do not overtight-
en the Locknut; the Lock Plate must pivot
easily.
Attach the Leg Lever Pin (38) to the Front Leg (7)
with an M4 x 20mm Self-tapping Screw (69).
Insert the Leg Lever Pin through the Leg Lever
(8) and the Lock Plate (73).
70
70
82
82
3
15
62
6
56
57
69
38
86
8
73
7
32
31
16
30
To Next Page
